Model 8642A/B Operation
Modulation, AM (cont'd)

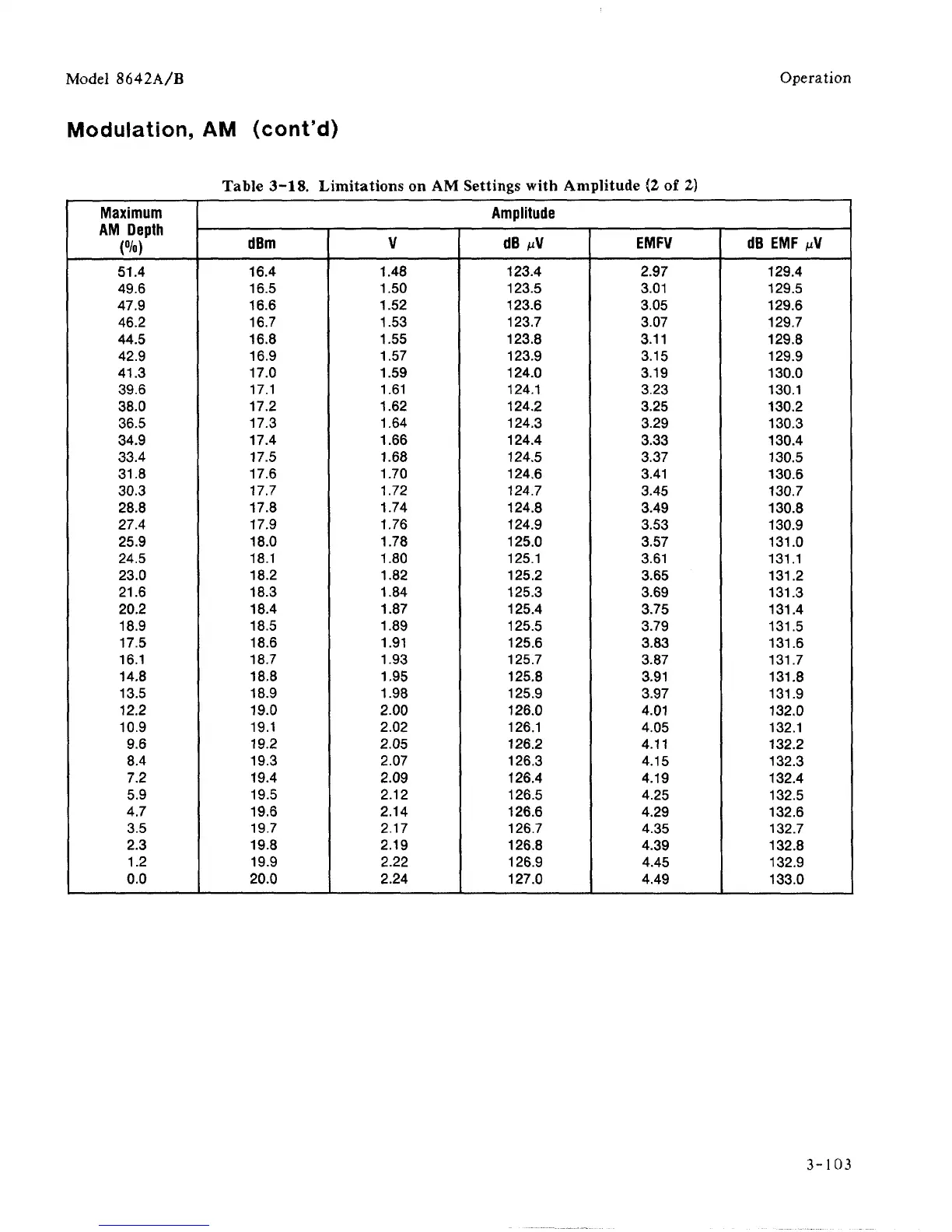

Table 3-18. Limitations on AM Settings with Amplitude {2 of 2)
Maximum
AM Depth
(%)
51.4
49.6
47.9
46.2
44.5
42.9
41.3
39.6
38.0
36.5
34.9
33.4
31.8
30.3
28.8
27.4
25.9
24.5
23.0
21.6
20.2
18.9
17.5
16.1
14.8
13.5
12.2
10.9
9.6
8.4
7.2
5.9
4.7
3.5
2.3
1.2
0.0
Amplitude
dBm
16.4
16.5
16.6
16.7
16.8
16.9
17.0
17.1
17.2
17.3
17.4
17.5
17.6
17.7
17.8
17.9
18.0
18.1
18.2
18.3
18.4
18.5
18.6
18.7
18.8
18.9
19.0
19.1
19.2
19.3
19.4
19.5
19.6
19.7
19.8
19.9
20.0
V
1.48
1.50
1.52
1.53
1.55
1.57
1.59
1.61
1.62
1.64
1.66
1.68
1.70
1.72
1.74
1.76
1.78
1.80
1.82
1.84
1.87
1.89
1.91
1.93
1.95
1.98
2.00
2.02
2.05
2.07
2.09
2.12
2.14
2.17
2.19
2.22
2.24
dB *'V
123.4
123.5
123.6
123.7
123.8
123.9
124.0
124.1
124.2
124.3
124.4
124.5
124.6
124.7
124.8
124.9
125.0
125.1
125.2
125.3
125.4
125.5
125.6
125.7
125.8
125.9
126.0
126.1
126.2
126.3
126.4
126.5
126.6
126.7
126.8
126.9
127.0
EMFV
2.97
3.01
3.05
3.07
3.11
3.15
3.19
3.23
3.25
3.29
3.33
3.37
3.41
3.45
3.49
3.53
3.57
3.61
3.65
3.69
3.75
3.79
3.83
3.87
3.91
3.97
4.01
4.05
4.11
4.15
4.19
4.25
4.29
4.35
4.39
4.45
4.49
dB EMF aV
129.4
129.5
129.6
129.7
129.8
129.9
130.0
130.1
130.2
130.3
130.4
130.5
130.6
130.7
130.8
130.9
131.0
131.1
131.2
131.3
131.4
131.5
131.6
131.7
131.8
131.9
132.0
132.1
132.2
132.3
132.4
132.5
132.6
132.7
132.8
132.9
133.0
3-103
