Model 8642A/B
Performance Tests

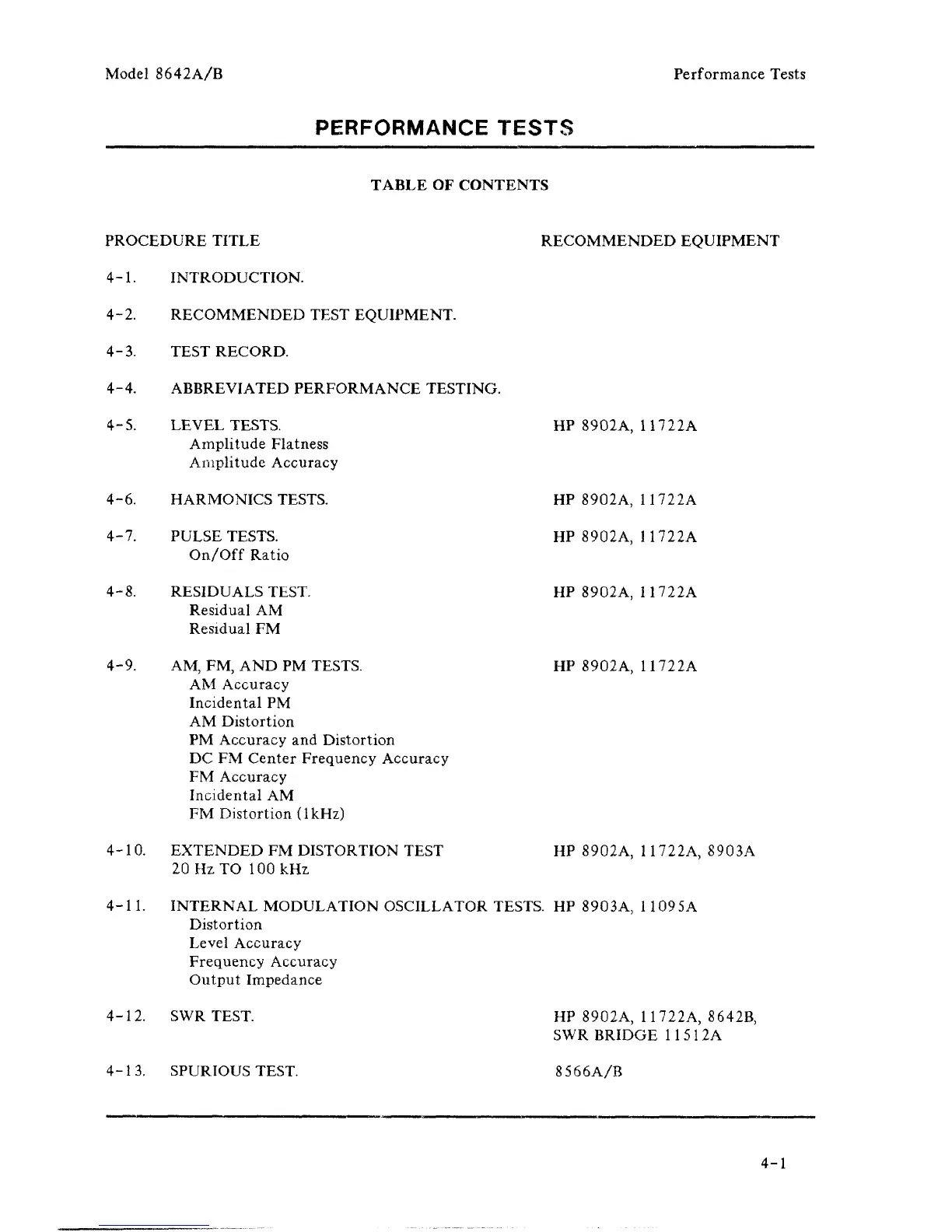

PERFORMANCE TESTS
TABLE OF CONTENTS
PROCEDURE TITLE
4-1. INTRODUCTION.
4-2. RECOMMENDED TEST EQUIPMENT.
TEST RECORD.
ABBREVIATED PERFORMANCE TESTING.
RECOMMENDED EQUIPMENT
4-3.
4-4.
4-5.
4-6.
4-7.
LEVEL TESTS.
Amplitude Flatness
Amplitude Accuracy
HARMONICS TESTS.
PULSE TESTS.
On/Off Ratio
4-8. RESIDUALS TEST.
Residual AM
Residual FM
4-9. AM, FM, AND PM TESTS.
AM Accuracy
Incidental PM
AM Distortion
PM Accuracy and Distortion
DC FM Center Frequency Accuracy
FM Accuracy
Incidental AM
FM Distortion (1 kHz)
4-10. EXTENDED FM DISTORTION TEST
20 Hz TO 100 kHz
HP 8902A, 11722A
HP 8902A, 11722A
HP 8902A, 11722A
HP 8902A, 11722A
HP 8902A, 11722A
HP 8902A, 11722A, 8903A
4-11. INTERNAL MODULATION OSCILLATOR TESTS. HP 8903A, 11095A
Distortion
Level Accuracy
Frequency Accuracy
Output Impedance
4-12. SWR TEST.
HP 8902A, 11722A, 8642B,
SWR BRIDGE 11512A
4-13. SPURIOUS TEST.
8566A/B
4-1
