Performance Tests
Model 8642A/B

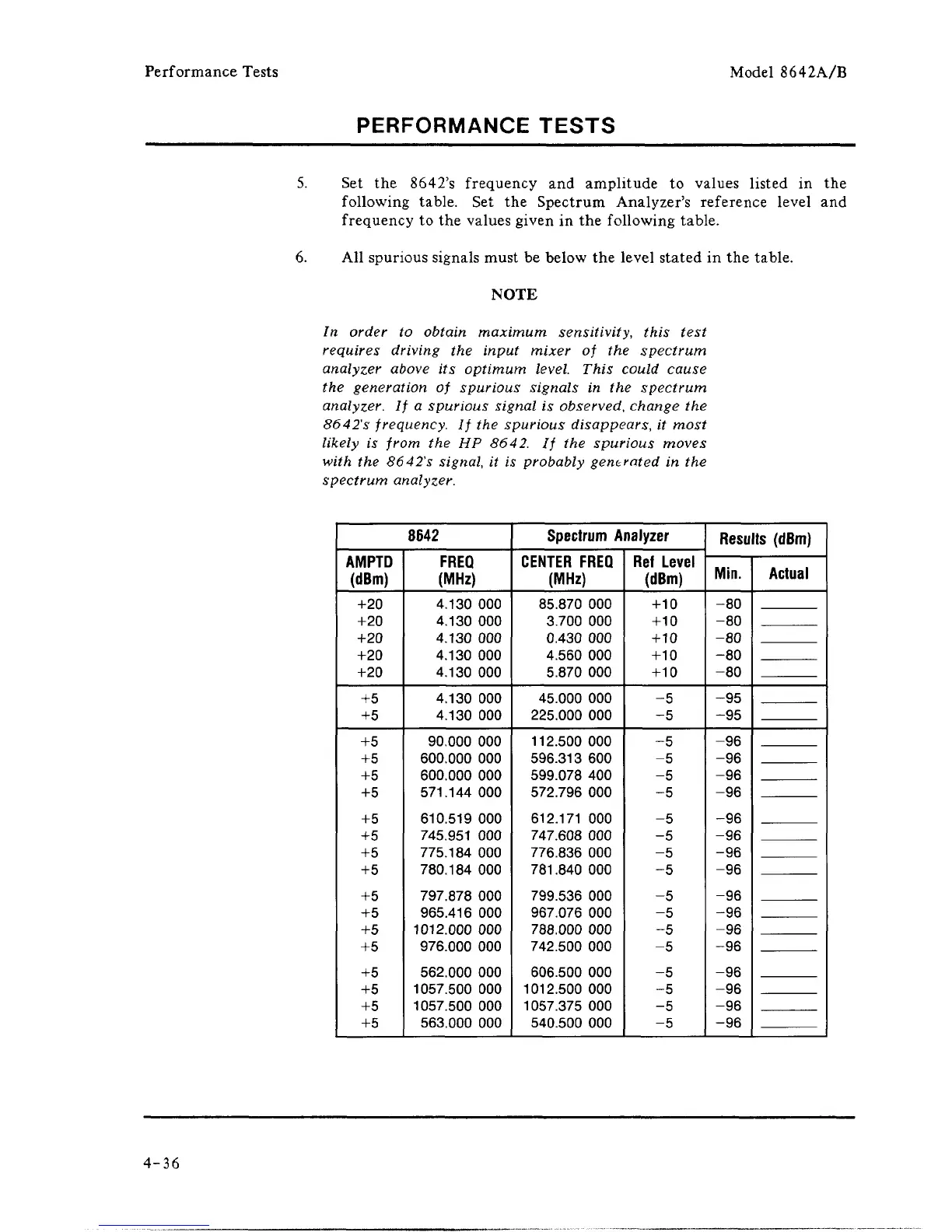

PERFORMANCE TESTS
5. Set the 8642's frequency and amplitude to values listed in the
following table. Set the Spectrum Analyzer's reference level and
frequency to the values given in the following table.
6. All spurious signals must be below the level stated in the table.
NOTE
In order to obtain maximum sensitivity, this test
requires driving the input mixer of the spectrum
analyzer above its optimum level. This could cause
the generation of spurious signals in the spectrum
analyzer. If a spurious signal is observed, change the
8642's frequency. If the spurious disappears, it most
likely is from the HP 8642. If the spurious moves
with the 8642's signal, it is probably gentrated in the
spectrum analyzer.
8642
AMPTD
(dBm)
+20
+20
+20
+20
+20
+5
+5
+5
+5
+5
+5
+5
+5
+5
+5
+5
+5
+5
+5
+5
+5
+5
+5
FREQ
(MHz)
4.130 000
4.130 000
4.130 000
4.130 000
4.130 000
4.130 000
4.130 000
90.000 000
600.000 000
600.000 000
571.144 000
610.519 000
745.951 000
775.184 000
780.184 000
797.878 000
965.416 000
1012.000 000
976.000 000
562.000 000
1057.500 000
1057.500 000
563.000 000
Spectrum Analyzer
CENTER FREQ
(MHz)
85.870 000
3.700 000
0.430 000
4.560 000
5.870 000
45.000 000
225.000 000
112.500 000
596.313 600
599.078 400
572.796 000
612.171 000
747.608 000
776.836 000
781.840 000
799.536 000
967.076 000
788.000 000
742.500 000
606.500 000
1012.500 000
1057.375 000
540.500 000
Ref Level
(dBm)
+10
+10
+10
+10
+10
-5
-5
-5
-5
-5
-5
-5
-5
-5
-5
-5
-5
-5
-5
-5
-5
-5
-5
Results (dBm)
Min.
-80
-80
-80
-80
-80
-95
-95
-96
-96
-96
-96
-96
-96
-96
-96
-96
-96
-96
-96
-96
-96
-96
-96
Actual
