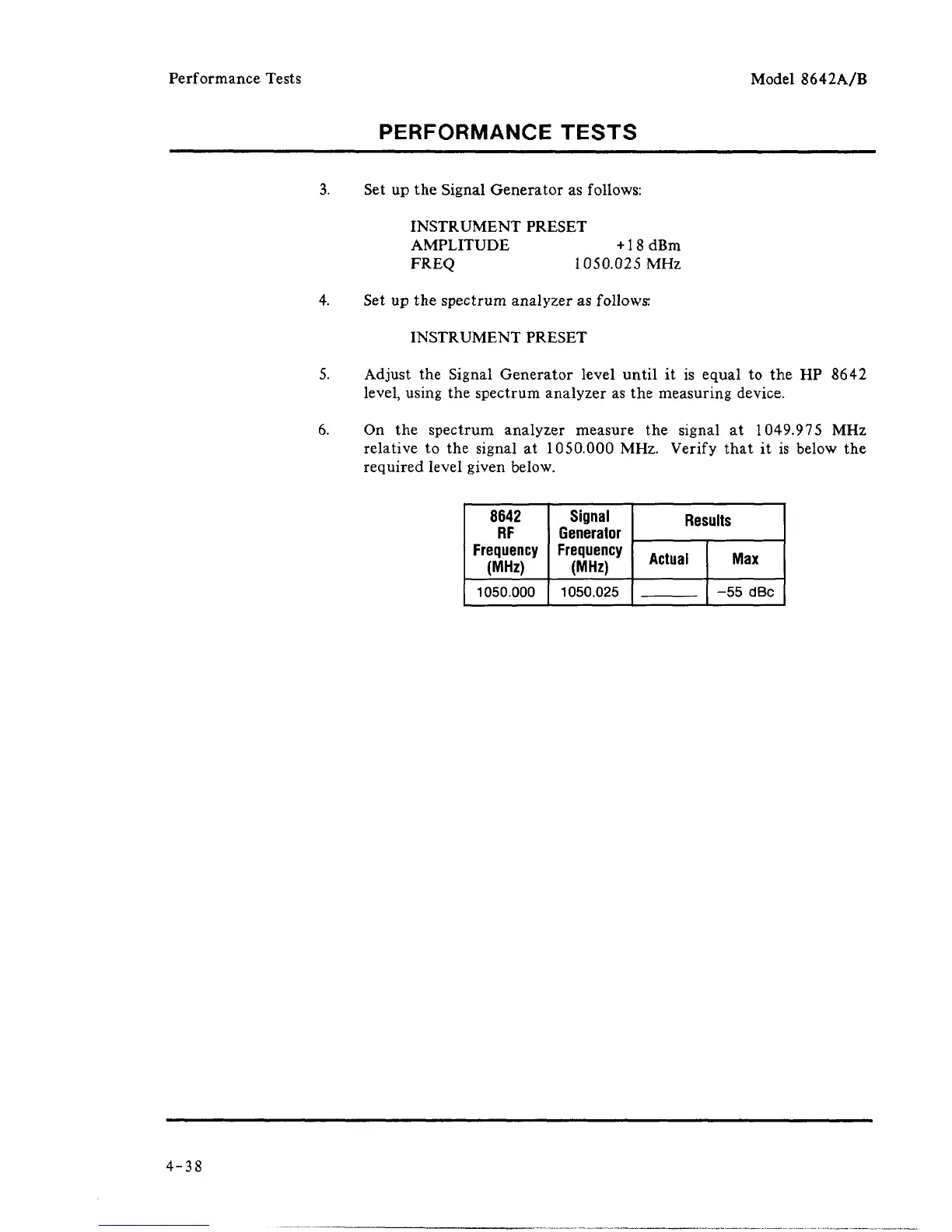

Performance Tests
Model 8642A/B
PERFORMANCE TESTS
3.
Set up the Signal Generator as follows:
INSTRUMENT PRESET
AMPLITUDE +18dBm
FREQ 1050.025 MHz
4.
Set up the spectrum analyzer as follows:
INSTRUMENT PRESET
5.
Adjust the Signal Generator level until it is equal to the HP 8642
level, using the spectrum analyzer as the measuring device.
6. On the spectrum analyzer measure the signal at 1049.975 MHz
relative to the signal at 1050.000 MHz. Verify that it is below the
required level given below.
8642
RF
Frequency
(MHz)
1050.000
Signal
Generator
Frequency
(MHz)
1050.025
Results
Actual
Max
-55 dBc
