HP 8642B User Manual

Model 8642A/B
General Information

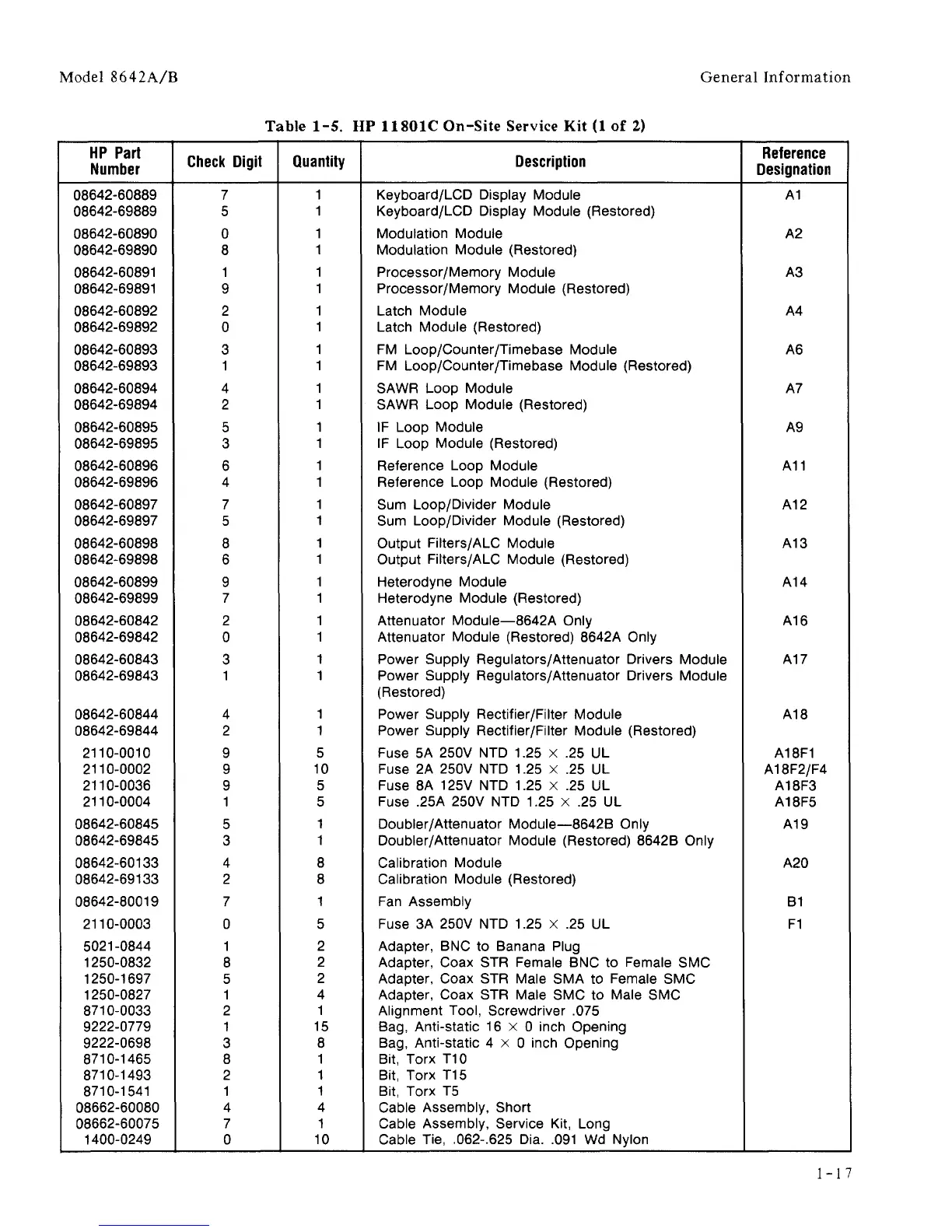

Table 1-5. HP 11801C On-Site Service Kit (1 of 2)
HP Part
Number
08642-60889
08642-69889
08642-60890
08642-69890
08642-60891
08642-69891
08642-60892
08642-69892
08642-60893
08642-69893
08642-60894
08642-69894
08642-60895
08642-69895
08642-60896
08642-69896
08642-60897
08642-69897
08642-60898
08642-69898
08642-60899
08642-69899
08642-60842
08642-69842
08642-60843
08642-69843
08642-60844
08642-69844
2110-0010
2110-0002
2110-0036
2110-0004
08642-60845
08642-69845
08642-60133
08642-69133
08642-80019
2110-0003
5021-0844
1250-0832
1250-1697
1250-0827
8710-0033
9222-0779
9222-0698
8710-1465
8710-1493
8710-1541
08662-60080
08662-60075
1400-0249
Check Digit
7
5
0
8
1
9
2
0
3
1
4
2
5
3
6
4
7
5
8
6
9
7
2
0
3
1
4
2
9
9
9
1
5
3
4
2
7
0
1
8
5
1
2
1
3
8
2
1
4
7
0
Quantity
5
10
5
5
8
8
1
5
2
2
2
4
1
15
8
1
1
1
4
1
10
Description
Keyboard/LCD Display Module
Keyboard/LCD Display Module (Restored)
Modulation Module
Modulation Module (Restored)
Processor/Memory Module
Processor/Memory Module (Restored)
Latch Module
Latch Module (Restored)
FM Loop/Counter/Timebase Module
FM Loop/Counter/Timebase Module (Restored)
SAWR Loop Module
SAWR Loop Module (Restored)
IF Loop Module
IF Loop Module (Restored)
Reference Loop Module
Reference Loop Module (Restored)
Sum Loop/Divider Module
Sum Loop/Divider Module (Restored)
Output Filters/ALC Module
Output Filters/ALC Module (Restored)
Heterodyne Module
Heterodyne Module (Restored)
Attenuator Module—8642A Only
Attenuator Module (Restored) 8642A Only
Power Supply Regulators/Attenuator Drivers Module
Power Supply Regulators/Attenuator Drivers Module
(Restored)
Power Supply Rectifier/Filter Module
Power Supply Rectifier/Filter Module (Restored)
Fuse 5A 250V NTD 1.25 X .25 UL
Fuse 2A 250V NTD 1.25 x .25 UL
Fuse 8A 125V NTD 1.25 X .25 UL
Fuse .25A 250V NTD 1.25 x .25 UL
Doubler/Attenuator Module—8642B Only
Doubler/Attenuator Module (Restored) 8642B Only
Calibration Module
Calibration Module (Restored)
Fan Assembly
Fuse 3A 250V NTD 1.25 X .25 UL
Adapter, BNC to Banana Plug
Adapter, Coax STR Female BNC to Female SMC
Adapter, Coax STR Male SMA to Female SMC
Adapter, Coax STR Male SMC to Male SMC
Alignment Tool, Screwdriver .075
Bag, Anti-static 16 x 0 inch Opening
Bag, Anti-static 4x0 inch Opening
Bit, Torx T10
Bit, Torx T15
Bit, Torx T5
Cable Assembly, Short
Cable Assembly, Service Kit, Long
Cable Tie, .062-.625 Dia. .091 Wd Nylon
Reference
Designation
A1
A2
A3
A4
A6
A7
A9
A11
A12
A13
A14
A16
A17
A18
A18F1
A18F2/F4
A18F3
A18F5
A19
A20
B1
F1
1-17
