HP 8642B User Manual

Model 8642A/B

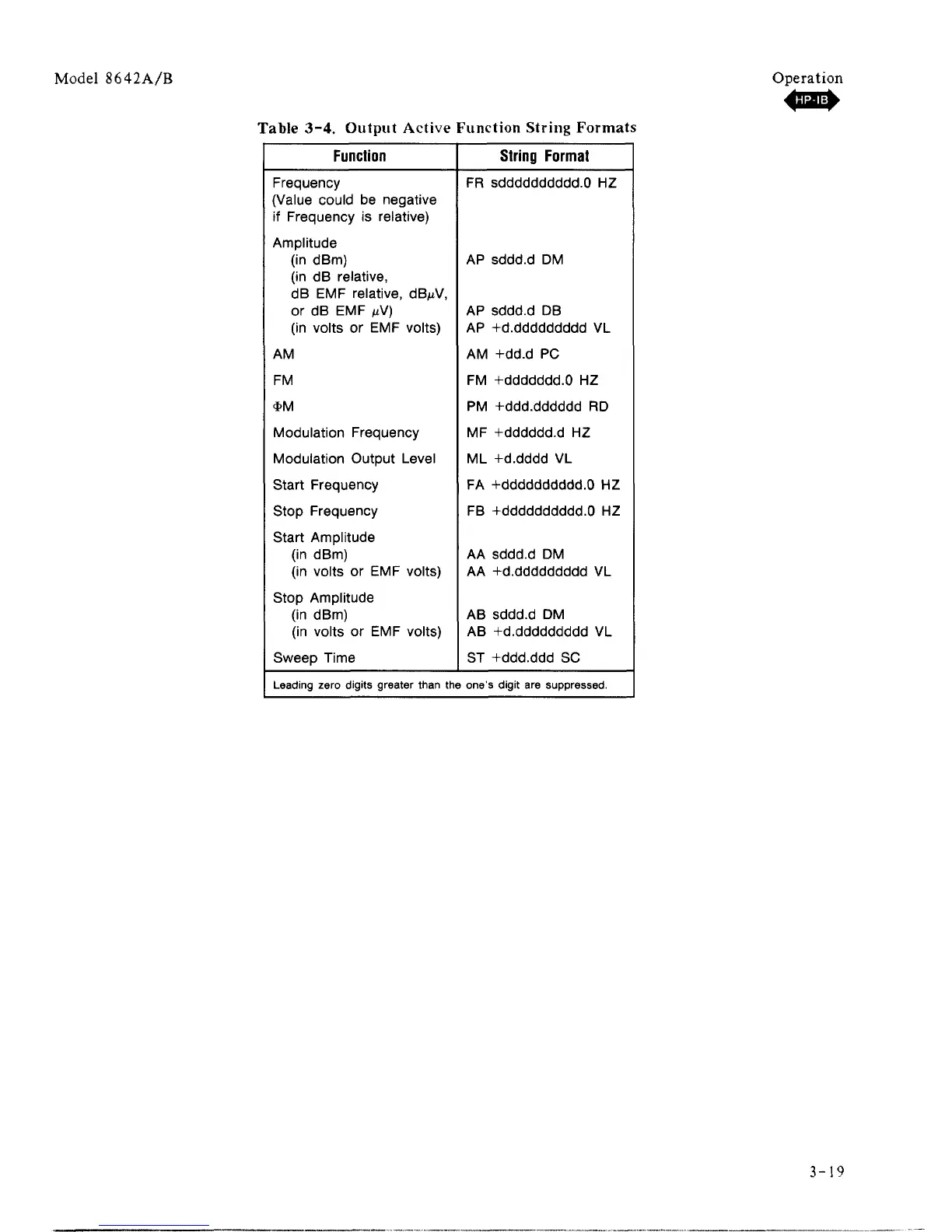

Table 3-4. Output Active Function String Formats
Function
Frequency
(Value could be negative
if Frequency is relative)
Amplitude
(in dBm)
(in dB relative,
dB EMF relative, dB^V,
or dB EMF ^V)
(in volts or EMF volts)
AM
FM
*M
Modulation Frequency
Modulation Output Level
Start Frequency
Stop Frequency
Start Amplitude
(in dBm)
(in volts or EMF volts)
Stop Amplitude
(in dBm)
(in volts or EMF volts)
Sweep Time
Leading zero digits greater than th<
String Format
FR sdddddddddd.O HZ
AP sddd.d DM
AP sddd.d DB
AP +d.ddddddddd VL
AM +dd.d PC
FM +ddddddd.O HZ
PM +ddd.dddddd RD
MF +dddddd.d HZ
ML +d.dddd VL
FA +dddddddddd.O HZ
FB +dddddddddd.O HZ
AA sddd.d DM
AA +d.ddddddddd VL
AB sddd.d DM
AB +d.ddddddddd VL
ST +ddd.ddd SC
3 one's digit are suppressed.
Operation
3-19
