ES User’
s Guide
4-9
Using Instrument Functions
Using Markers
Figure 4-4
P
eak and Minimum Search Criteria
When the maximum or minimum point is at or near either edge of the
display
, the excursion requirement is satisfied by a half of a division
excursion on just one side of the maximum (or minimum). See
Figure
4-5
.

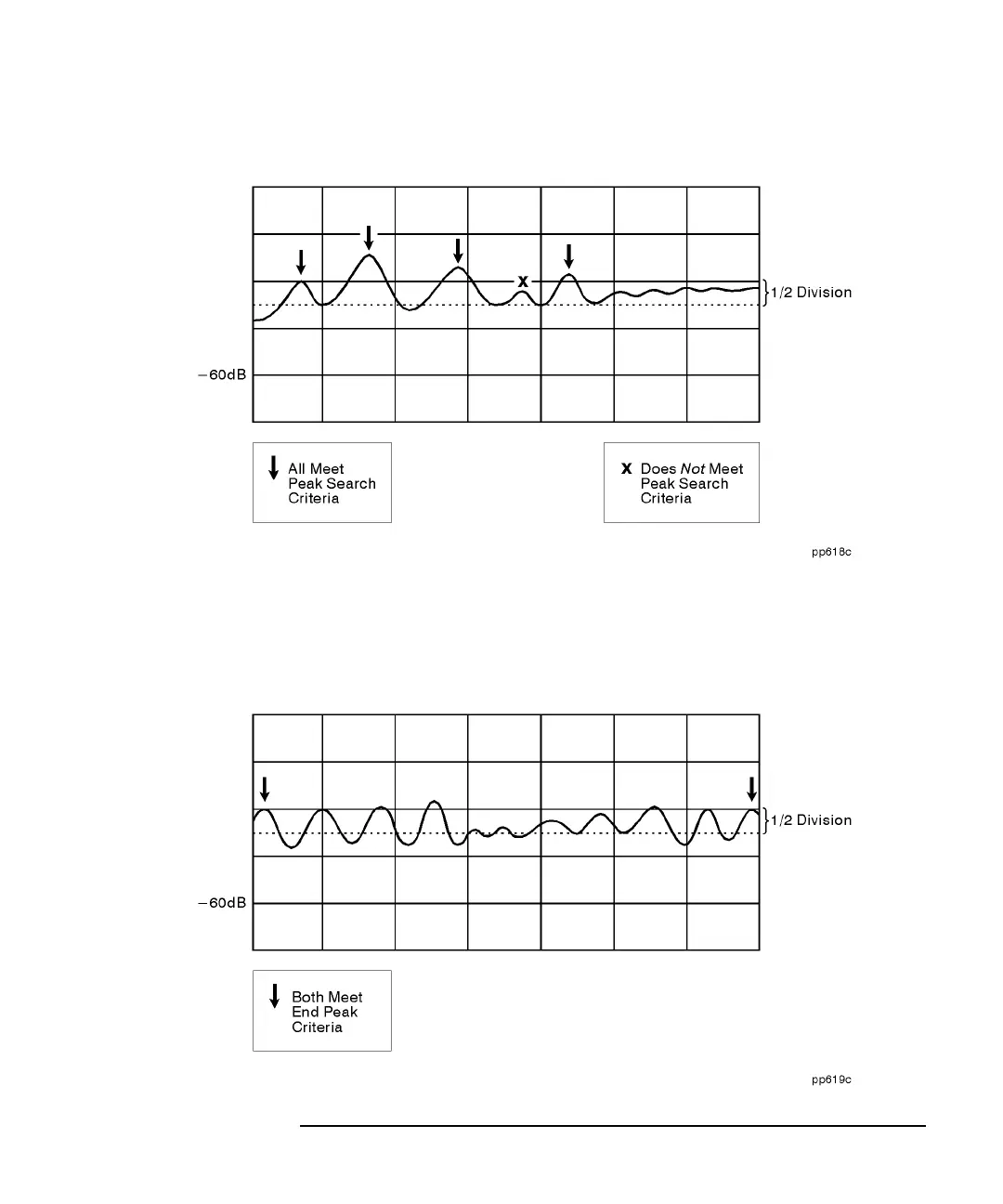

Figure 4-5
P
eak and Minimum Search Criteria at Display Endpoints
142
144
