9-10 ES User’s Guide
Specifications

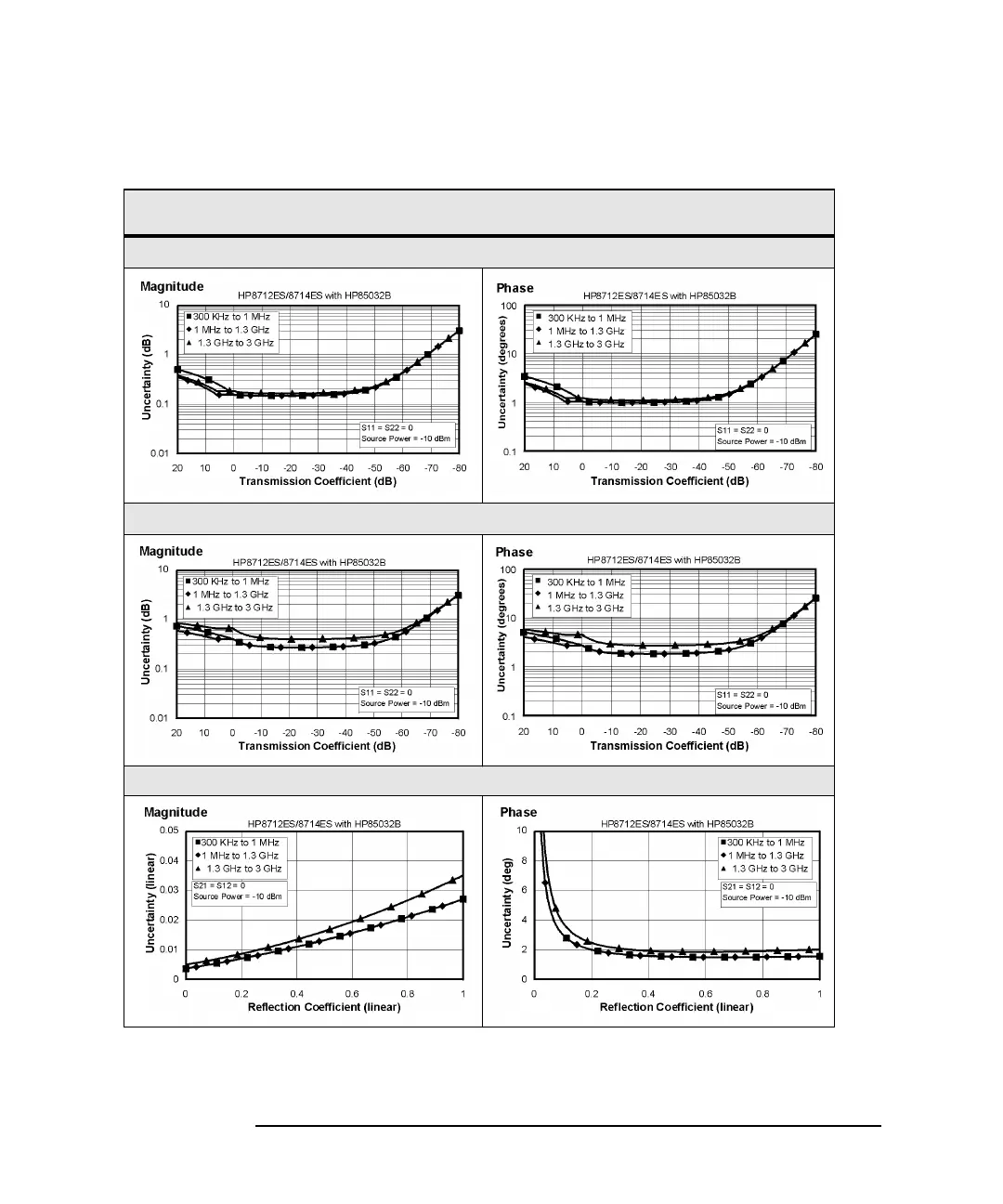

Table 9-3 System Performance, Corrected, 50Ω, T/R Calibration (continued)
a. These specifications apply for measurements made using “fine” bandwidth, no averaging, and at an environmental tem-
perature of 25°±5° C, with less than 1° C deviation from the calibration temperature.
b. For transmission measurements, the effect of crosstalk is disregarded and S
12
= S
21
for S
21
<1.0, S
12
=
1
/ S
21
for S
21
> 1.0.
HP 8712ES/8714ES (50 Ω)
HP 85032B/E (Type-N, 50 Ω) Cal Kit, T/R Calibration
Transmission Uncertainty: Enhanced Response Calibration (Specification)
a,b
Transmission Uncertainty: Response Calibration (Specification)
a
,
b
Reflection Uncertainty: One-Port Calibration (Specification)
a
