9-12 ES User’s Guide
Specifications
Table 9-3 System Performance, Corrected, 50Ω, T/R Calibration (continued)
a. Option 1E1 adds a 60 dB step attenuator to the HP 8712ET/8714ET.
b. These specifications apply for measurements made using “fine” bandwidth, no averaging, and at an environmental tempera-
ture of 25°±5° C, with less than 1° C deviation from the calibration temperature.
c. For transmission measurements, the effect of crosstalk is disregarded and S
12
= S
21
for S
21
<1.0, S
12
=
1
/ S
21
for S
21
> 1.0.
HP 8712ET/8714ET (50 Ω) with Attenuator Option 1E1
a
HP 85032B/E (Type-N, 50 Ω) Cal Kit, T/R Calibration

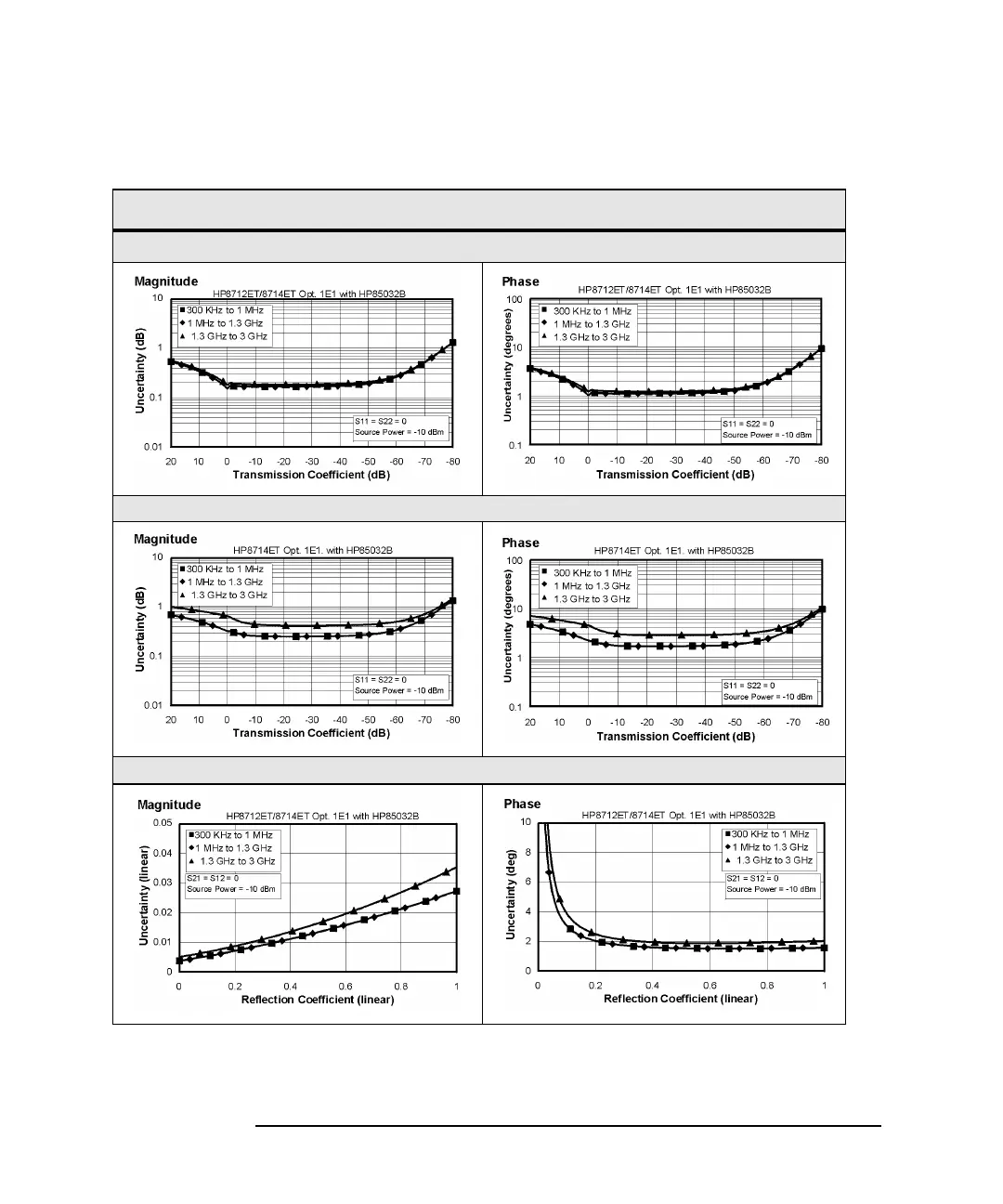

Transmission Uncertainty: Enhanced Response Calibration (Specification)
b,c
Transmission Uncertainty: Response Calibration (Specification)
b
,
c
Reflection Uncertainty: One-Port Calibration (Specification)
b
