Operating Information
Model 8756A
,...---INSTRUMENT STA.TE --~
EJBBEJ
a r:-~-: -:-,
c:.:..J ~ 1-if'-18 STATlJS ___:_j
4. INSTRUMENT STATE. This area provides information on the
instrument and allows inputs to alter the state.
3-10
Enables the shift (blue) functions of the
front panel keys.
Allows retention of the current front panel
settings. Up to 9 settings may be stored
by pressing this key followed by a single
digit (1 through 9) on the Keypad. No
terminating key is needed. The stored
DISPLAY MEMory for each channel is not
saved along with the Instrument State.
Allows recovery of up to 9 front panel
settings which have been previously re-
tained in storage registers using the SAVE
key. The front panel setting desired is
selected by depressing this key followed by
a single digit (1 through 9). No terminat-
ing key is needed.
NOTE
When the Model 8350B Sweep Oscillator or the Model 8340A
Synthesized Sweeper HP-IB (address 19 decimal) is
connected to the 8756 SYSTEM INTERFACE, SAVE and RECALL
are performed on both the sweep oscillator and the 8756A.
Additionally, the Alternate Sweep feature of these sweep
oscillators may be enabled by selecting Alternate N, where
N is the register for the alternate sweep and front panel
settings desired. N must be selected on the sweep
oscillator keypad.

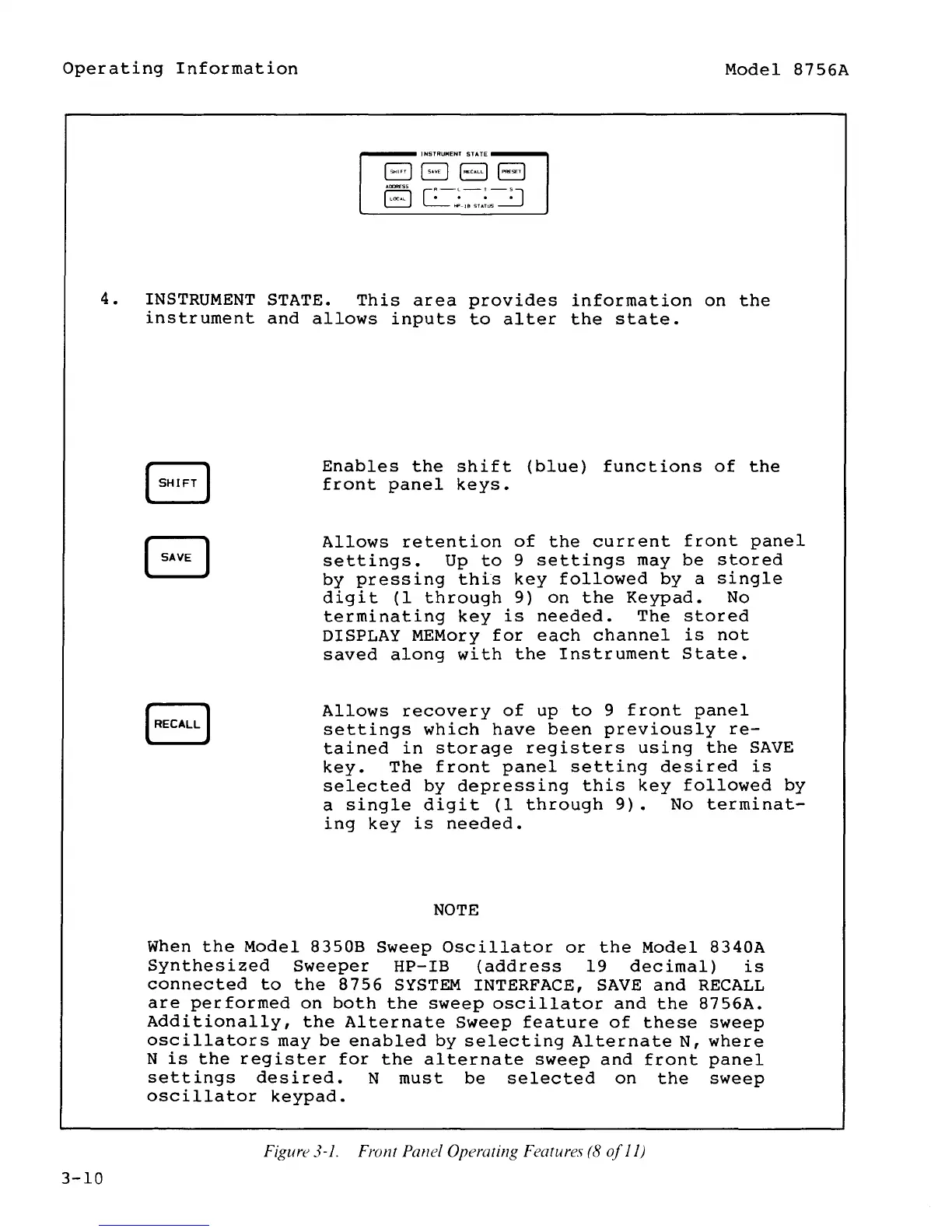

Figure 3-1. Front Panel Operating Features (8 of 11)
