Chapter 2
Installing and Configuring
Additional Controls and Indicators
20
Additional Controls and Indicators
The HP 9000 rp3410 or HP 9000 rp3440 server can have up to three low-voltage differential (LVD), 3.5 inch
form factor hard disk drives (HDDs) installed. These hard disk drives have LEDs that provide status and
activity information.
Hard Disk Drive Indicators
The hard disk drives have two LEDs per drive, as described below.
• Status LED—The drive status LED is not used on the HP 9000 rp3410 or HP 9000 rp3440 server.
• Activity LED—The Drive Activity LED is flashing green and indicates disk drive activity. This LED is
directly controlled by the disk drive and turns on when a drive is accessed.

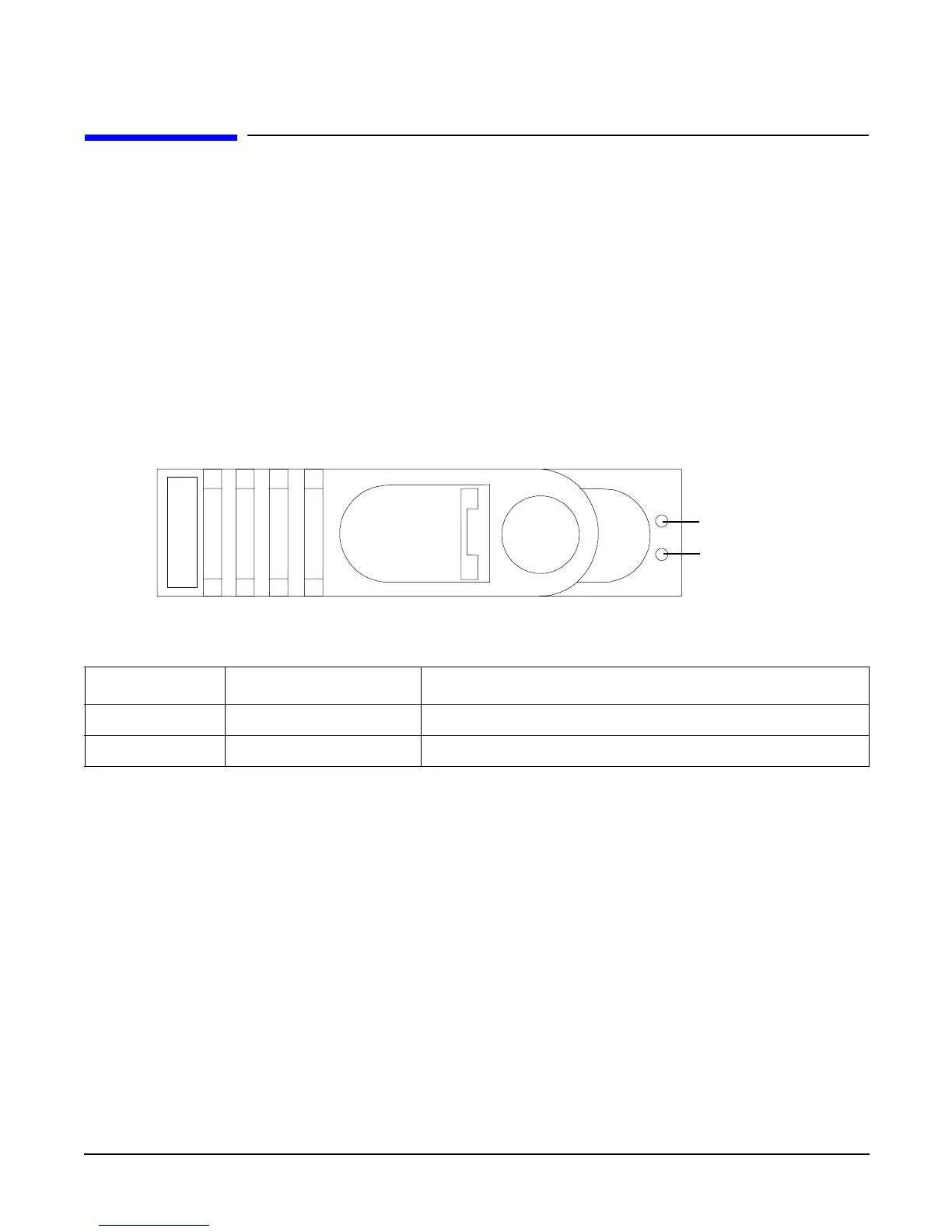

Figure 2-3 Hard Disk Drive LED Indicators
Table 2-2 Hard Disk Drive LED Definitions
LED Activity Description
Status LED None Not used
Activity LED Flashing green Ready/scanning hard drive
Status LED
- (Not used)
Activity LED
To Next Page
