HP 9000 rp3440 - Figure 2-17 Replacing the Metal Cover; Figure 2-18 Replacing the Plastic Cover

Chapter 2
Installing and Configuring
Removing and Replacing System Covers and Bezels
33
b. Place the metal cover on the chassis and slide it toward the front of the system until the blue
release lever snaps in place (Figure 2-17).

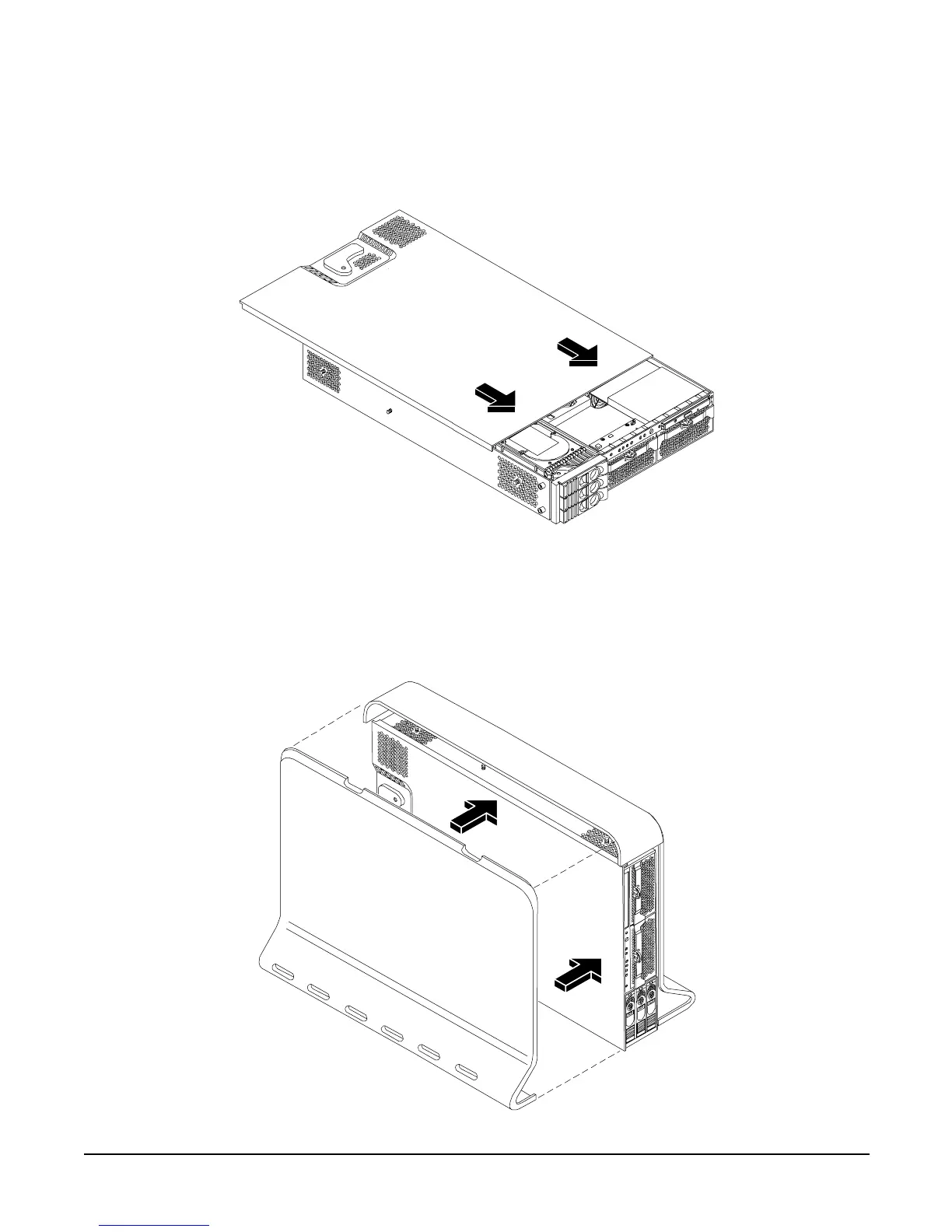

Figure 2-17 Replacing the Metal Cover
Step 2. Replace the plastic cover:
a. Align the cover’s mounting holes with the matching tabs on the system chassis.
b. Close the cover until it snaps onto the system chassis.
Figure 2-18 Replacing the Plastic Cover
