HP 9000 rp3440 - Figure 2-42 Locking the Dual Processor Module in Place; Figure 2-43 Slide the Sequencing Retainer Plate

Chapter 2
Installing and Configuring
Installing an Additional Processor Module
62
Step 8. Use the special CPU install tool (2.5mm driver or Allen Wrench) to lock the dual processor module
in place on the system board. To do this, insert the CPU install tool into the hole that runs down
the side of the heatsink and rotate it clockwise 180 degrees (Figure 2-42).

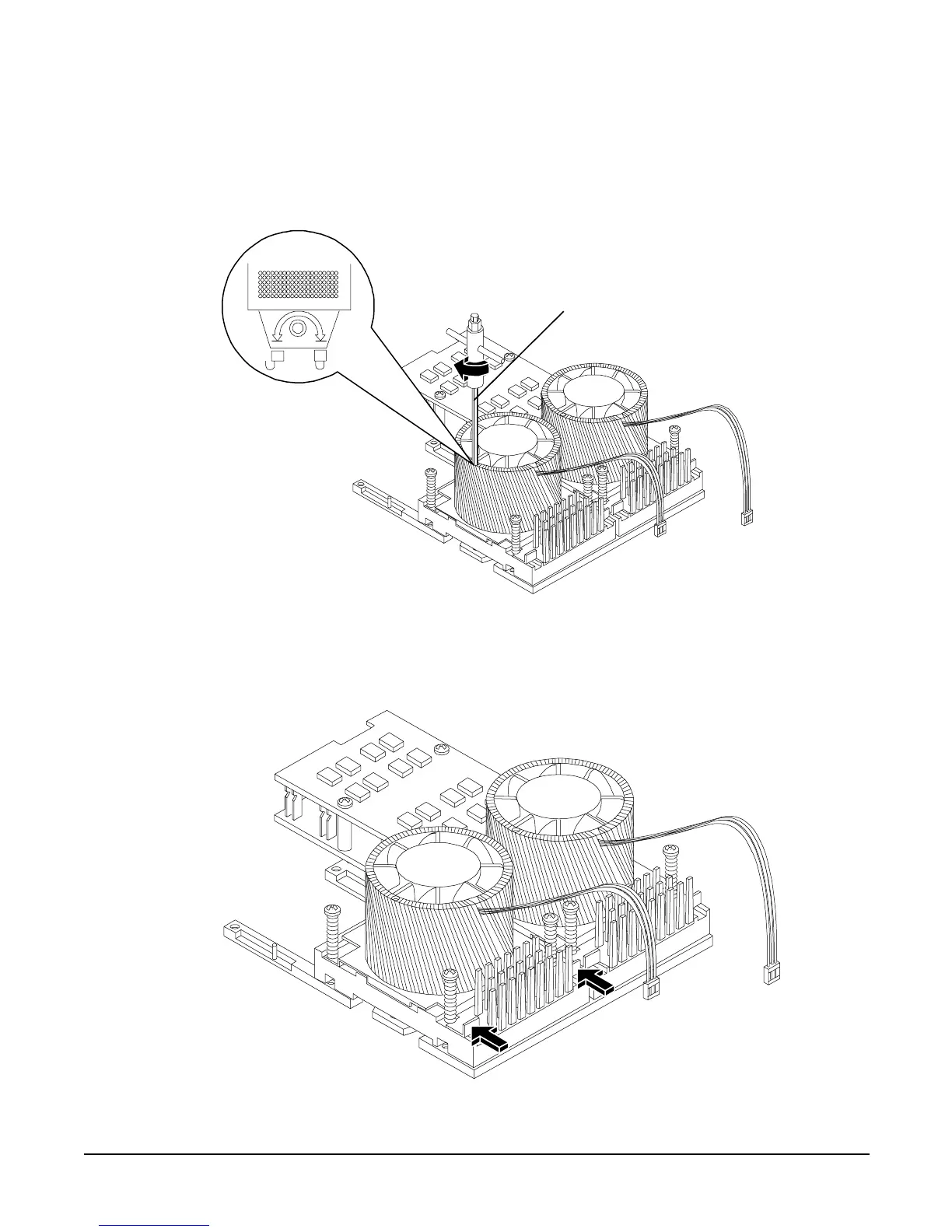

Figure 2-42 Locking the Dual Processor Module in Place
Step 9. Slide the sequencing retainer plate toward the front of the system (Figure 2-43).
Figure 2-43 Slide the Sequencing Retainer Plate
CPU Install Tool
(2.5 mm Driver/Allen
Wrench)
