HP 9000 rp3440 - Figure 2-47 Install the Processor Module Power Pod Mounting Screws

Chapter 2
Installing and Configuring
Installing an Additional Processor Module
65
Step 13. Align the two mounting screw holes on the power pod module with the screw holes in the shims on
the system board’s metal mounting bracket. Screw in the power pod module mounting screws
(Figure 2-47). (Use the screws removed in step 11.)

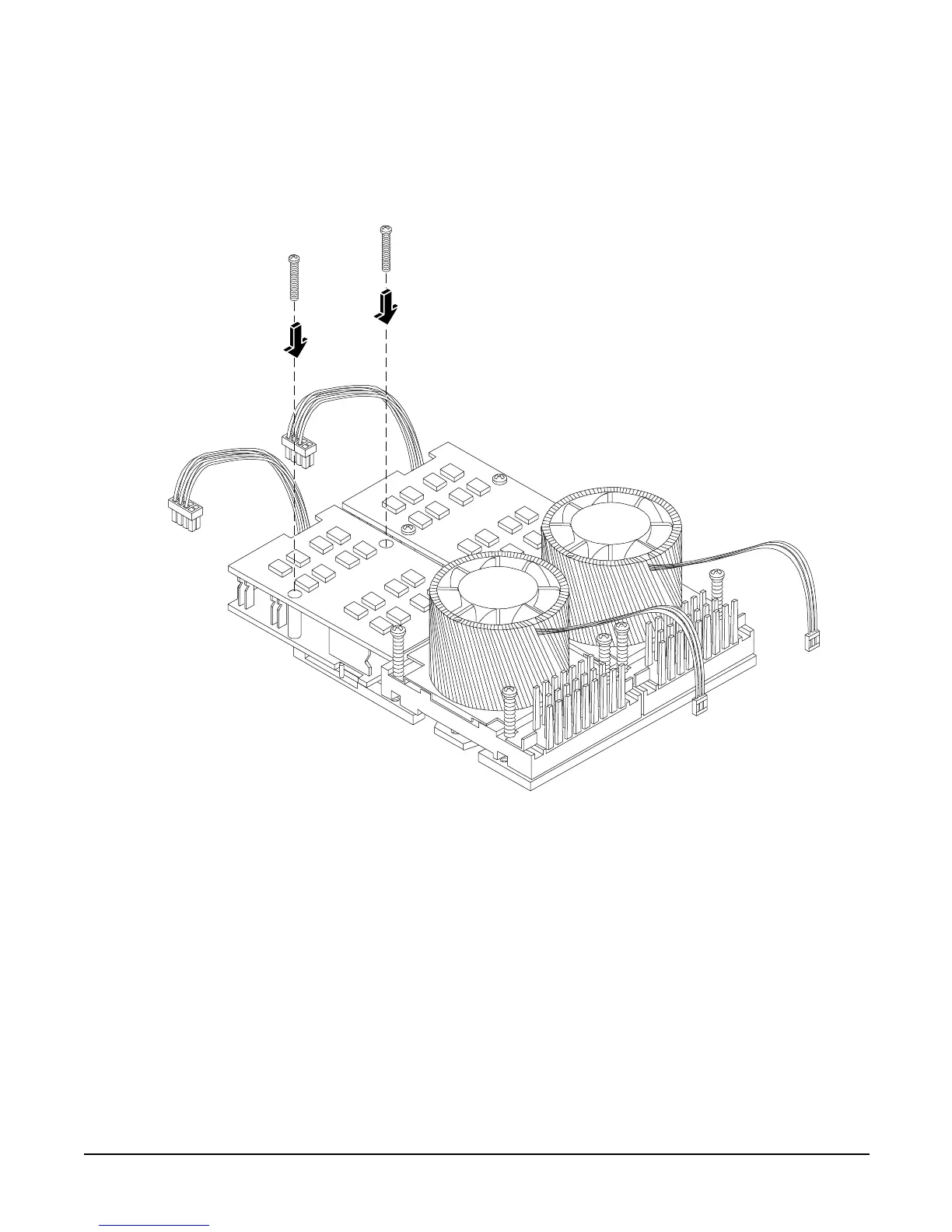

Figure 2-47 Install the Processor Module Power Pod Mounting Screws
