Chapter 4
Removing and Replacing Components
Processors
58
Tools Required
To install processors in your HP Server, you must use the IPF CPU Install Kit, 5069-5441.
This toolkit consists of:
• 1 ea., A3024-80004, Disposable ESD Kit
• 1 ea., A7231-04046, Label-less CPU Install tool
CAUTION Do not modify the settings of the DIP switches located on the processor extender board. These
switches are for factory use. Failure to observe this caution will result in system failure.

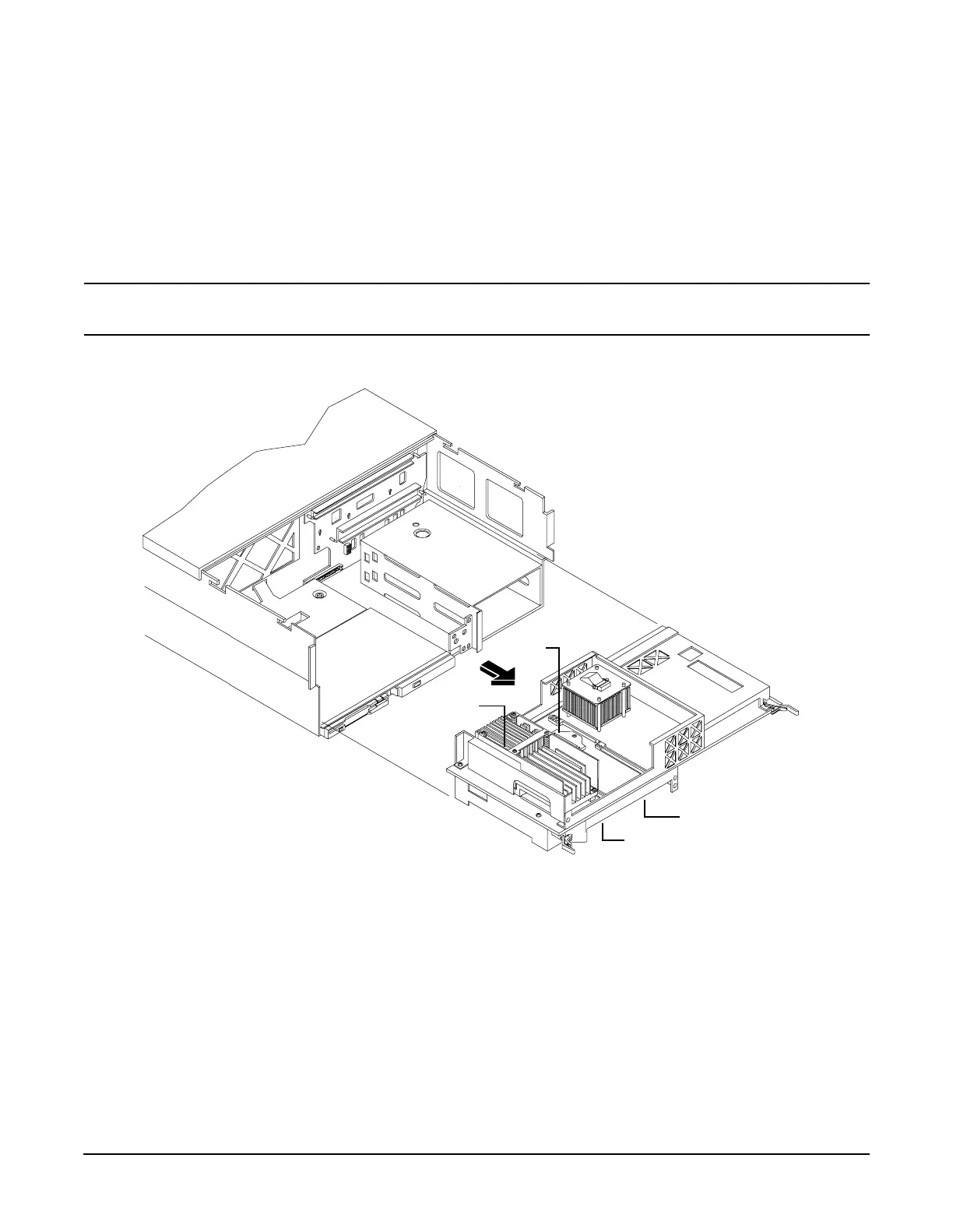

Figure 4-14 Removing the Processor Extender Board
Removing a Processor
To remove a processor on the processor extender board, perform the following steps:
Step 1. If rack mounted, slide the HP Server out from the rack until it stops. (Refer to the hp9000 rp4440
Installation Guide for additional information.)
Step 2. Remove the front bezel. (Refer to “Front Bezel” on page 38.)
Step 3. Remove the front cover. (Refer to “Front and Top Covers” on page 39.)
Step 4. Remove the processor extender board. (Refer to “Processor Extender Board” on page 53.)
Step 5. Unplug the processor cable from its socket on the extender board.
CPU 1
CPU 0
CPU 3 (under)
CPU 2 (under)
