HP BladeSystem c7000 Quick Setup Instructions

3
Site requirements
Select an installation site that meets the detailed installation site
requirements described in the server user guide on the Documentation
CD and on the HP website (http://www.hp.com).

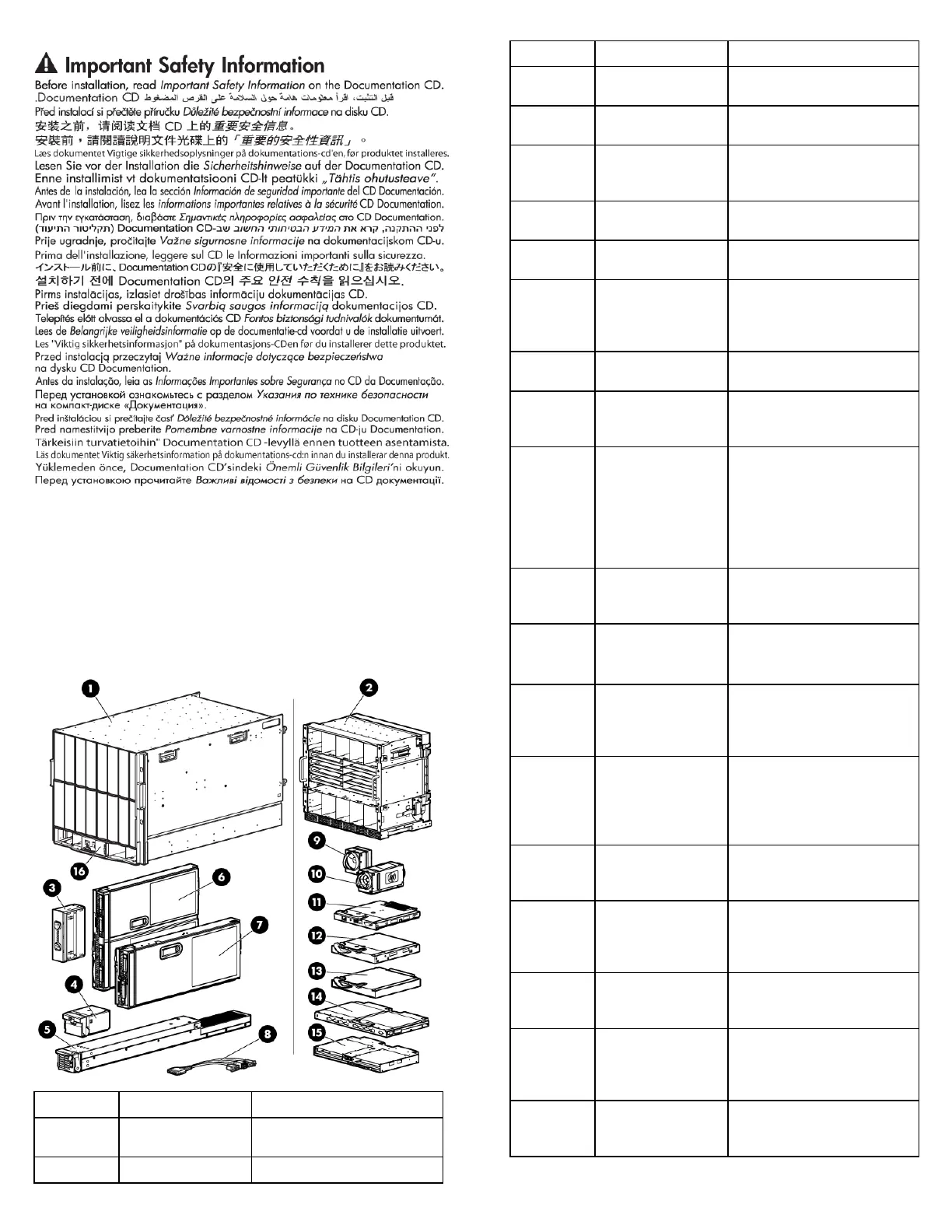

Verifying the pallet contents
Item Name Description
1
HP BladeSystem
c7000 Enclosure
The HP BladeSystem enclosure
2
Rear cage The rear section of the enclosure
Item Name Description
3
Device bay blank
A mandatory insert installed in
any unused device bay
4
Power supply blank
A mandatory insert installed in
any unused power supply bay
5
Enclosure hot-plug
power supply (quantity
as ordered)
The power supply for the
enclosure
6
Full-height device
(quantity as ordered)
The full-height server or storage
blade
7
Half-height device
(quantity as ordered)
The half-height server or storage
blade
8
Local I/O cable
A cable with serial, USB, and
video connectors that connects to
the I/O connector on the front of a
blade
9
Fan blank
A mandatory insert installed in
any unused fan bay
10
HP Active Cool 300
Fan (quantity as
ordered)
A fan used to cool the components
installed in the enclosure
11
Onboard
Administrator with
KVM module
Hot-pluggable enclosure
management module. One
module is required to manage the
components installed in the
enclosure. To provide redundant
enclosure management, you can
install an optional second module.
12
Onboard
Administrator with
KVM blank
A mandatory cover installed in
any unused Onboard
Administrator bay
13
Interconnect blank
A mandatory insert installed in
any unused interconnect bay
14
Interconnect module
(quantity and type as
ordered)
Any of several components, such
as pass-thrus or switches that
enable communication between
the blade and the enclosure
15
Onboard
Administrator with
KVM tray
Hot-pluggable tray that houses up
to two Onboard Administrator
modules and provides two
enclosure link connectors, the rear
enclosure UID, LED, and switch.
16
HP BladeSystem Insight
Display
A display that provides
information about the health and
operation of the enclosure
17*
Power retention ties
(single-phase
enclosures only)
Tie straps that help prevent
single-phase power cables from
disconnecting from the power
connectors
18*
Documentation CD
A CD containing detailed
documentation on using the
enclosure
19*
Hard copy installation
instructions for blades,
options, and
interconnects
The printed installation instructions
20*
Installation checklist
A checklist to guide you through
installation of the enclosure and
components
* Not shown

HP BladeSystem c7000 Specifications

General

Form Factor	10U
Number of Bays	16
Redundant Power	Yes
Redundant Fans	Yes
Maximum Blade Servers	16 half-height or 8 full-height
Operating Temperature	10° to 35°C (50° to 95°F)
Power Supplies	Up to 6
Cooling Fans	10
Management	Onboard Administrator
Interconnect Modules	Up to 8
Networking Options	Ethernet, Fibre Channel, InfiniBand
Compatibility	HP ProLiant and Integrity server blades
Relative Humidity	10% to 90% (non-condensing)
