9
Connection Port number
Connects to
interconnect
bay/port
Comments
Mezzanine slot
1—4x cards
4x port 1 3/Port N
• One
double-wide
interconnect
module
• Only port 1
of a two port
card will be
connected.
Mezzanine slot
2—1x or 2x
cards
1x/2x port 1
1x/2x port 2
1x/2x port 3
1x/2x port 4
5 / port N
6 / port N
7 / port N
8 / port N
One or two
single-wide
interconnect
modules
Mezzanine slot
2—4x cards
4x port 1
4x port 2
5/Port N
7/Port N
One or two
double-wide
interconnect
modules
* Connectivity to interconnect bays 7 and 8 is only available with
four-port mezzanine cards or port 2 of 4x card in Mezzanine slot 2.

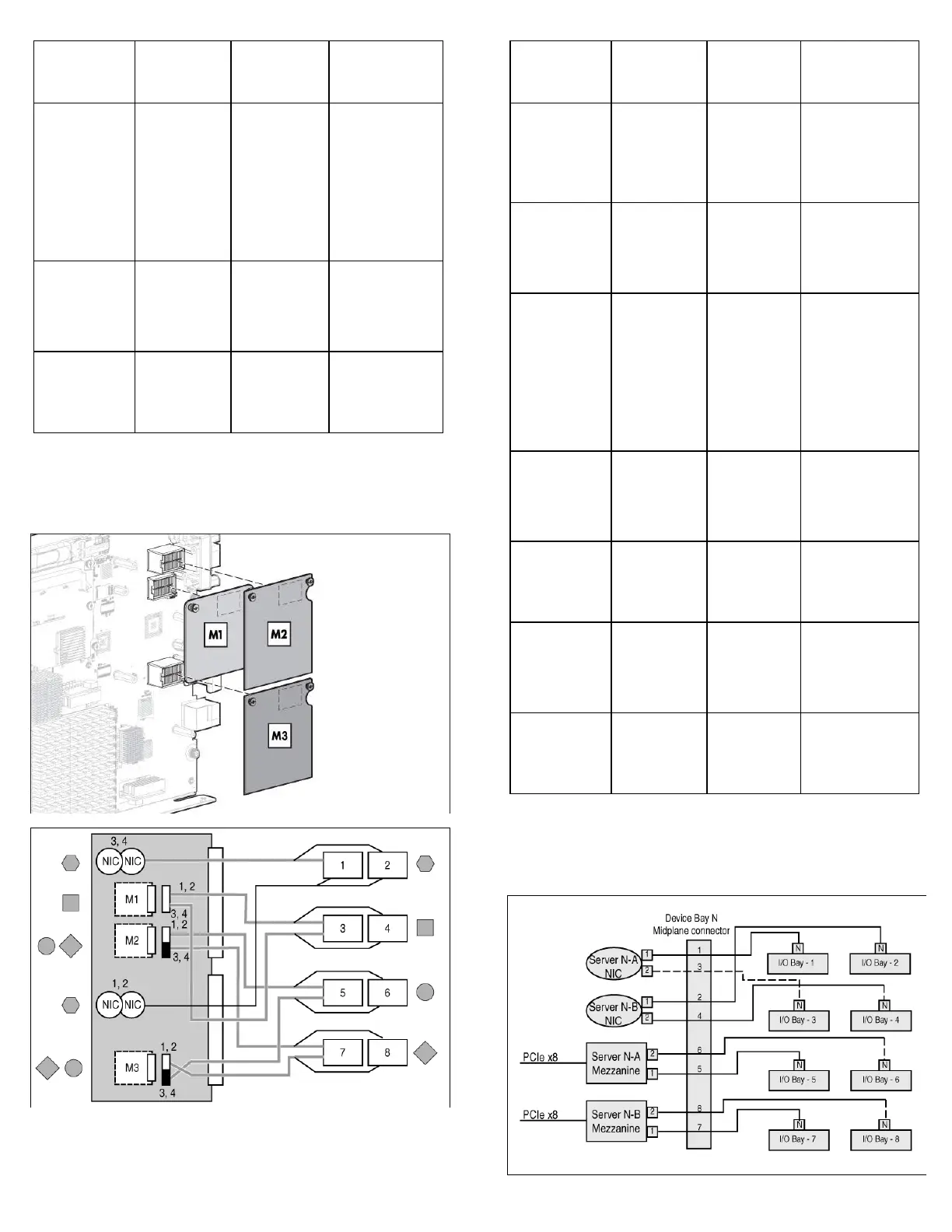

Mapping full-height blades
The following table lists the available configurations for full-height
devices installed in device bay N (1–8).
Connection Port number
Connects to
interconnect
bay/port
Comments
NIC NIC 1
NIC 2
NIC 3
NIC 4
1/Port N+8
2/Port N+8
1/Port N
2/Port N
One or two
single-wide
Ethernet
interconnect
modules
Mezzanine slot
1—1x or 2x
cards
1x/2x port 1
1x/2x port 2
1x/2x port 3
1x/2x port 4
3/Port N
4/Port N
3/Port N+8
4/Port N+8
One or two
single-wide
interconnect
modules
Mezzanine slot
1—4x cards
4x port 1 3/Port N
• One
double-wide
interconnect
module
• Only port 1 of
a two-port
card can be
connected
Mezzanine slot
2—1x or 2x
cards
1x/2x port 1
1x/2x port 2
1x/2x port 3
1x/2x port 4
5/Port N
6/Port N
7/Port N
8/Port N
Up to four
single-wide
interconnect
modules
Mezzanine slot
2—4x cards
4x port 1
4x port 2
5/Port N
7/Port N
One or two
double-wide
interconnect
modules
Mezzanine slot
3—1x or 2x
cards
1x/2x port 1
1x/2x port 2
1x/2x port 3
1x/2x port 4
7/Port N+8
8/Port N+8
5/Port N+8
6/Port N+8
Up to four
single-wide
interconnect
modules
Mezzanine slot
3—4x cards
4x port 1
4x port 2
5/Port N+8
7/Port N+8
One or two
double-wide
interconnect
modules
* Connectivity to interconnect bays 7 and 8 is only available with
four-port mezzanine cards or port 2 of 4x card in Mezzanine slot 2.
Mapping BL2x220c Blades
