2.

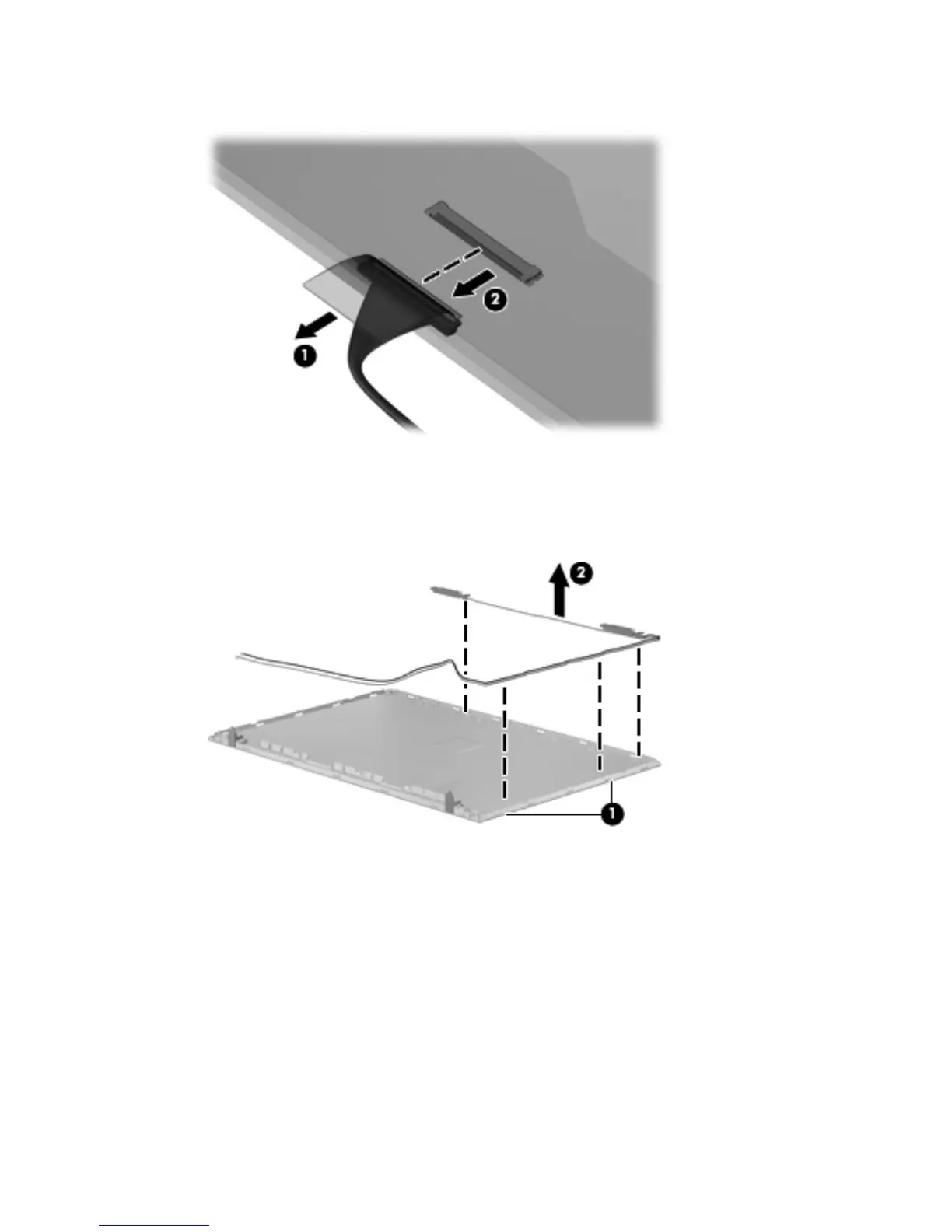

Remove the display cable (2) from the back of the display panel.
To remove the WLAN antennas:
1. Route the antenna cables (1) out of the routing channels in the inside of the display enclosure.
2. Peel the WLAN antenna receivers (2) from the enclosure
Reverse this procedure to assemble the display assembly.
Component replacement procedures
95
