HP Compaq 325 User Manual
4
of 1
of 1 rating
168 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

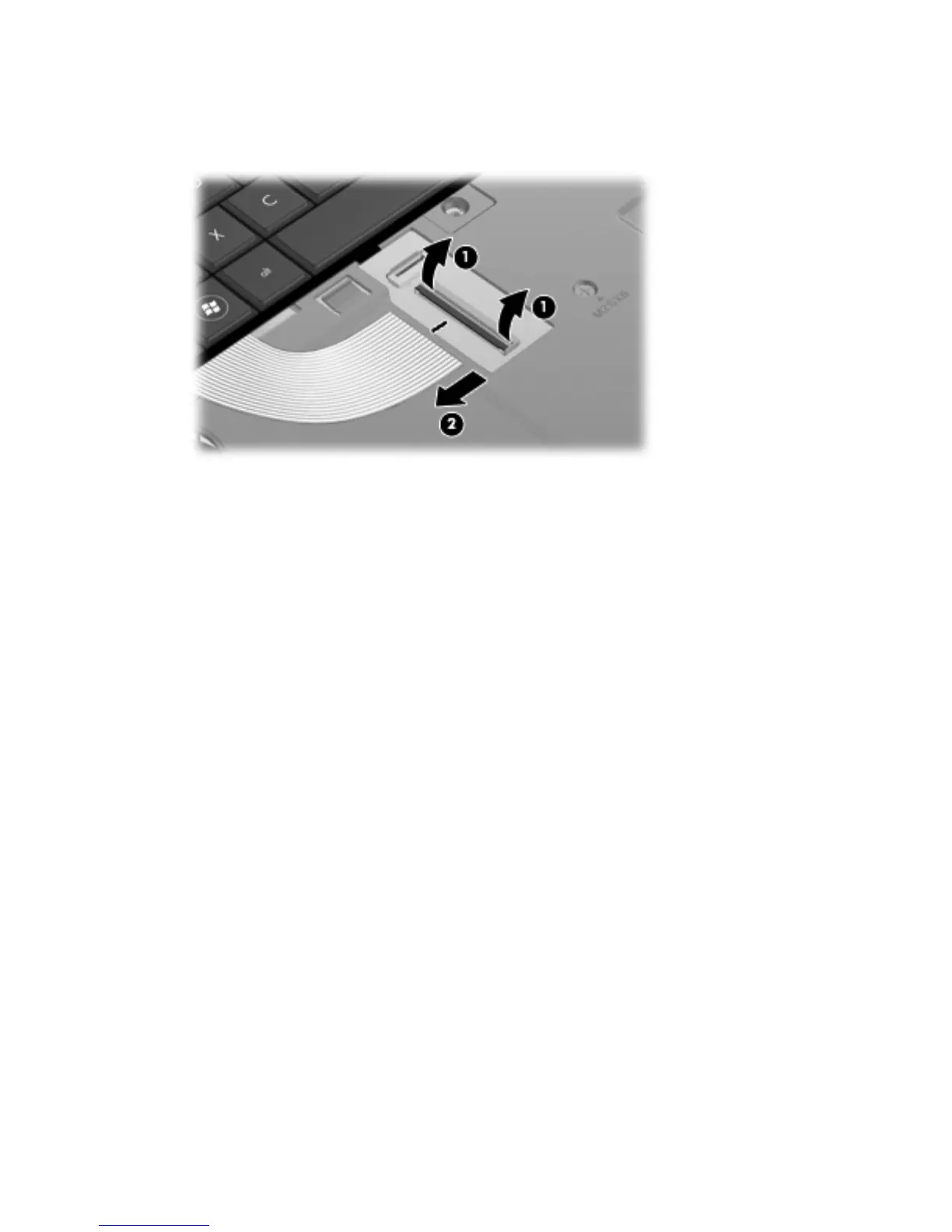

4.
Rest the keybo
ard on its edge an
d slide the ke
yboard back toward the di
splay then, release the
ZIF connector
(1)
to which the keyboard cable
is attached, and disconnect the key
board cable
(2)
from the system board.
Reverse this procedure
to install the keyboard.
76
Chapter 4 Removal and replacement p
rocedures
83
85
Table of Contents
Default Chapter
5
Table of Contents
5
1 Product Description
9
2 External Component Identification
18
Top Components
18
Touchpad
18
Lights
19
Buttons, Switch, and Speaker
21
Keys
22
Front Components
24
Right-Side Components
25
Left-Side Components
26
Bottom Components
27
Multimedia Components
29
Wireless Antennas (Select Models Only)
30
Additional Hardware Components
31
3 Illustrated Parts Catalog
32
Service Tag
32
Computer Major Components
33
Display Assembly Components
39
Plastics Kit
40
Cables
41
Mass Storage Devices
42
Miscellaneous Parts
44
Sequential Part Number Listing
45
4 Removal and Replacement Procedures
52
Preliminary Replacement Requirements
52
Tools Required
52
Service Considerations
52
Plastic Parts
52
Cables and Connectors
53
Drive Handling
53
Grounding Guidelines
54
Electrostatic Discharge Damage
54
Packaging and Transporting Guidelines
55
Workstation Guidelines
55
Equipment Guidelines
56
Component Replacement Procedures
57
Service Tag
57
Computer Feet
58
Battery
59
Service Door
60
Hard Drive
62
Memory Module
67
WLAN Module
69
Optical Drive
71
Fan
73
Heat Sink
74
Processor
76
Palm Rest
78
Keyboard
81
Top Cover
85
Power Switch Board
90
Bluetooth Module
92
USB Connector Assembly
93
Speaker
95
Display Assembly
96
System Board
104
Main Battery Connector
108
RTC Battery
110
Modem Module
111
Audio Board
114
5 Computer Setup
116
Computer Setup in Windows
116
Starting Computer Setup
116
Using Computer Setup
116
Navigating and Selecting in Computer Setup
116
Restoring Factory Settings in Computer Setup
117
Computer Setup Menus
118
File Menu
118
Security Menu
120
System Configuration Menu
121
Computer Setup in Linux
126
Starting Computer Setup
126
Using Computer Setup
127
Navigating and Selecting in Computer Setup
127
Restoring Factory Settings in Computer Setup
127
Computer Setup Menus
128
File Menu
128
Diagnostics Menu
129
Security Menu
129
System Configuration Menu
130
6 Specifications
132
Computer Specifications
132
39.6-CM (15.6-In) Display Specifications
133
35.6-CM (14.0-In) Display Specifications
135
33.8-CM (13.3-In) Display Specifications
136
Hard Drive Specifications
137
DVD-ROM Drive Specifications
138
DVD±RW Double-Layer Combo Drive Specifications
139
7 Backup and Recovery
140
Backup and Recovery in Windows 7
140
Overview
140
Backing up Your Information
140
Performing a Recovery
142
Using the Windows Recovery Tools
142
Using F11
143
Using a Windows 7 Operating System DVD (Purchased Separately)
143
Backup and Recovery in Windows Vista
144
Overview
144
Backing up Your Information
144
Performing a Recovery
145
Using the Windows Recovery Tools
146
Using F11
146
Using a Windows Vista Operating System DVD (Purchased Separately)
147
Backup and Recovery in Windows XP
148
Overview
148
Backing up Your Information
148
Performing a Recovery
149
Recovering Your Information
149
Recovering the Operating System and Programs
149
8 Connector Pin Assignments
151
Audio-In (Microphone)
151
Audio-Out (Headphone)
151
External Monitor
152
Hdmi
153
Modem)
154
Network)
155
Universal Serial Bus
155
9 Power Cord Set Requirements
156
Requirements for All Countries and Regions
156
Requirements for Specific Countries and Regions
157
10 Recycling
158
Battery
158
Display
158
Index
164
