5.

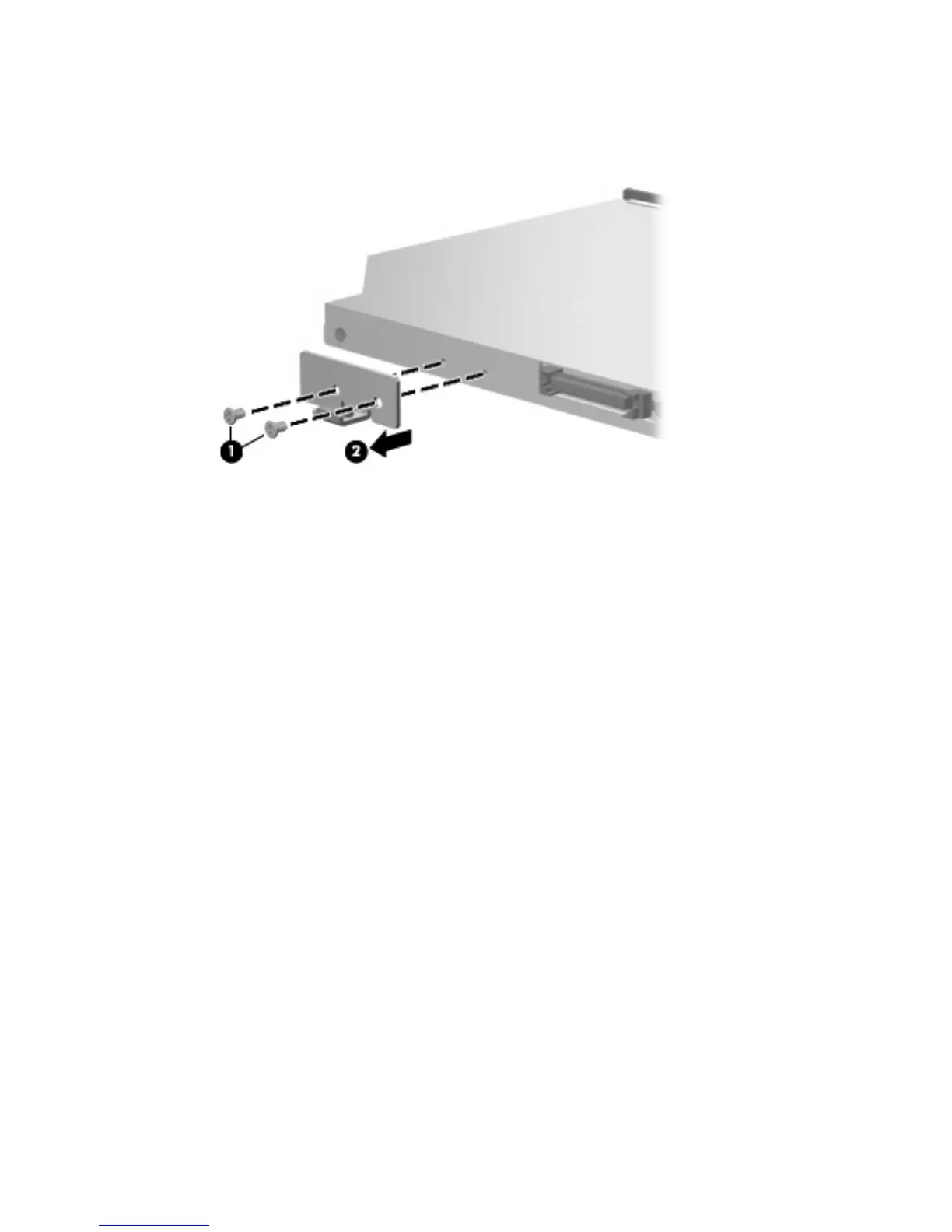

If it is necessary to replace the optical drive bracket, remove the two Phillips PM2.0×3.0 screws
(1) that secure the bracket to the optical drive.
6. Remove the optical drive bracket (2).
Reverse this procedure to reassemble and install the optical drive.
ENWW Component replacement procedures 63
