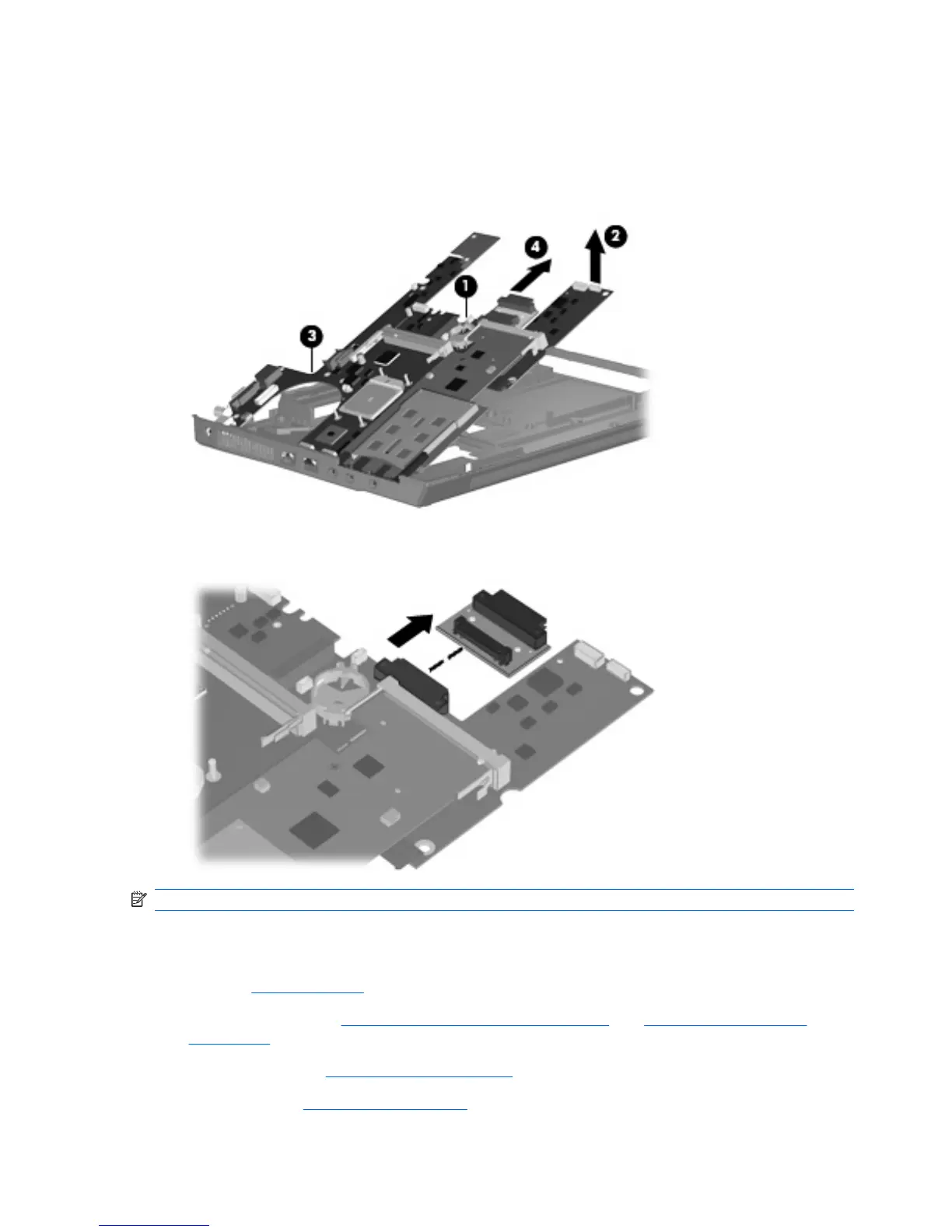

5. Use the right side of the system board (1) immediately behind the optical drive connector to lift the
right side of the system board (2) until the rear left corner of the system board (3) clears the base
enclosure.
6. Remove the system board (4) by pulling it away from the top cover at an angle until it clears the top
cover.
7.
If it is necessary to replace the optical drive connector board, pull the board away from the system
board until it disconnects from the system board.
NOTE: The optical drive connector board is available using spare part number 443820-001.
When replacing the system board, be sure that the following components are removed from the defective
system board and installed on the replacement system board:
●
SIM (see
SIM on page 49)
●
Memory modules (see
Expansion memory module on page 56 and Internal memory module
on page 66)
●
WLAN module (see
WLAN module on page 58)
●
RTC battery (see
RTC battery on page 67)
90 Chapter 4 Removal and replacement procedures ENWW

HP Compaq 6710b Specifications

General

Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	10 - 90 %
Discrete graphics card	Yes
Discrete graphics card model	Intel® GMA X3100
Maximum graphics card memory	0.384 GB
Bus type	FSB
Stepping	M0
Tjunction	105 °C
Processor cache	3 MB
Processor cores	2
Processor model	T8300
System bus rate	- GT/s
Processor family	Intel® Core™2 Duo
Processor series	Intel Core 2 Duo T8000 Series
Processor socket	Socket 479
Processor codename	Penryn
Processing Die size	107 mm²
Processor frequency	2.4 GHz
Processor cache type	L2
Processor lithography	45 nm
Processor system type	Up
Processor manufacturer	Intel
Processor front side bus	800 MHz
Processor operating modes	64-bit
ECC supported by processor	No
Thermal Design Power (TDP)	35 W
CPU multiplier (bus/core ratio)	12
Number of Processing Die Transistors	410 M
HDD speed	5400 RPM
HDD interface	SATA
Optical drive type	DVD Super Multi DL
Card reader integrated	-
Total storage capacity	160 GB
Number of HDDs installed	1
Operating system installed	Windows Vista Business
Operating system architecture	32-bit
Display diagonal	15.4 \
Display resolution	- pixels
Memory slots	2x SO-DIMM
Memory upgrade	4 GB
Internal memory	2 GB
Memory clock speed	667 MHz
Internal memory type	DDR2-SDRAM
Type	PC
Modem speed	56 Kbit/s
Power supply type	AC/DC
Wireless technology	Wi-Fi
Compatible operating systems	Windows Vista
Motherboard chipset	Intel® GM965
Audio system	HD
Pointing device	Touchpad + Scroll zone
Bluetooth version	2.0+EDR
TV-out type	S-Video
Charging port type	DC-in jack
HDMI ports quantity	0
USB 2.0 ports quantity	4
Cable lock slot type	Kensington
Battery capacity	55 Wh
Battery life (max)	5.1 h
Number of battery cells	6
AC adapter power	90 W
Product color	Black
Country of origin	China
Processor code	SLAPR
Processor ARK ID	33099
Processor package size	35 x 35 mm

Weight and Dimensions

Depth	265 mm
Width	357 mm
Weight	2600 g
Height (front)	34 mm
