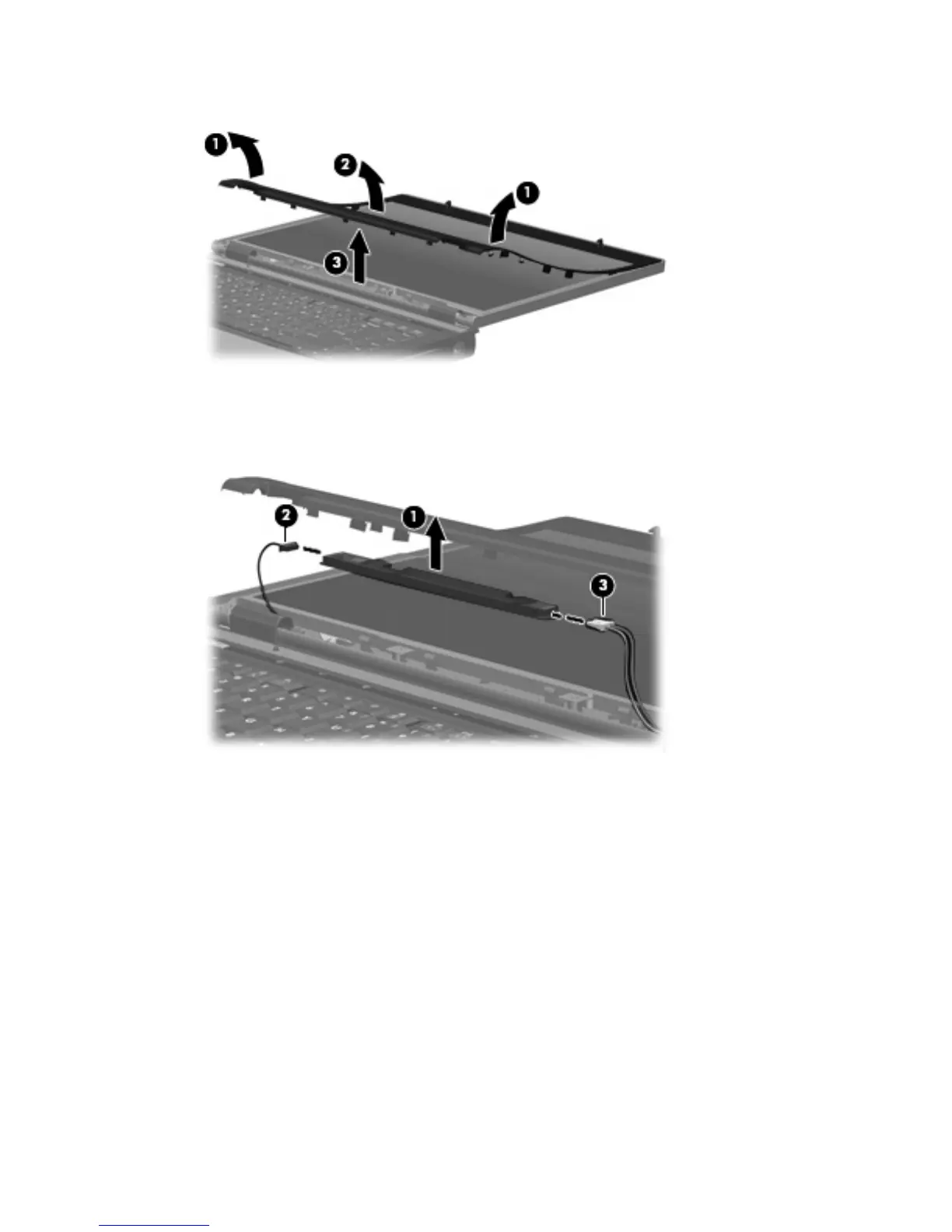

6. Release the bottom edge of the display bezel (3) from the display assembly.
7. Release the inverter (1) from the display enclosure as far as the display panel cable and backlight
cable allow.
8. Disconnect the display panel cable (2) and the backlight cable (3) from the display inverter.
9.
Remove the display inverter.
Reverse this procedure to install the display inverter.
ENWW Component replacement procedures 51
