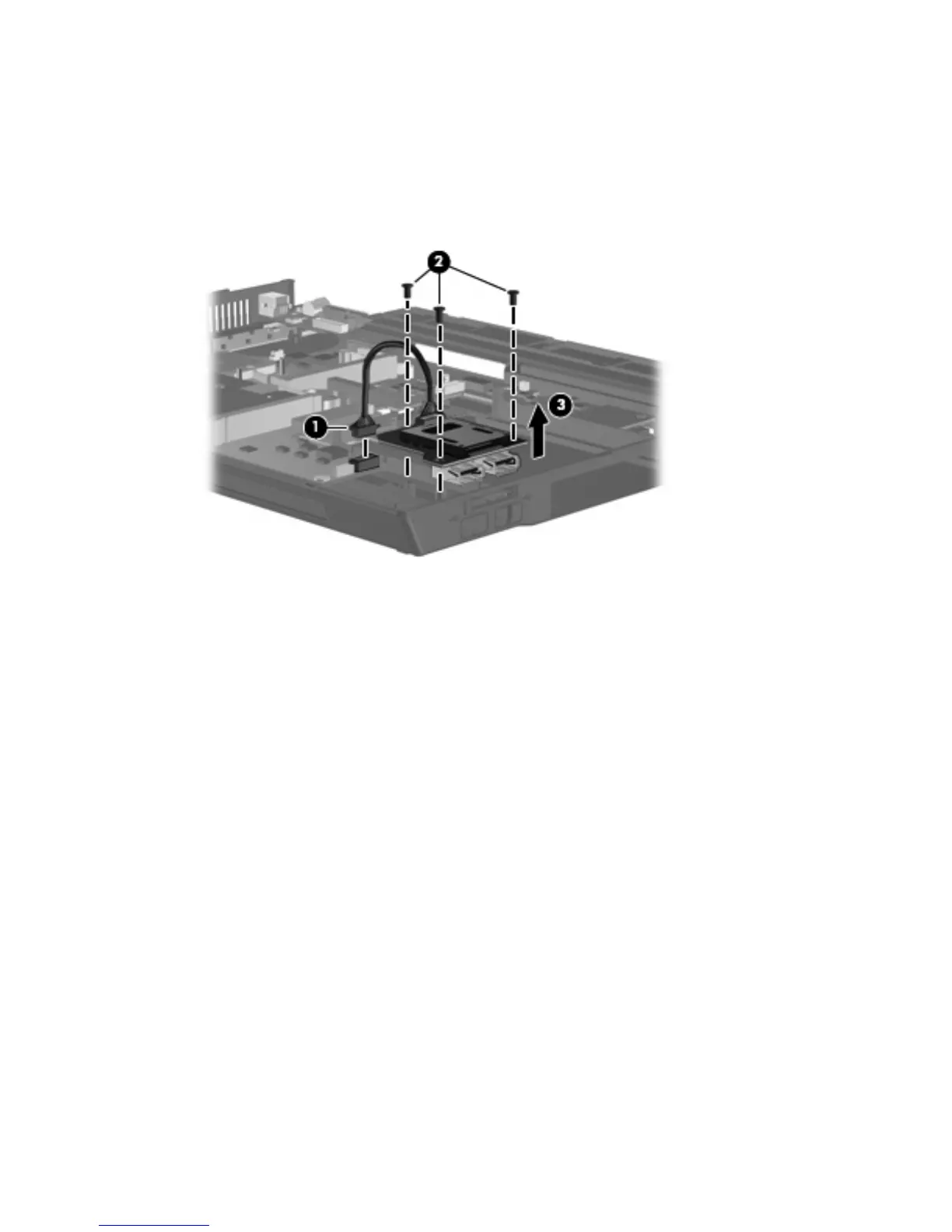

Remove the USB/Media Card Reader board:
1. Disconnect the USB/Media Card Reader board cable (1) from the system board.
2. Remove the three Phillips PM2.5×5.0 screws (2) that secure the USB/Media Card Reader board to
the computer.
3. Lift the USB/Media Card Reader board (3) straight up and remove it.
Reverse this procedure to install the USB/Media Card Reader board.
ENWW Component replacement procedures 87
