3.

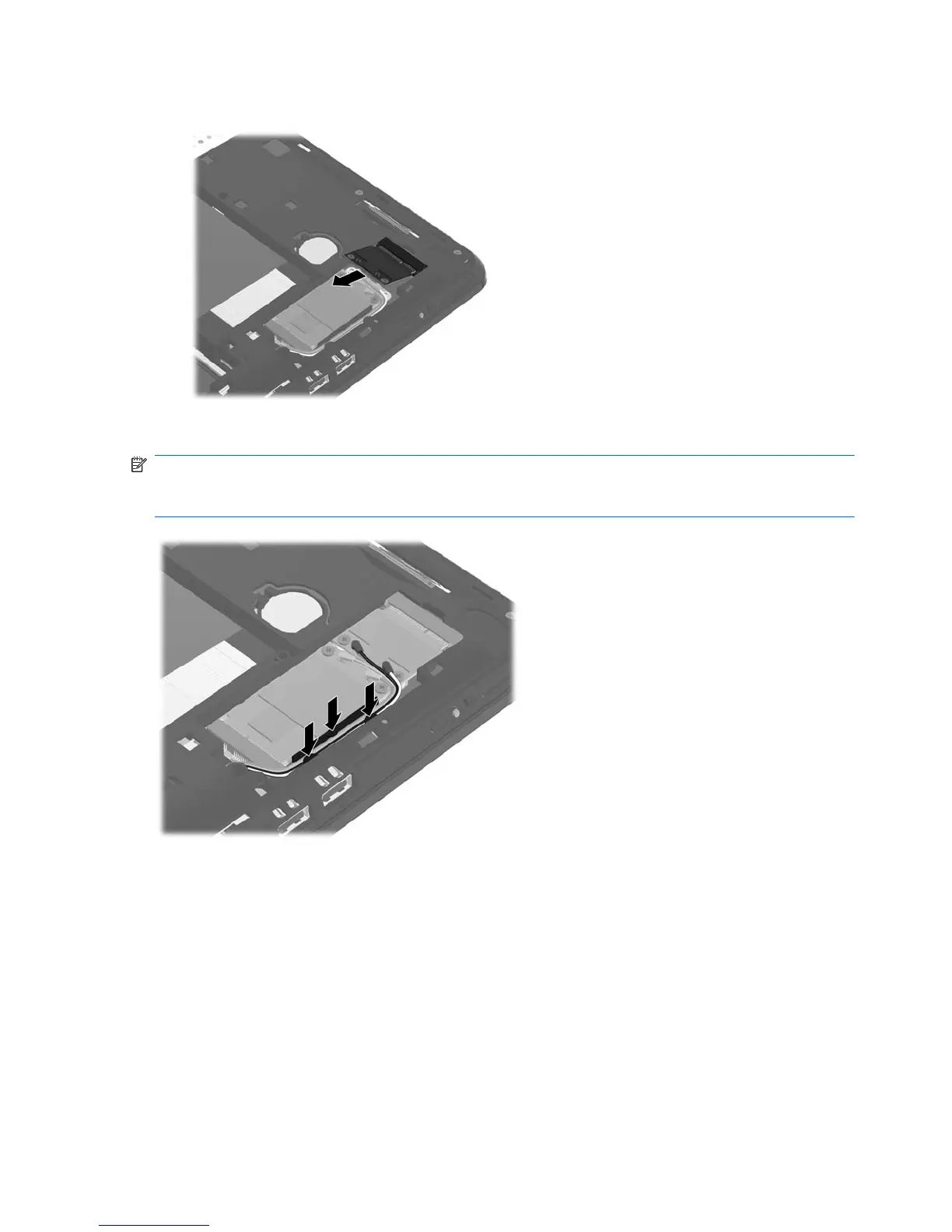

Lift up and remove the WLAN module at an angle.
Reverse this procedure to install the WLAN module.
NOTE: When replacing, press the antenna cables firmly down onto the terminals until securely
connected. Route the cables carefully to prevent potential damage when the service cover is replaced,
as shown in the illustration below.
50 Chapter 4 Removal and replacement procedures
