Technical Reference Guide 361834-001 2-9
System Overview

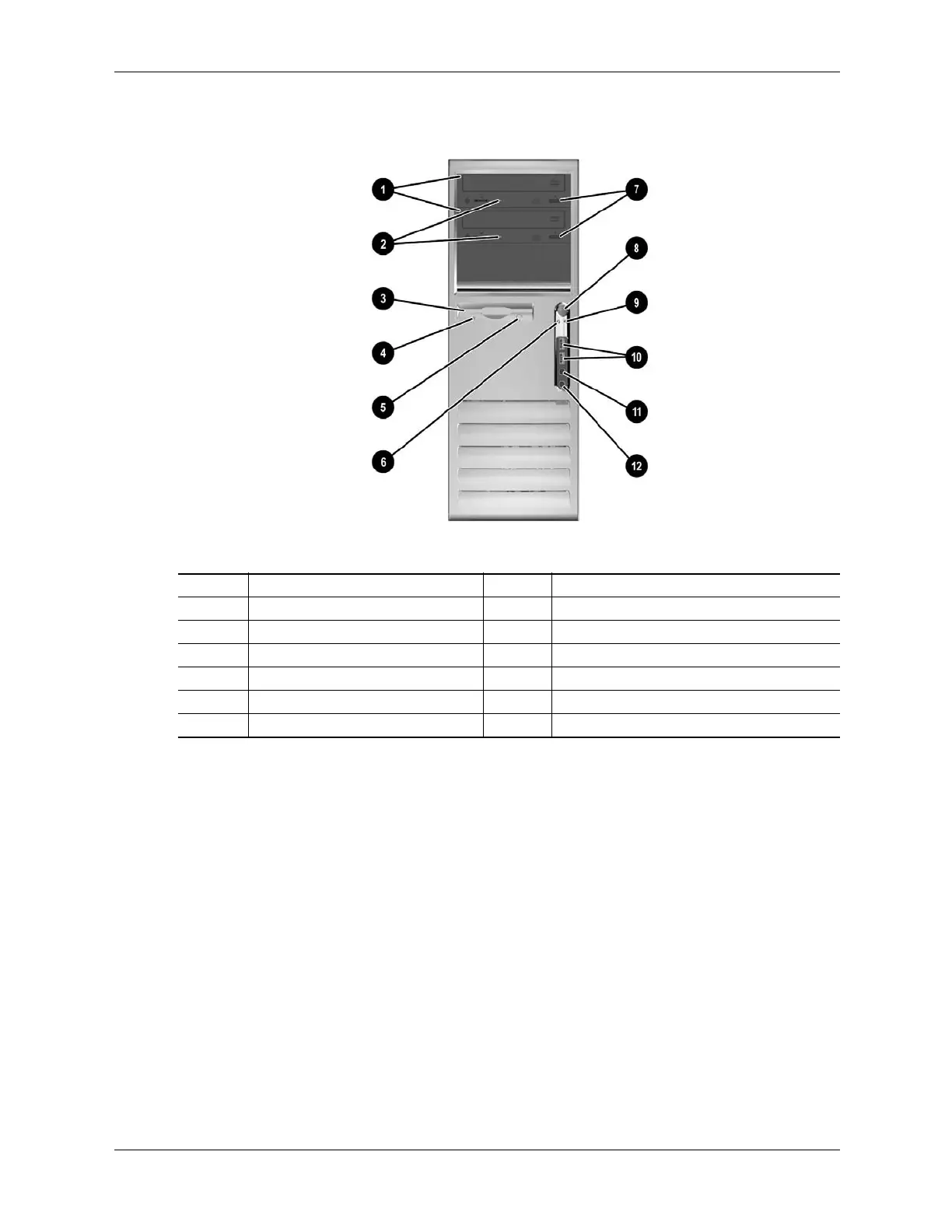

Figure 2-6 shows the front panel components of the Convertable Minitower (CMT) form factor.
Figure 2-6. HP Compaq dc7100 CMT Front View
Item Description Item Decription
1 CD-ROM drive 7 CD-ROM drive open/close button
2 CD-ROM drive activity LED 8 Power button
3 Diskette drive media door 9 Power LED
4 Diskette drive activity LED 10 USB ports 7, 8
5 Diskette drive eject button 11 Headphone audio Out jack
6 Hard drive activity LED 12 Microphone audio In jack
