Technical Reference Guide 361834-001 2-11
System Overview

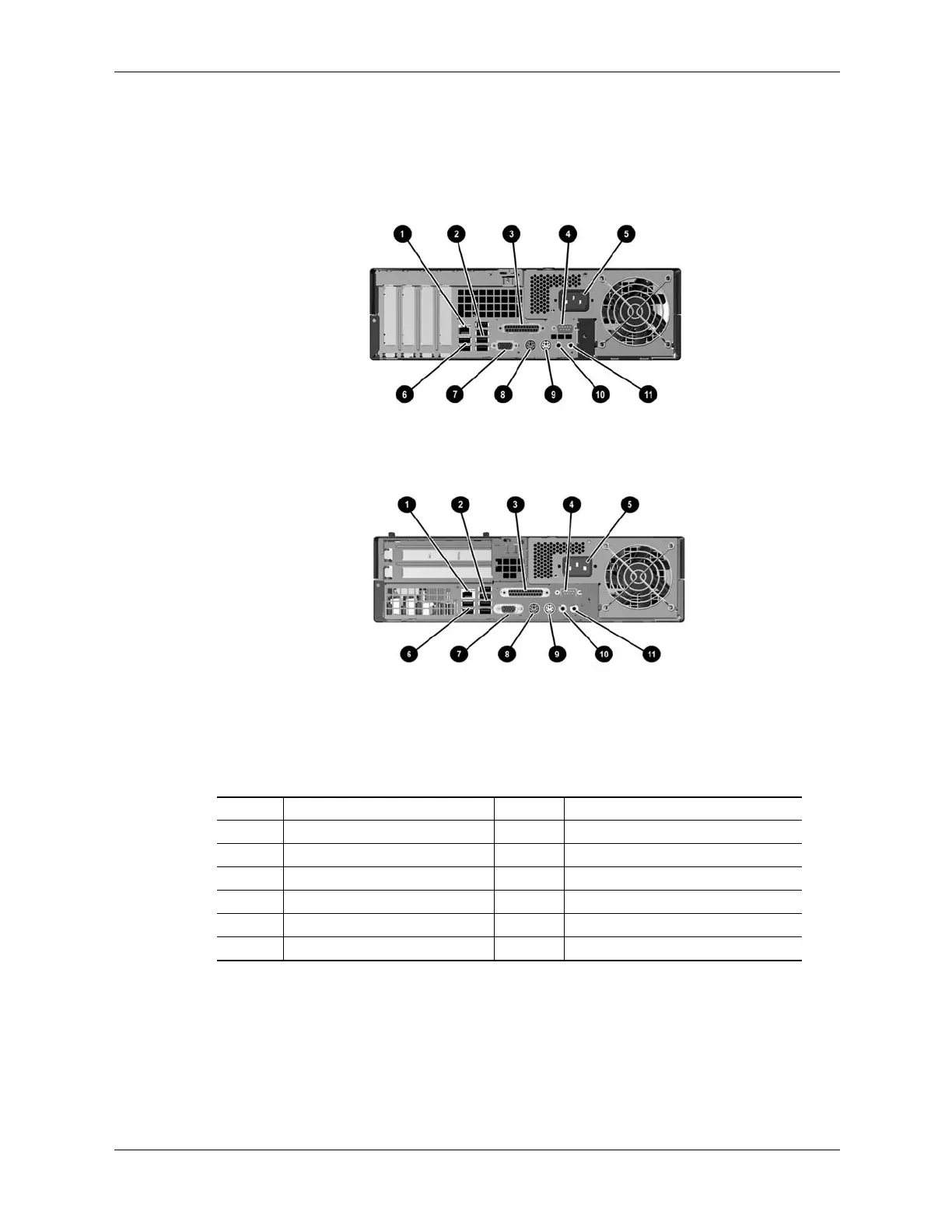

Figure 2-8 shows the rear views of the SFF form factor. Two configurations are available:
■ Without cardcage - Accepts two half-height PCI 2.3 cards, two half-height PCI Express cards
■ With card cage - Accepts two full-height PCI 2.3 cards only
Figure 2-8. HP Compaq dc7100 SFF, Rear Views
Item Description Item Description
1 NIC (LAN) connector (RJ-45) 7 VGA monitor connector (DB-15)
2 USB ports 3 - 6 8 Mouse connector (PS/2)
3 Parallel port (DB-25) 9 Keyboard connector (PS/2)
4 Serial port (DB-9) 10 Line audio In
5 AC input connector 11 Headphone / Speaker audio Out
6USB ports 1, 2 -- --
SFF chassis without card cage
SFF Chassis with card cage
