Technical Reference Guide 361834-001 2-13
System Overview
Figure 2-10 shows the rear view of the MT form factor.
NOTE:
[1] Switch not present on SKUs that feature auto-ranging power supply.

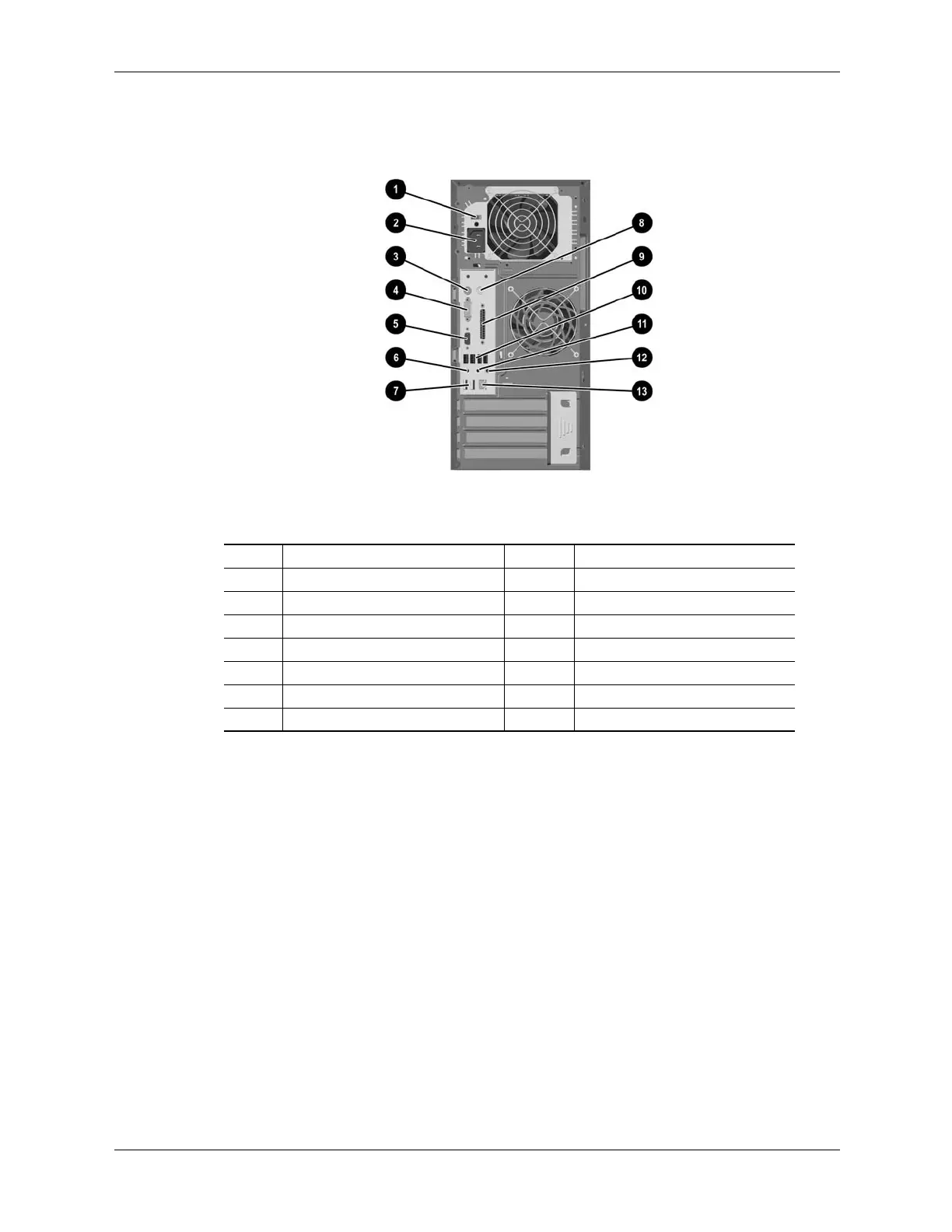

Figure 2-10. HP Compaq dx6100 MT, Rear View
Item Description Item Description
1 AC voltage select switch 8 Mouse connector (PS/2)
2 AC line connector Microphone In jack 9 Parallel port connctor (DB-25)
3 Keyboard connector (PS/2) 10 USB ports 1 - 4
4 Serial port connector (DB-9) 11 Line audio Out jack
5 VGA monitor connector (B-15) 12 Line audio In jack
6 Microphone In jack 13 NIC (LAN) connector (RJ-45)
7USB ports 5, 6 -- --
