HP Compaq Presario CQ61 - Hdmi

Connector pin assignments
Maintenance and Service Guide 9–3

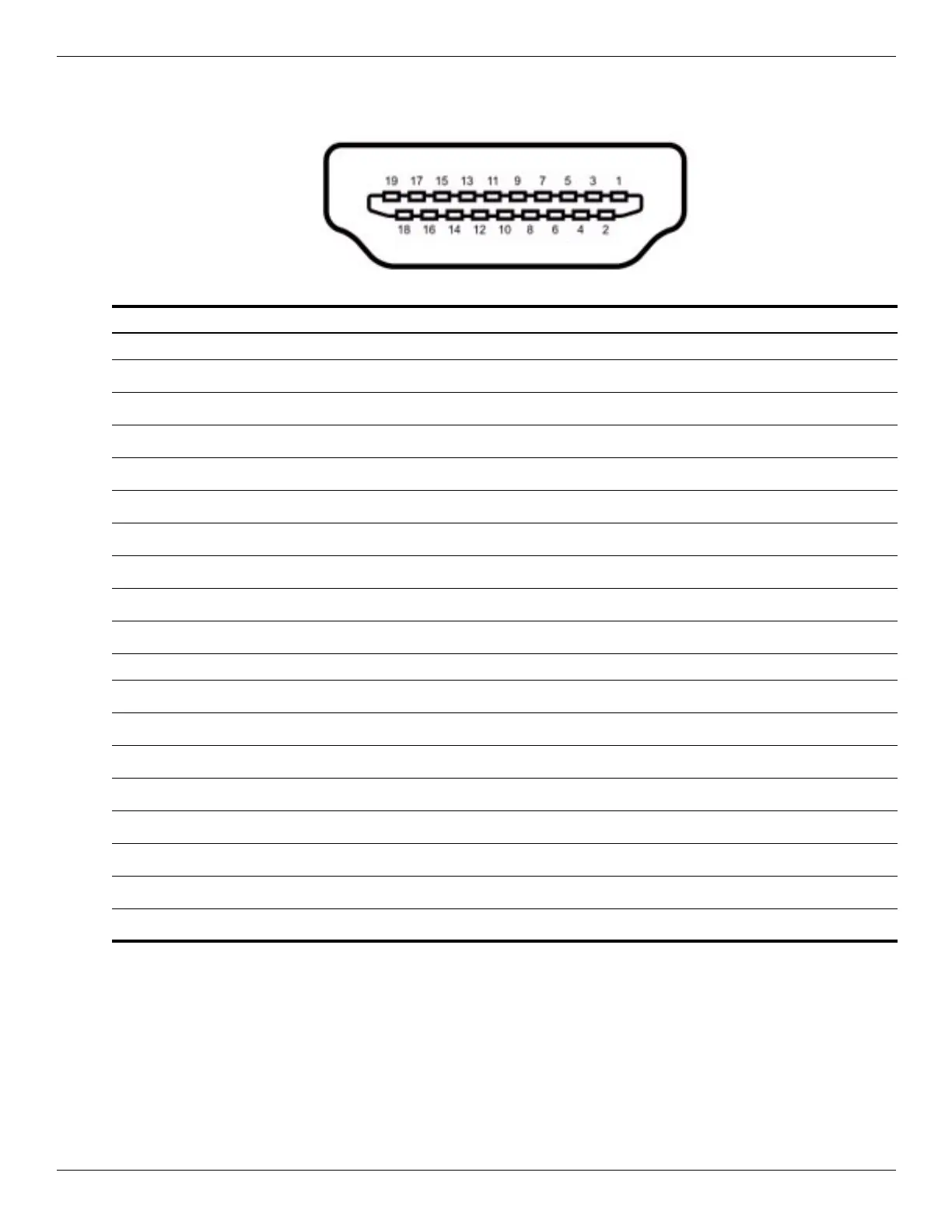

HDMI
Pin Signal
1 Transition minimized differential signal (TDMS) data 2+
2
Transition minimized differential signal (TDMS) data 2 shield
3
Transition minimized differential signal (TDMS) data 2-
4
Transition minimized differential signal (TDMS) data 1+
5
Transition minimized differential signal (TDMS) data 1 shield
6
Transition minimized differential signal (TDMS) data 1 shield
7
Transition minimized differential signal (TDMS) data 0+
8
Transition minimized differential signal (TDMS) data 0 shield
9
Transition minimized differential signal (TDMS) data 0-
10
Transition minimized differential signal (TDMS) Clock +
11 Transition minimized differential signal (TDMS) data clock shield
12
Transition minimized differential signal (TDMS) data clock-
13
Consumer electronics control (CEC)
14
Not connected
15
Display data channel (DDC) clock
16
Display data channel (DDC) data
17
Ground
18
+5V Power
19
Hot plug detect
