Secondary transfer roller
CAUTION: Do not touch the spongy roller surface unless you are replacing the roller. Skin oils on the
roller can cause image quality problems.
1. Open the right-door assembly.

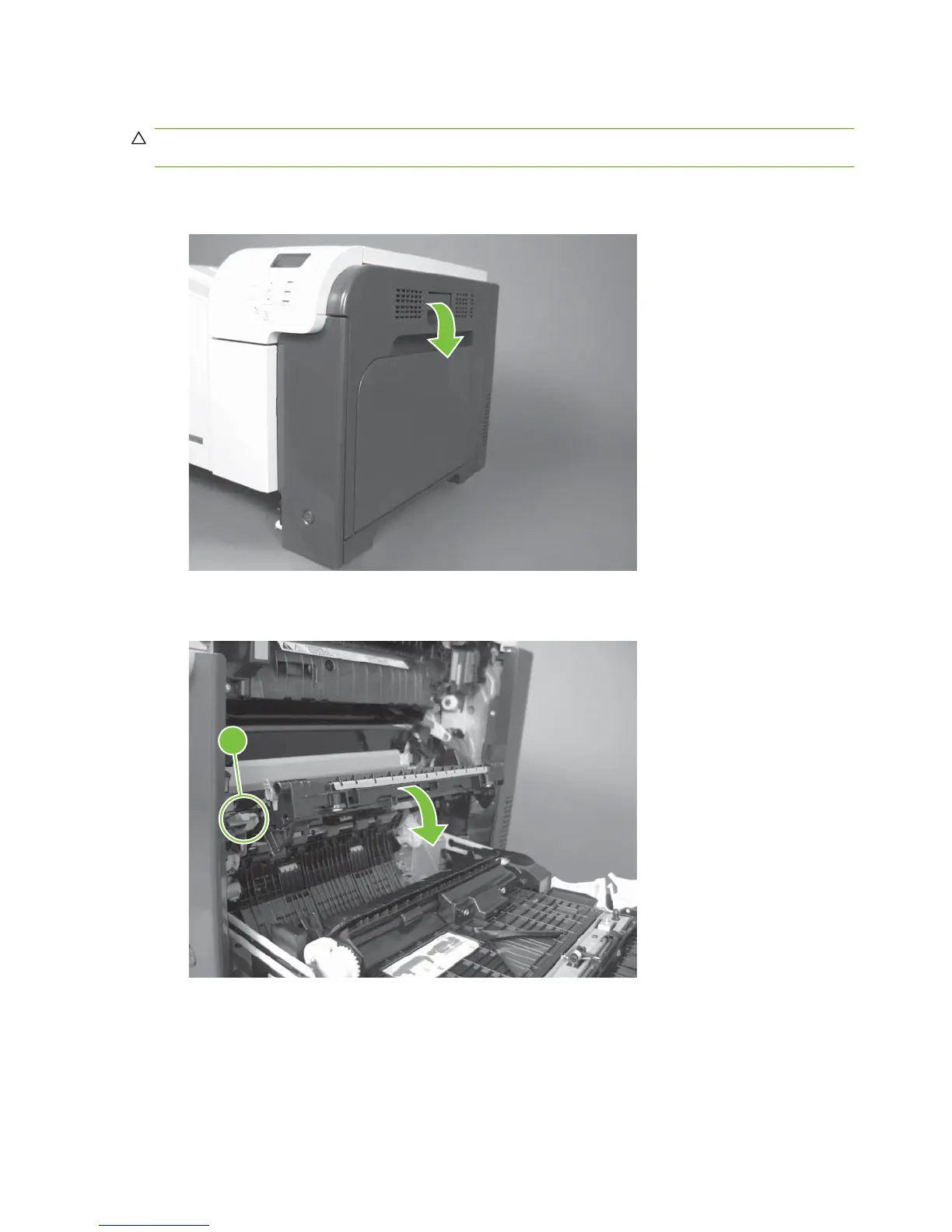

Figure 6-27 Remove the transfer roller (1 of 3)
2. Use the blue lever (callout 1) to lower the secondary transfer assembly.
Figure 6-28 Remove the transfer roller (2 of 3)
1
184 Chapter 6 Removal and replacement ENWW
