5. Remove one screw (callout 2), and then remove the cover (callout 3).

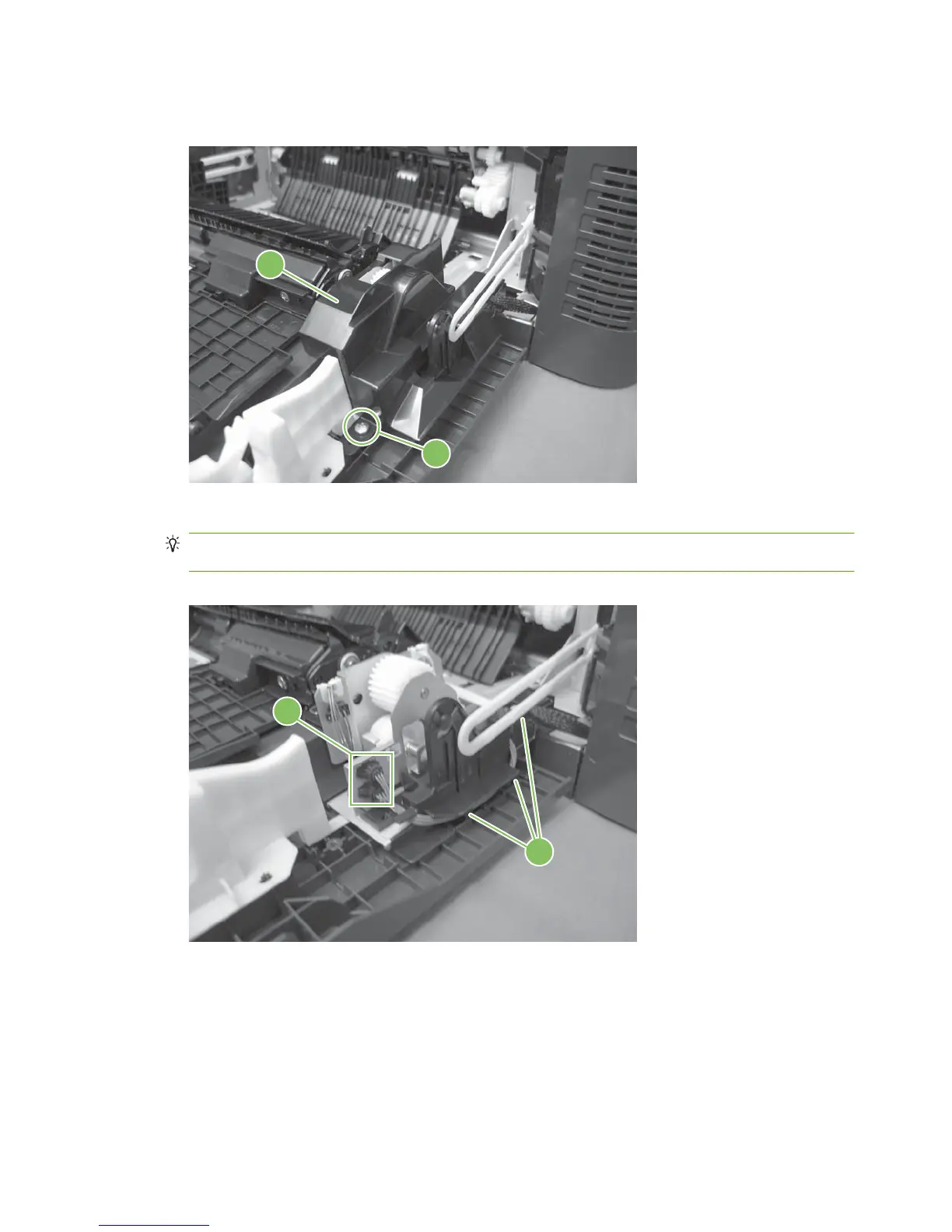

Figure 6-48 Remove the right-door assembly (5 of 8)
2
3
6. Disconnect two connectors (callout 4), and then release the wire harness from the guide (callout 5).
TIP: It is easier to disconnect the lower connector if you first remove the wire harnesses from the
guide.
Figure 6-49 Remove the right-door assembly (6 of 8)
4
5
196 Chapter 6 Removal and replacement ENWW
