Reinstall the high-voltage power supply upper
When you reinstall the power supply, look through the holes in the PCA and make sure that the high-
voltage contact springs are correctly seated against the PCA.
NOTE: For a replacement power supply, remove one wire harness (callout 1) and then install it on the
replacement power supply.

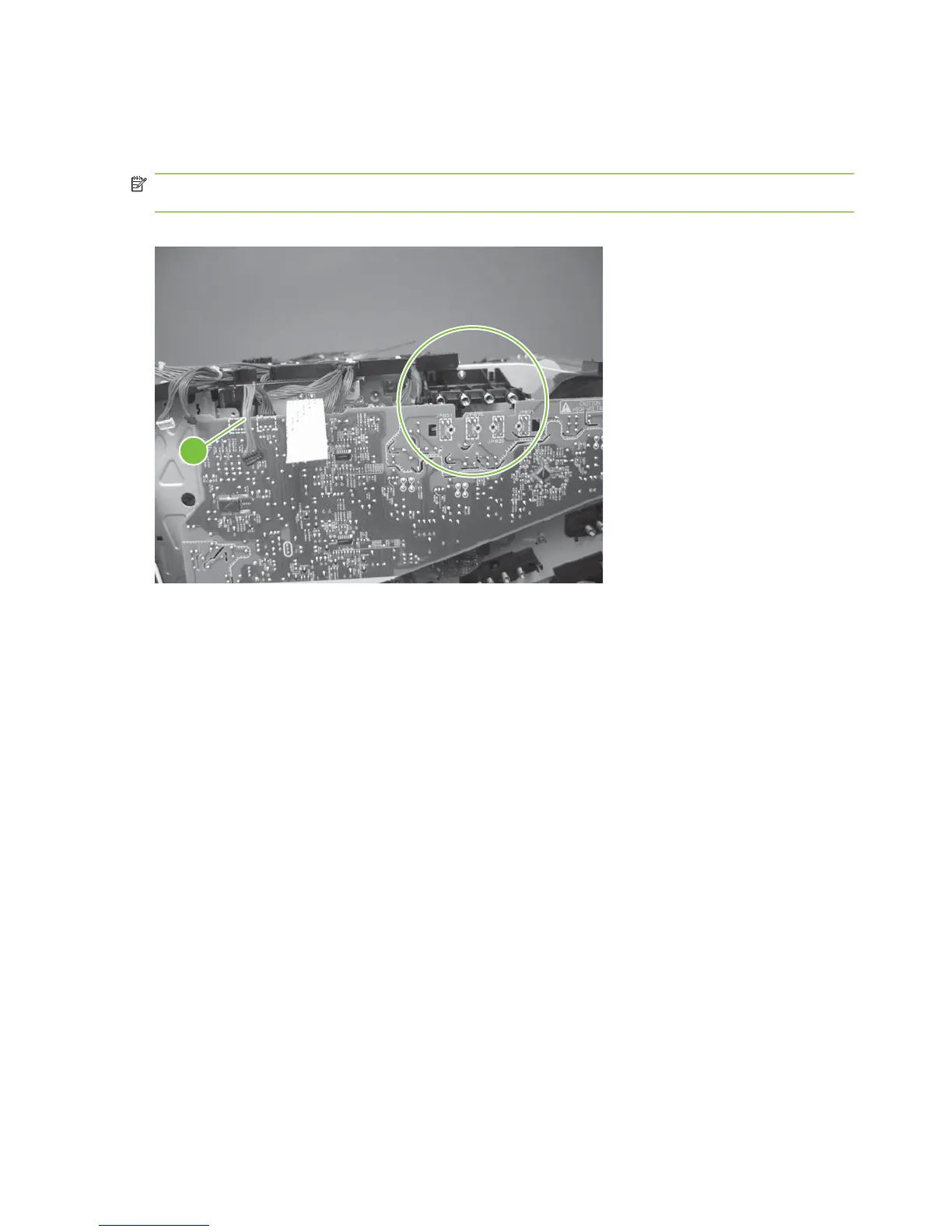

Figure 6-189 Reinstall the high-voltage power supply upper
1
282 Chapter 6 Removal and replacement ENWW
