HP Designjet 4000 Setup Instructions

7

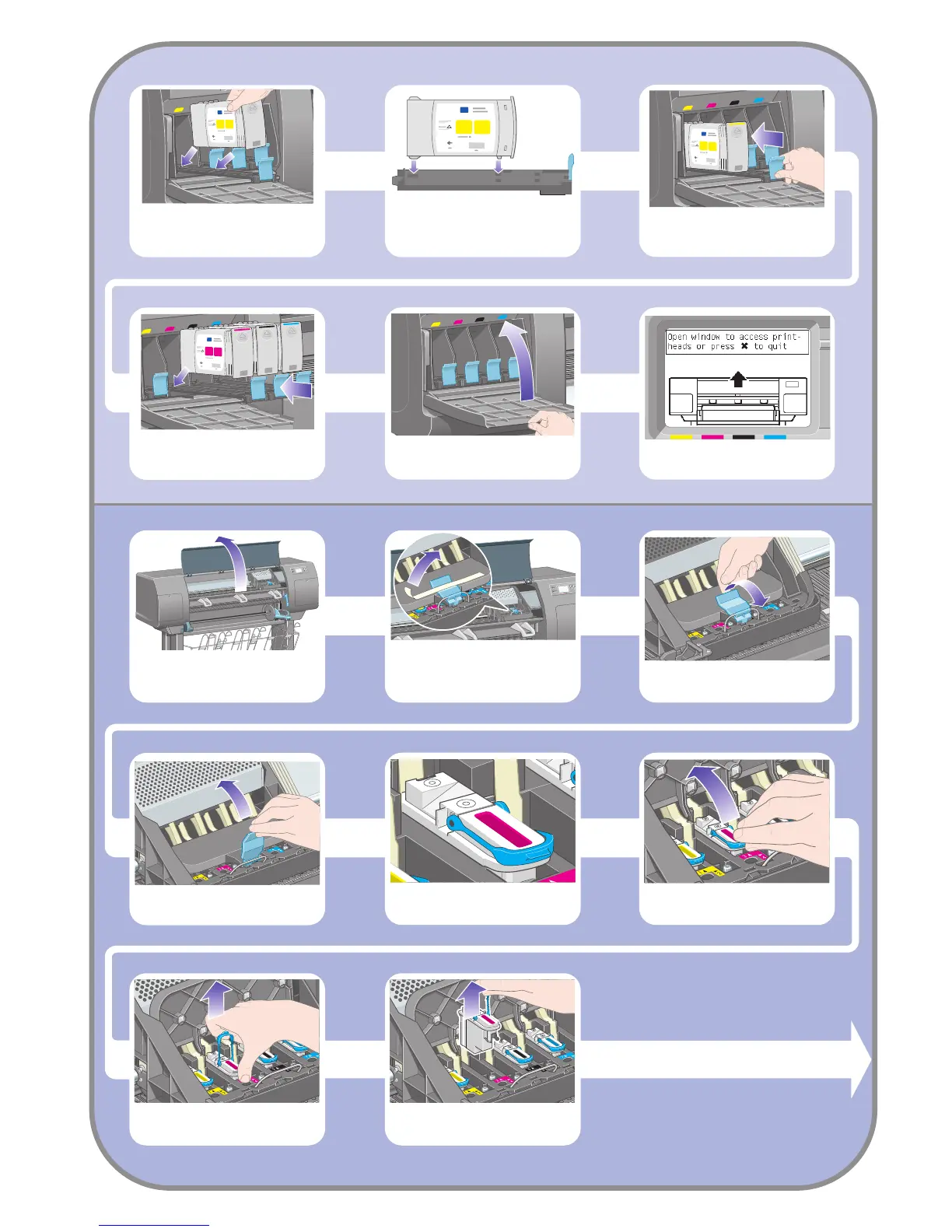

Close the ink cartridge door.
Wait (about a minute) until you see this front
panel message.
Lift up the cover. This will give you access to the
setup printheads.
Open the printer window.
To remove a setup printhead, lift up the blue
handle.
Before removing the setup printheads, look at the
window on top of each one and check that the
printhead contains ink.
Pull up and release the latch on top of the
carriage assembly.
Using the blue handle, gently disengage the setup
printhead from the carriage..
Lift the setup printhead until it is released from
the carriage assembly. Then remove the other
setup printheads.
8 Removing setup printheads
Position the ink cartridge at the rear of the drawer
as indicated.
Push the ink cartridge drawer back into the
printer until it locks into position.
Following the same instructions, install the other
three ink cartridges.
Remove the packing tape that is holding down
the printhead carriage latch.
Place the ink cartridge onto the ink cartridge
drawer. Note that there are marks on the drawer
showing the correct location.

HP Designjet 4000 Specifications

General

Print Technology	Thermal Inkjet
Maximum Print Width	42 inches
Memory	256 MB
Ink Types	Dye-based (color), pigment-based (black)
Number of Ink Cartridges	4
Media Types Supported	Bond and coated paper, technical paper, film, photographic paper, backlit
Interface	USB 2.0, Ethernet
Maximum Print Size	42 inches (1066.8 mm) wide, unlimited length
Roll Maximum Outer Diameter	13.5 cm
Roll Width	24 to 42 inches
Hard Disk Capacity	40 GB
Operating Systems	Windows, Mac OS X
