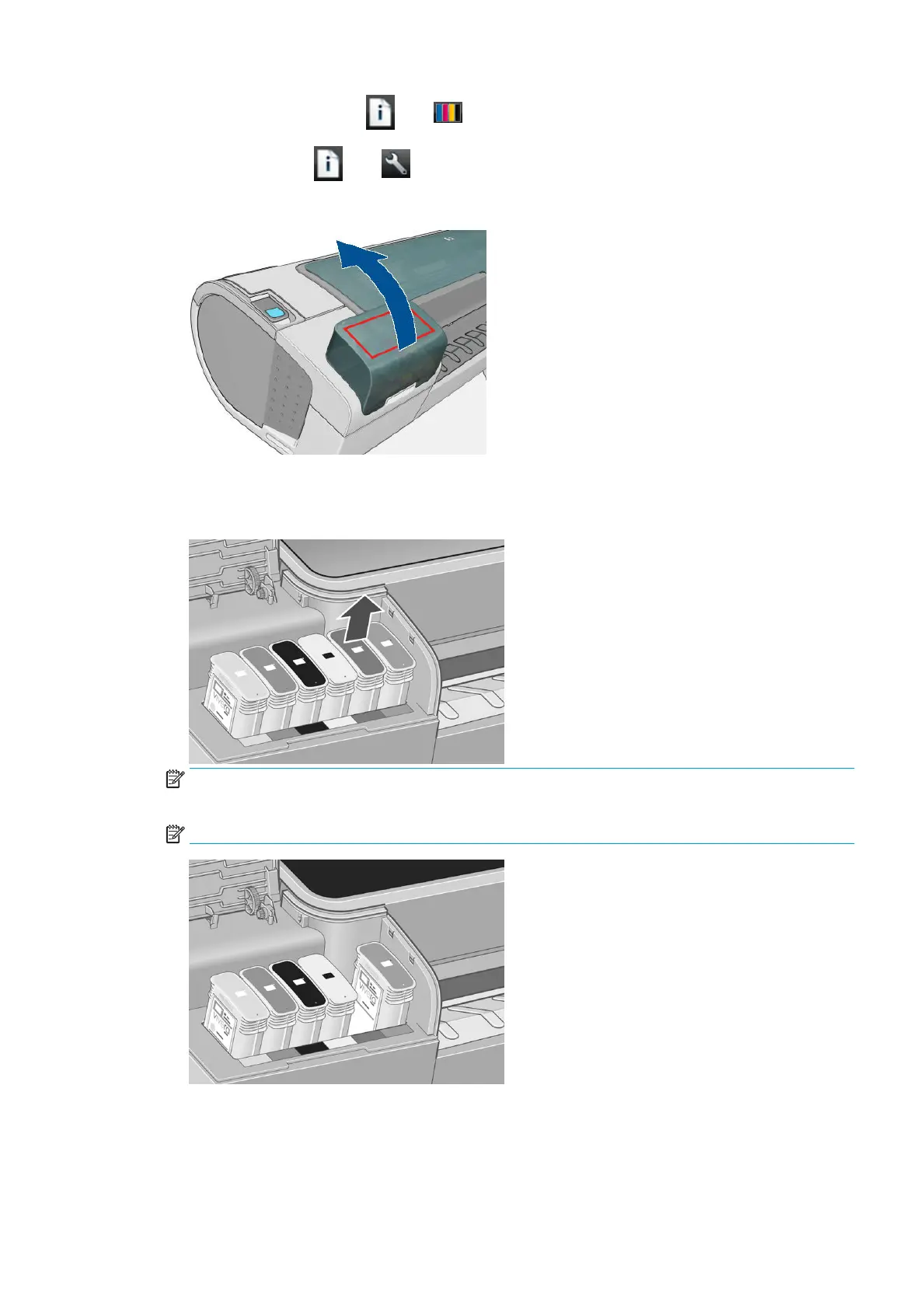

From the front panel, press , then , then Replace ink cartridges.

Alternatively, press , then , then Ink > Replace ink cartridges.

2. Open the ink cartridge cover on the left-hand side of the printer.

. Grip the cartridge you wish to remove.

4. Pull the cartridge straight up.

NOTE: Avoid touching the end of the cartridge that is inserted into the printer, as there may be ink on

the connection.

NOTE: Avoid storing partially used ink cartridges.

5. The front-panel display identies the missing ink cartridge.

ENWW Remove an ink cartridge 103
