Component identification 12
System board

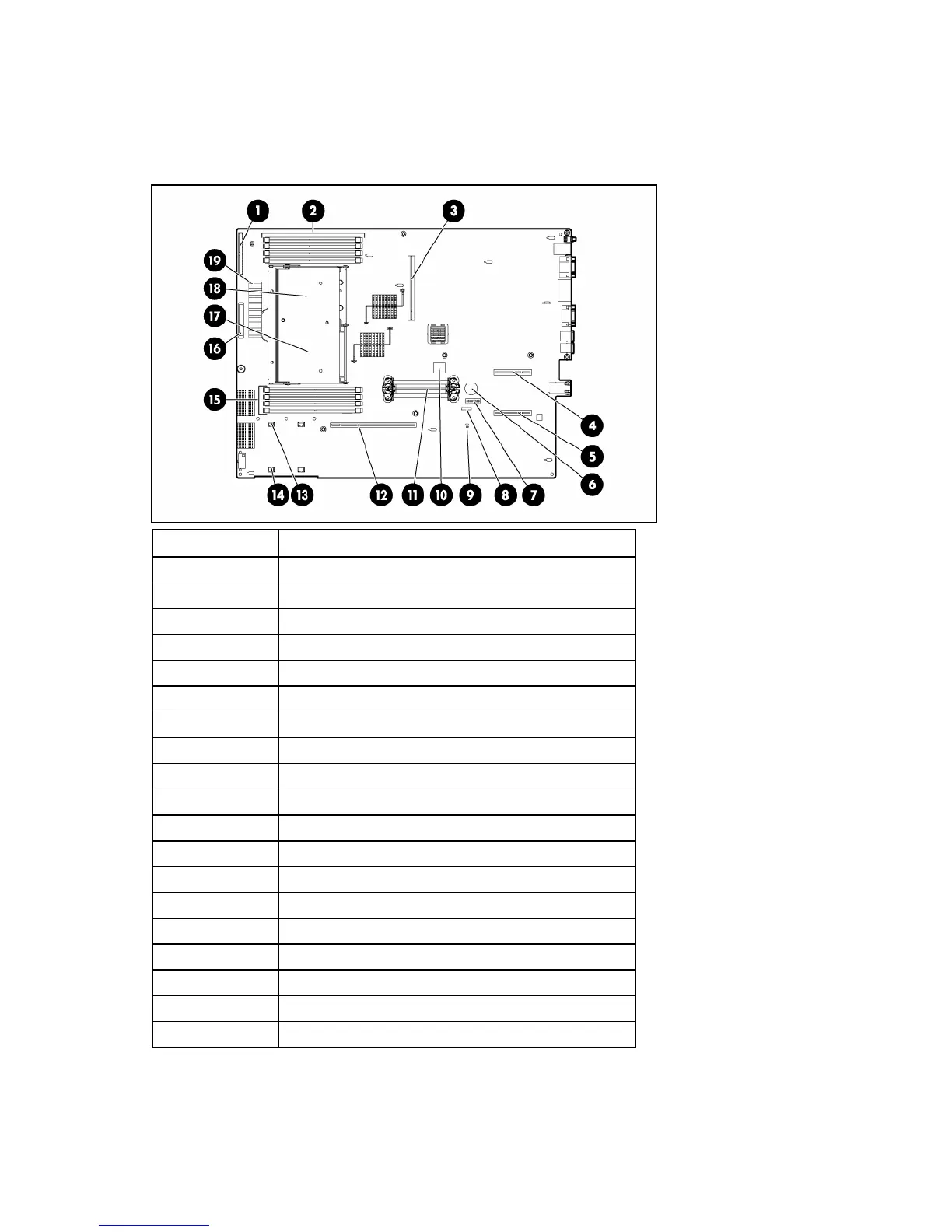

System board components (6-fan configuration)
Item Description
1 Fan board connector
2 DIMM slots (1-4)
3 Power supply backplane connector
4 PCIe slot 1
5 PCIe slot 2
6 System battery
7 System maintenance switch
8 Diagnostic LEDs
9 NMI jumper
10 Internal USB connector*
11 PPM 2 (for second processor)
12 PCI riser cage connector
13 Fan 2 connector
14 Fan 1 connector
15 DIMM slots (5-8)
16 Multibay interface connector
17 Processor socket 2
18 Processor socket 1
19 PPM 1 (embedded)
* The lower USB connector is unavailable.
