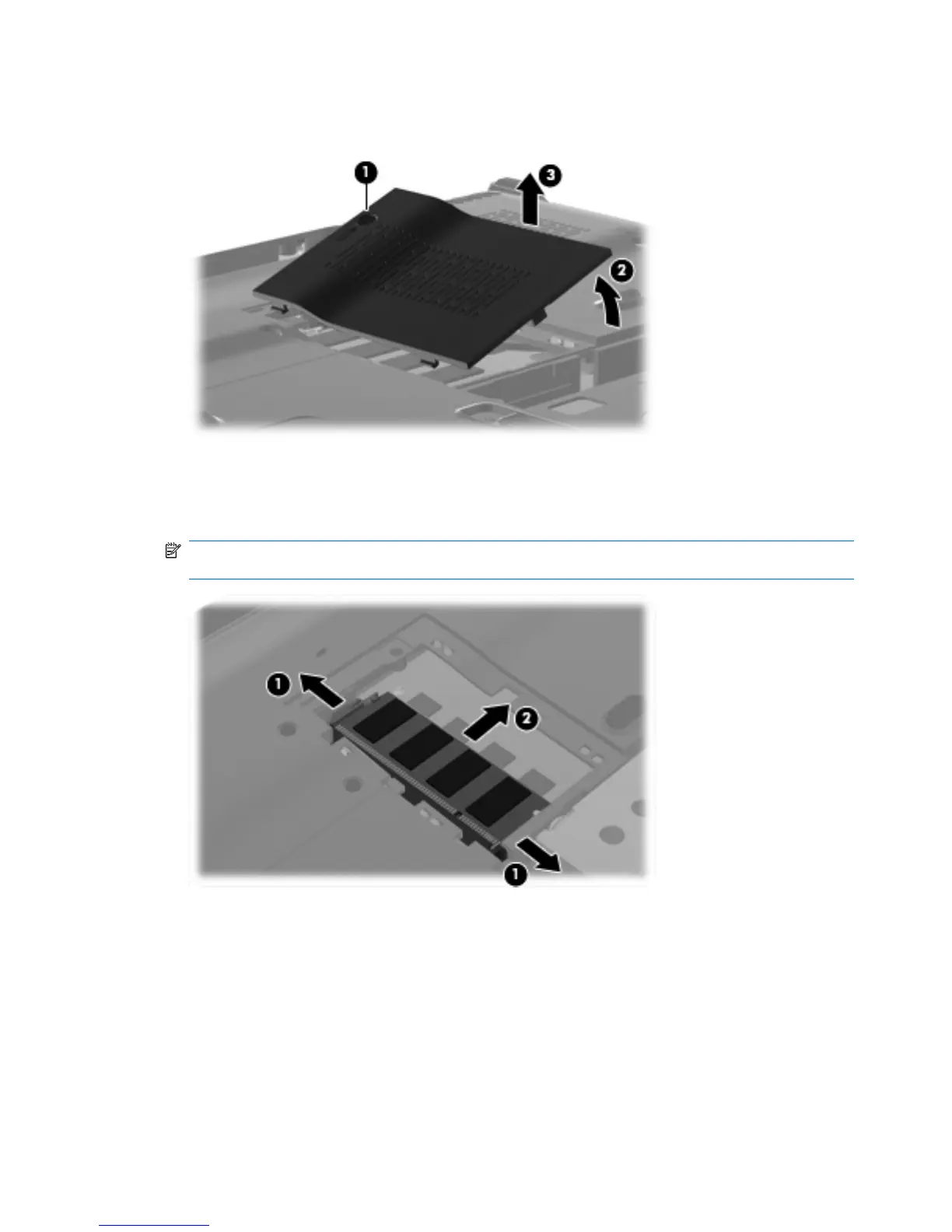

3. Lift the right side of the cover (2), swing it to the left, and remove the cover (3). The memory module
compartment cover is included in the Plastics Kit, spare part number 486833-001.
4. Spread the retaining tabs (1) on each side of the memory module slot to release the memory
module. (The edge of the module opposite the slot rises away from the computer.)
5. Remove the module (2) by pulling it away from the slot at an angle.
NOTE: Memory modules are designed with a notch to prevent incorrect insertion into the memory
module slot.
Reverse this procedure to install a memory module.
68 Chapter 4 Removal and replacement procedures
