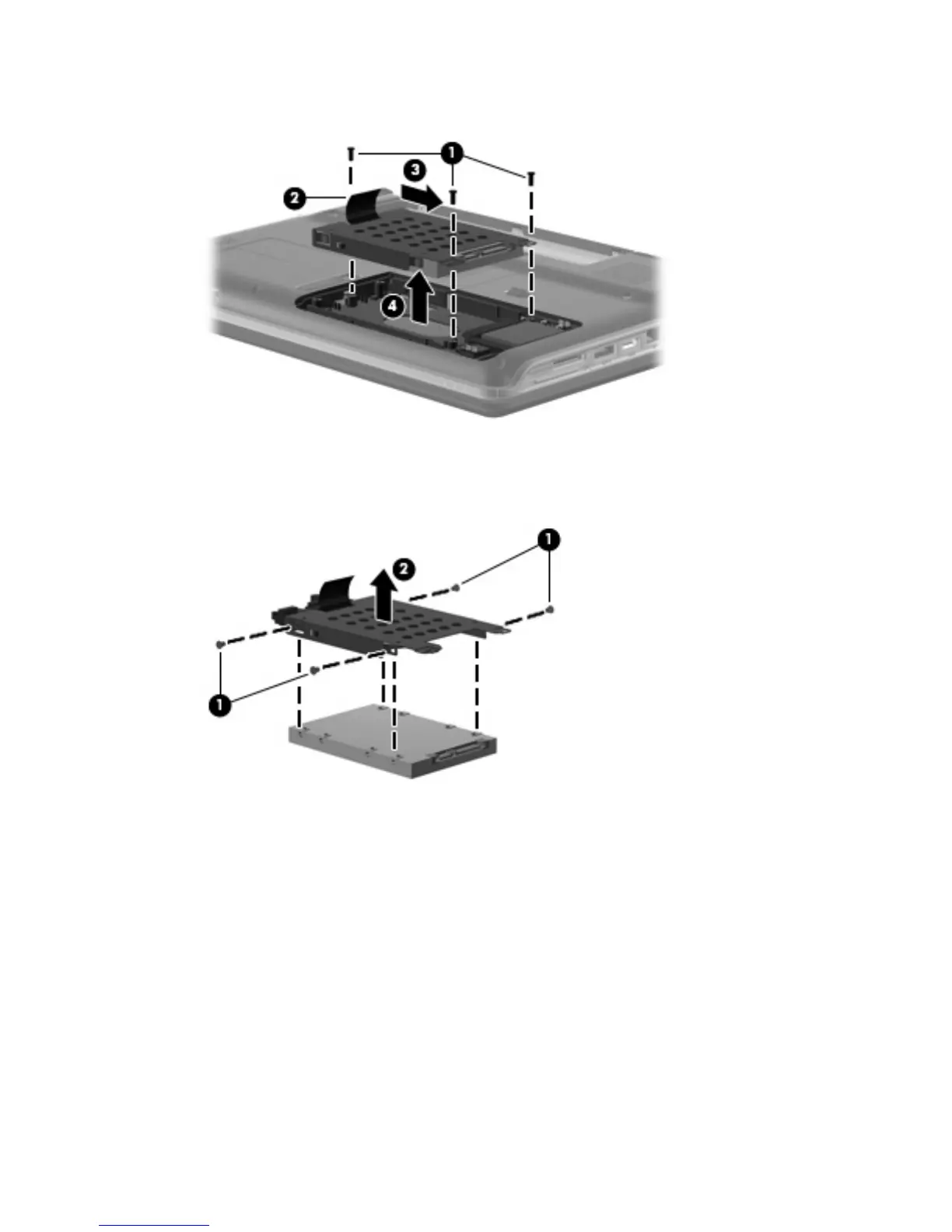

18. Remove the hard drive from the hard drive bay (4).
19. If it is necessary to replace the hard drive bracket, remove the four Phillips PM3.0×4.0
screws (1) that secure the hard drive bracket to the hard drive.
20. Lift the bracket (2) straight up to remove it from the hard drive.
21. Disconnect the wireless antenna wires (1) from the from the wireless module.
22. Remove the 2 Phillips PM2.0×4.0 screws (2) securing the WLAN module to the computer.
ENWW Component replacement procedures 9
