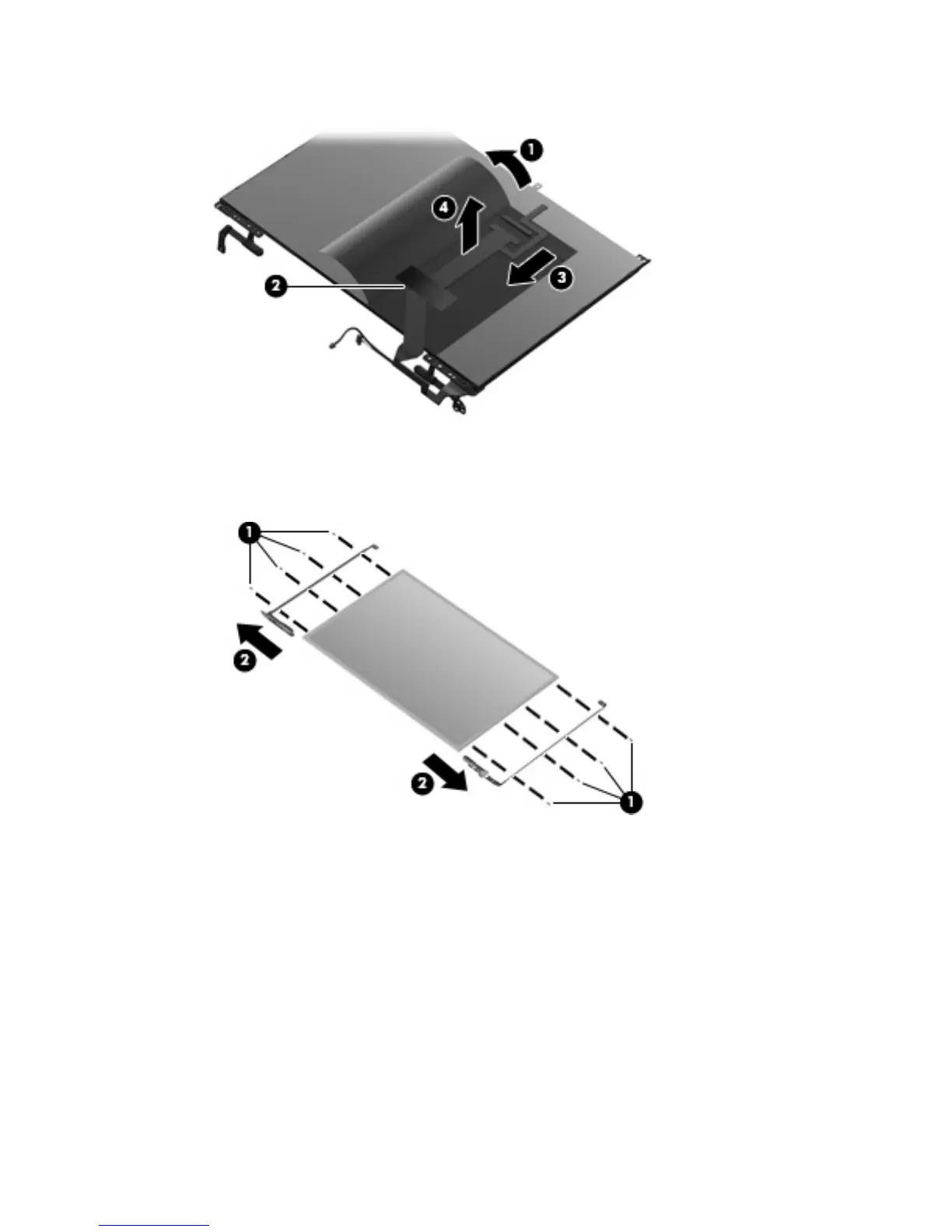

12. Remove the display panel cable (4).
13. If it is necessary to replace the standard display hinges, remove the eight Phillips PM2.0×4.0
screws (1) that secure the hinges to the display panel.
14. Remove the display hinges (2).
15. If it is necessary to replace the standard display wireless antenna transceivers and cables, remove
the two Phillips PM2.5×4.0 screws (1) that secure each transceiver to the display enclosure.
16. Remove the wireless antenna cables from the clips (2) built into the display enclosure.
17. Detach the wireless antenna transceivers (3) from the display enclosure.
ENWW Component replacement procedures 17
