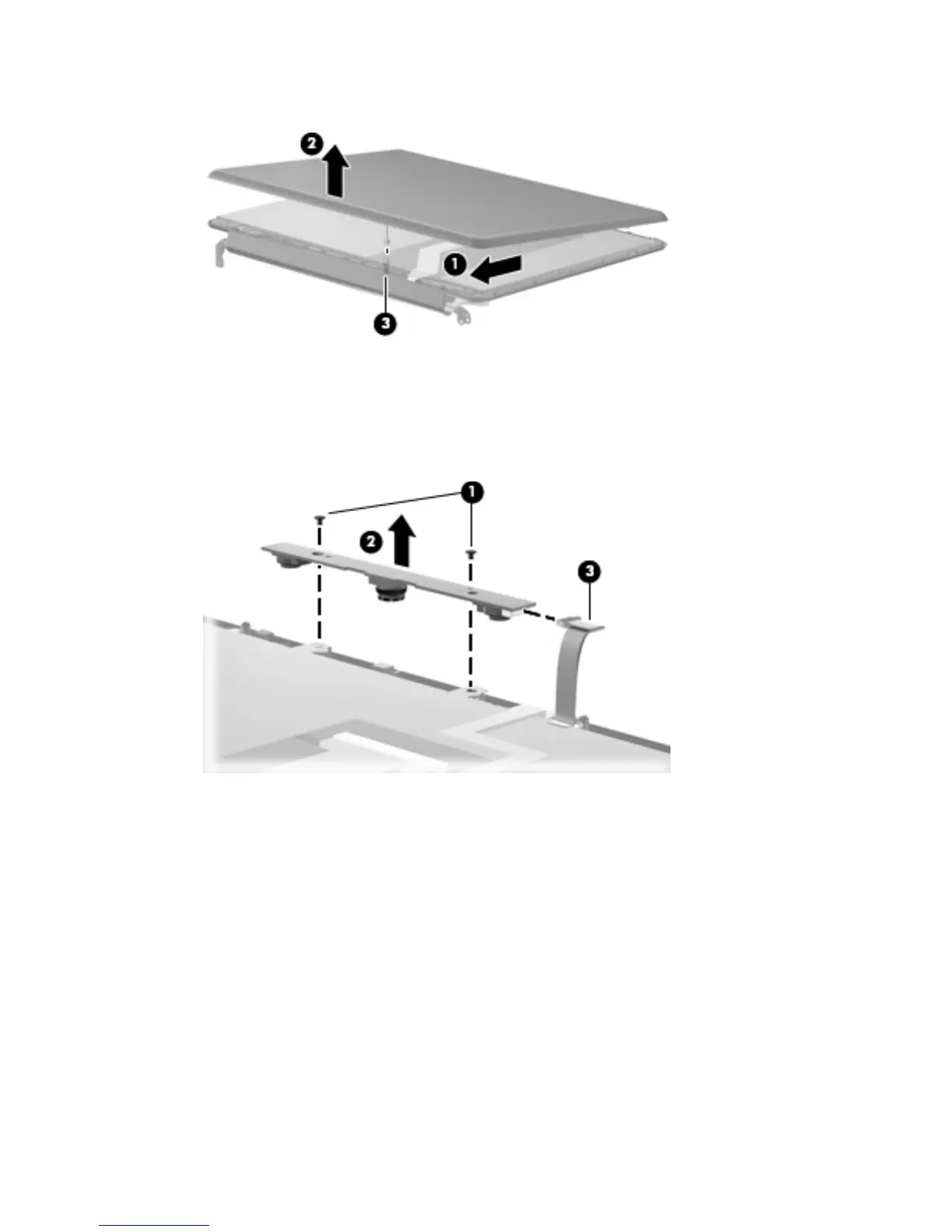

4. Disconnect the LED board from the enclosure (3) to remove the enclosure.
5. If it is necessary to replace the camera/microphone assembly, remove the two Phillips PM2.5×4.0
screws (1) that secure the camera/microphone module.
6. Lift the module out as far as the camera/microphone module cable allows (2).
7. Disconnect the camera/microphone module cable (3) from the camera/microphone module.
8. If it is necessary to replace the Flush Glass display panel cable, turn the display assembly over.
9. Release the foil shield covering the display panel cable (1).
10. Remove the tape (2) securing the cable to the display panel.
11. Disconnect the display panel cable (3) from the display panel.
ENWW Component replacement procedures 19
