HP Elite 7000 - Microtower PC

HP Elite 7000 MT Series 589095-001 page 2

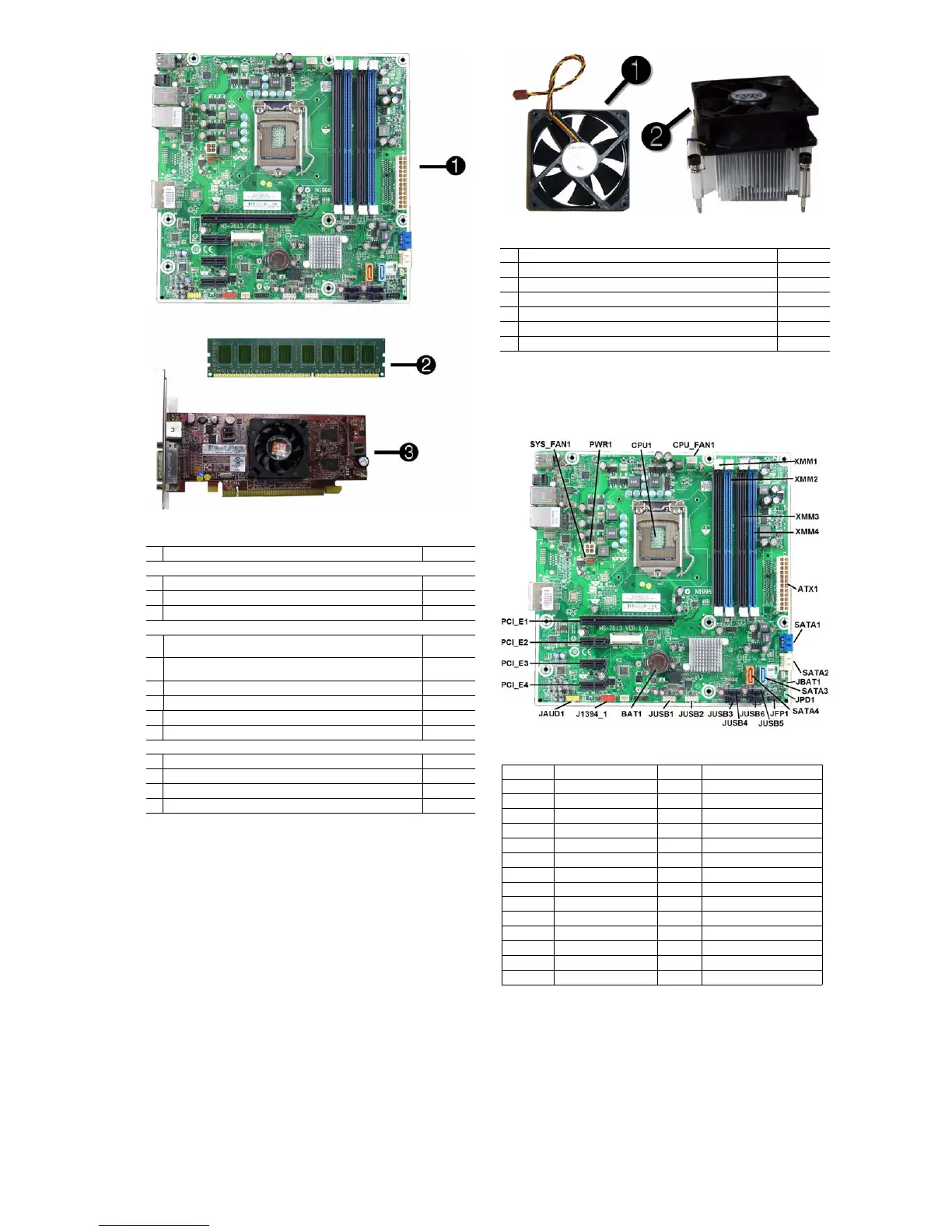

System Board
Standard and Optional Boards
1 System board, includes heat sink backplate 586371-001
Memory modules (DDR3, PC3-10600)**
*4 GB
585157-001
*2 GB
576110-001
21 GB
576109-001
Other boards
3 ATI Radeon HD 4550 256-MB Dual Head graphics adapter (PCIe x16),
includes bracket
538051-001
* ATI Radeon HD 4650 1-GB Dual Head graphics adapter (PCIe x16),
includes bracket
578174-001
* nVidia GeForce GT230 1.5-GB graphics adapter, includes bracket 586381-001
* nVidia GeForce G210 512-MB graphics adapter, includes bracket 586382-001
* Intel Pro 1000 PT Gb Ethernet PCIe NIC, includes bracket 490367-001
* LSI PCIe x1 56K International SoftModem, includes bracket 490689-001
Intel Core2 Quad processors (8-MB L2 cache, 1333-MHz FSB; LGA 1156 socket)
* i7-8xx, 3.06-GHz processor 586379-001
* i7-870, 2.93-GHz processor 586378-001
* i7-860, 2.80-GHz processor 586377-001
* i5-750, 2.66-GHz processor 586376-001
* Not shown
** Note that the DIMM insertion order is sockets 2,4,1,3.
Miscellaneous Parts
1 Chassis fan 449207-001
2 Heat sink with alcohol pad and factory-applied thermal grease 586374-001
* Heat sink backplate 586375-001
* Rubber feet 530593-001
* Mouse, optical, black 537749-001
* Mouse, USB laser 570580-001
* USB-powered speakers 466618-001
*Not shown
LP = Low profile
System Board Connectors and Jumpers (position of some untitled
components may vary in location)
SYS_FAN1 Primary chassis fan JFP1 Power button/LED
PWR1 CPU power JUSB5 USB connector
CPU1 Processor JUSB6 USB connector
CPU_FAN1 Primary CPU fan JUSB4 USB connector
DIMM1 DIMM 1 (Channel B) JUSB3 Front I/O connector
DIMM2 DIMM 2 (Channel A) JUSB2 Media card reader connector
DIMM3 DIMM 3 (Channel B) JUSB1 Front USB
DIMM4 DIMM 4 (Channel A) BAT1 Real-time-clock battery
ATX1 Main power J1394_1 Front 1394 port connector
SATA1 Primary HDD connector JAUD1 Front audio connector
SATA2 Primary ODD connector PCI_E1 PCIe X16 slot
JBAT1 Clear CMOS header PCI_E2 PCIe X1, slot 1
SATA3 Secondary HDD connector PCI_E3 PCIe X1, slot 2
JPD1 Clear password header PCI_E4 PCIe X1, slot 3
SATA4 Secondary ODD connector
