HP Elite 7100 - Microtower PC User Manual

HP Elite 7100 MT Series 606037-001 page 2

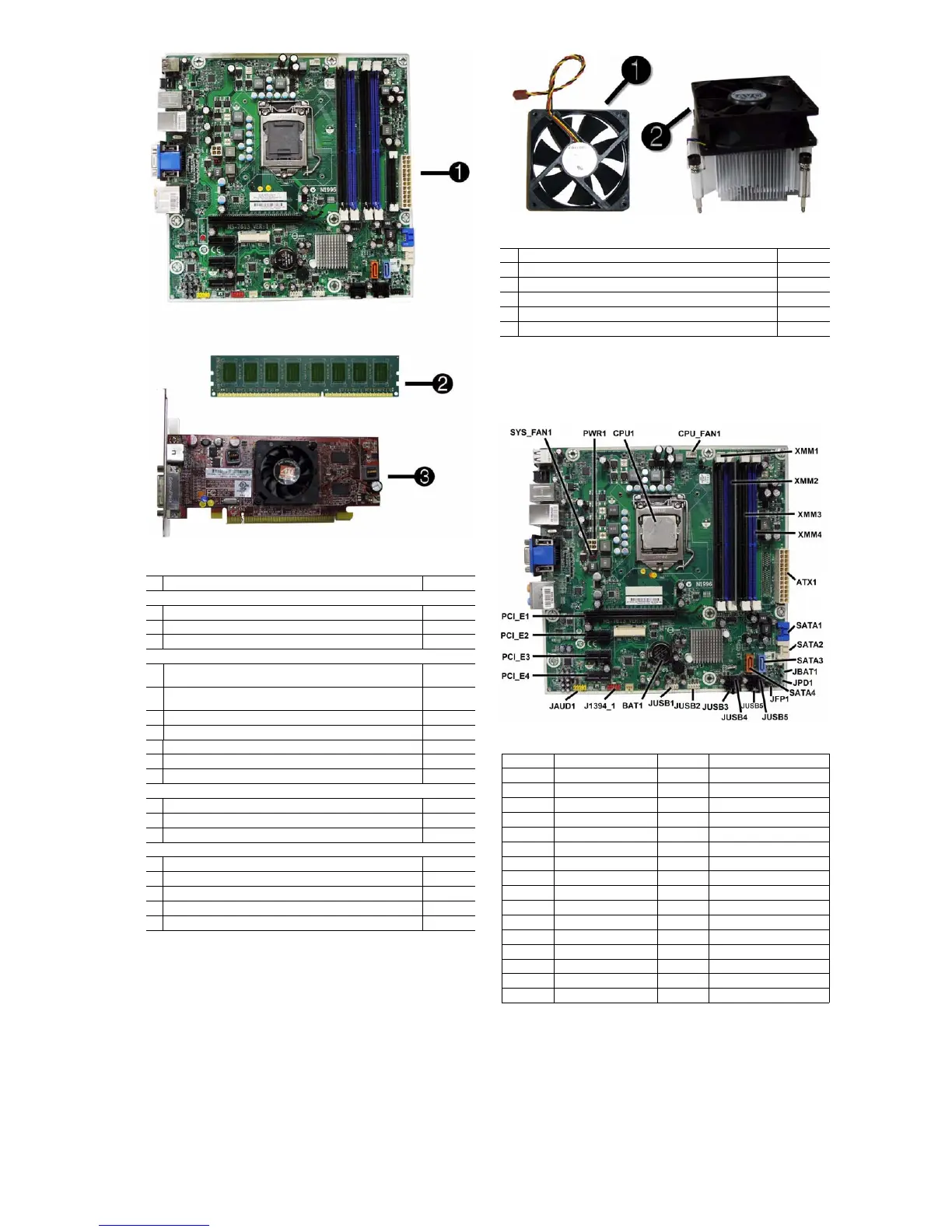

System Board
Standard and Optional Boards
1 System board, includes heat sink backplate 601312-001
Memory modules (DDR3, PC3-10600)**
*4 GB
585157-001
*2 GB
576110-001
21 GB
576109-001
Other boards
3 ATI Radeon HD 4550 256-MB Dual Head graphics adapter (PCIe x16),
includes bracket
538051-001
584217-001
* ATI Radeon HD 4650 1-GB Dual Head graphics adapter (PCIe x16),
includes bracket
578174-001
* nVidia GeForce GT230 1.5-GB graphics adapter, includes bracket 586381-001
* nVidia GeForce G210 512-MB graphics adapter, includes bracket 586382-001
* Intel Pro 1000 PT Gb Ethernet PCIe NIC, includes bracket 490367-001
* LSI PCIe x1 56K International SoftModem, includes bracket 490689-001
* 802.11b/g/n WLAN PCIe adapter 538048-001
Intel Core processors (8-MB L3 cache, 1333-MHz FSB, quad core)
* i7-870, 2.93-GHz processor 586378-001
* i7-860, 2.80-GHz processor 586377-001
* i5-750, 2.66-GHz processor 586376-001
Intel Core processors (4-MB L3 cache, 1333-MHz FSB, dual core)
* i5-670, 3.46-GHz processor 604616-001
* i5-660, 3.33-GHz processor 604615-001
* i5-650, 3.2-GHz processor 604614-001
* i3-540, 3.06-GHz processor 604613-001
* i3-530, 2.93-GHz processor 604612-001
* Not shown
Miscellaneous Parts
1 Chassis fan 449207-001
2 Heat sink with alcohol pad and factory-applied thermal grease 586374-001
* Rubber feet 530593-001
* Mouse, optical, black 537749-001
* Mouse, USB laser 570580-001
* USB-powered speakers 466618-001
*Not shown
LP = Low profile
System Board Connectors and Jumpers (position of some untitled
components may vary in location)
CPU1 Processor JUSB1 Front USB
CPU_FAN1 Primary CPU fan BAT Real-time-clock battery
DIMM4 DIMM 4 (Channel A) CON1 Internal connector
DIMM3 DIMM 3 (Channel B) J1394_1 Front 1394 port connector
DIMM2 DIMM 2 (Channel A) JAUD1 Front audio connector
DIMM1 DIMM 1 (Channel B) PCI_E4 PCIe X1, slot 3
ATX1 Main power PCI_E3 PCIe X1, slot 2
SATA1 Primary HDD connector PCI_E2 PCIe X1, slot 1
SATA2 Primary ODD connector PCI_E1 PCIe X16 slot
SATA3 Secondary HDD connector AUDIO1 External audio connector
SATA4 Secondary ODD connector SYS_FAN1 Primary chassis fan
JFP1 Power button/LED
JVGA_DVI1 Display/DVI connector
JUSB6 USB connector PWR1 CPU power
JUSB5 USB connector LAN_USB1 RJ-45/USB connector
JUSB4 USB connector
I1394_USB1 1394 port/USB connector
JUSB3 Front I/O connector SPDIF SP/DIF connector
JUSB2
Media card reader connector USB1 USB connector
