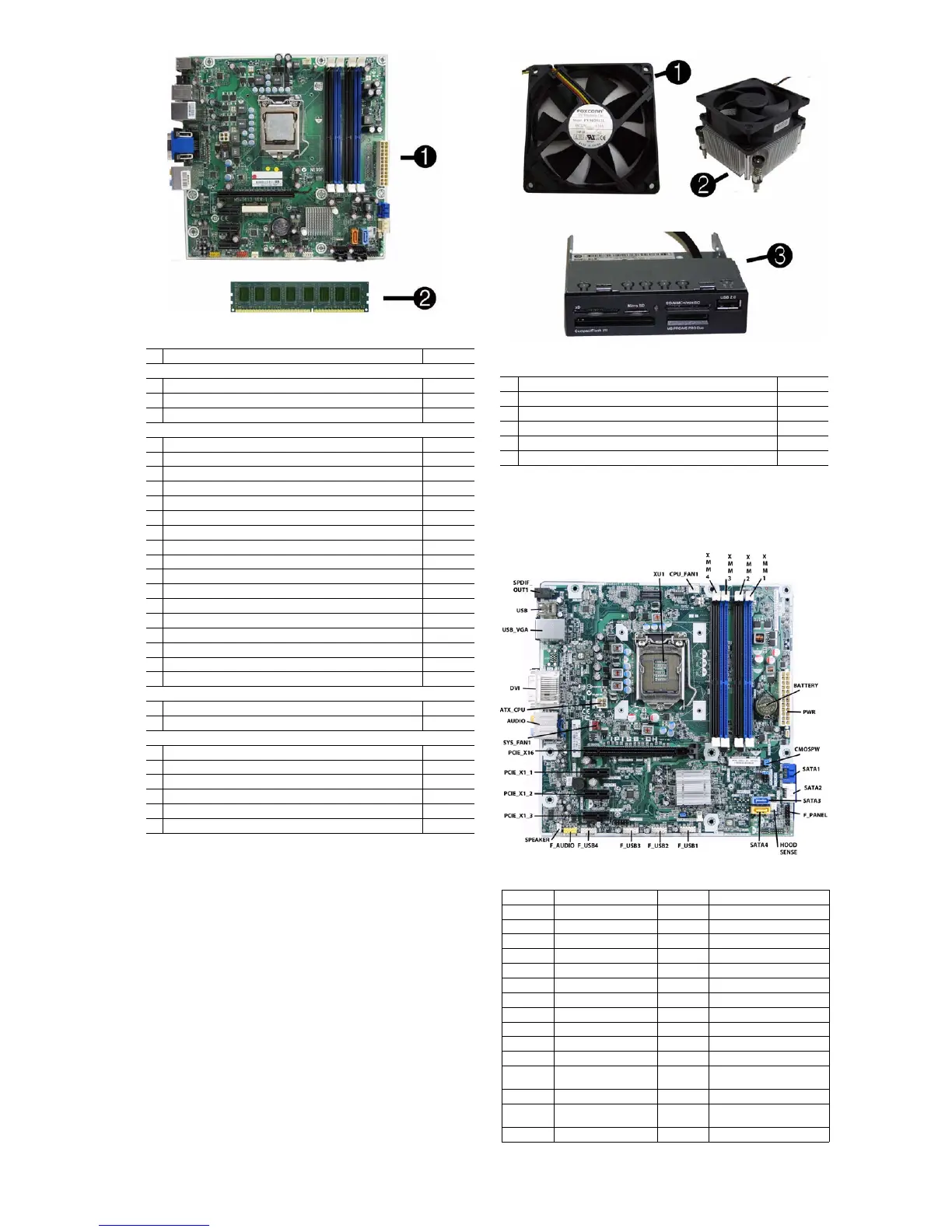

System Board
Standard and Optional Boards
1 System board, includes heat sink backplate 636477-001
Memory modules (DDR3, PC3-10600)
*4 GB
585157-001
*2 GB
635803-001
21 GB
635802-001
Other boards
* ATI Radeon HD 6670 1-GB graphics adapter, full height 640952-001
* ATI Radeon HD 6570 2-GB graphics adapter, full height 638406-001
* ATI Radeon HD 6570 1-GB graphics adapter, full height 638405-001
* ATI Radeon HD 6450 1-GB graphics adapter 638132-001
* ATI Radeon HD 5570 1-GB graphics adapter 615792-001
* ATI Radeon HD 5450 1-GB graphics adapter, standard bracket 601155-001
* ATI Radeon HD 5450 512-MB graphics adapter, standard bracket 617079-001
* ATI Radeon HD 4550 256-MB Dual Head graphics adapter 584217-001
* ATI Radeon HD 4650 1-GB Dual Head graphics adapter 578174-001
* nVidia GeForce GT440 3-GB graphics adapter, full height 638409-001
* nVidia GeForce GT440 1.5-GB graphics adapter, full height 638408-001
* nVidia GeForce GT420 2-GB graphics adapter, includes bracket 632920-001
* nVidia GeForce GT405 1-GB graphics adapter, includes bracket 638407-001
* nVidia GeForce GT320 1-GB graphics adapter, standard bracket 615793-001
* nVidia GeForce GT230 1.5-GB graphics adapter, includes bracket 586381-001
* nVidia GeForce G210 512-MB graphics adapter, includes bracket 586382-001
* Intel Pro 1000 PT Gb Ethernet PCIe NIC, includes bracket 490367-001
Intel Core processors (8-MB L3 cache, 1333-MHz FSB, quad core)
* i7-2600S, 2.8-GHz processor, 65W 638419-001
* i7-2600, 3.4-GHz processor 638415-001
Intel Core processors (4-MB L3 cache, 1333-MHz FSB, dual core)
* i5-2500S, 2.7-GHz processor, 65W 638420-001
* i5-2500, 3.3-GHz processor 638414-001
* i5-2400, 3.1-GHz processor 638413-001
* i5-2400S, 2.5-GHz processor, 65W 640953-001
* i3-2120, 3.3-GHz processor 638412-001
* i3-2100, 3.1-GHz processor 638411-001
* Not shown
Miscellaneous Parts
1 Chassis fan 438741-001
2 Heat sink, Intel Class F, with thermal material 638416-001
3 Card reader, 22-in-1 480032-001
* Rubber feet 370708-001
* Mouse, optical, carbon 444740-001
* Mouse, USB laser 570580-001
*Not shown
LP = Low profile
System Board Connectors and Jumpers (position of some untitled
components may vary in location)
XU1 Processor F_AUDIO Front audio connector
CPU_FAN1 Primary CPU fan SPEAKER Speaker connector
XMM4 DIMM 4 (Channel A) CON1 Internal connector
XMM3 DIMM 3 (Channel B) J1394_1 Front 1394 port connector
XMM2 DIMM 2 (Channel A) PCIE_X1_3 PCIe X1, slot 3
XMM1 DIMM 1 (Channel B) PCIE_X1_2 PCIe X1, slot 2
BATTERY Real-time-clock battery PCIE_X1_1 PCIe X1, slot 1
PWR Main power PCIE_X16 PCIe X16 slot
CMOSPW CMOS password header SYS_FAN1 Primary chassis fan
SATA1 Primary HDD connector AUDIO External audio connector
SATA2 Primary ODD connector ATX_CPU 4-pin power connector
SATA3 Secondary HDD connector
DVI DVI connector
HOOD
SENSE
Hood sensor USB_VGA USB/display connector
SATA4 Secondary ODD connector
USB USB connectors
JUSB1 USB connector SPDIF_OU
T1
SP/DIF connector
JUSB4 Front USB
