HP EliteDisplay E222 Disassembly Instructions

2


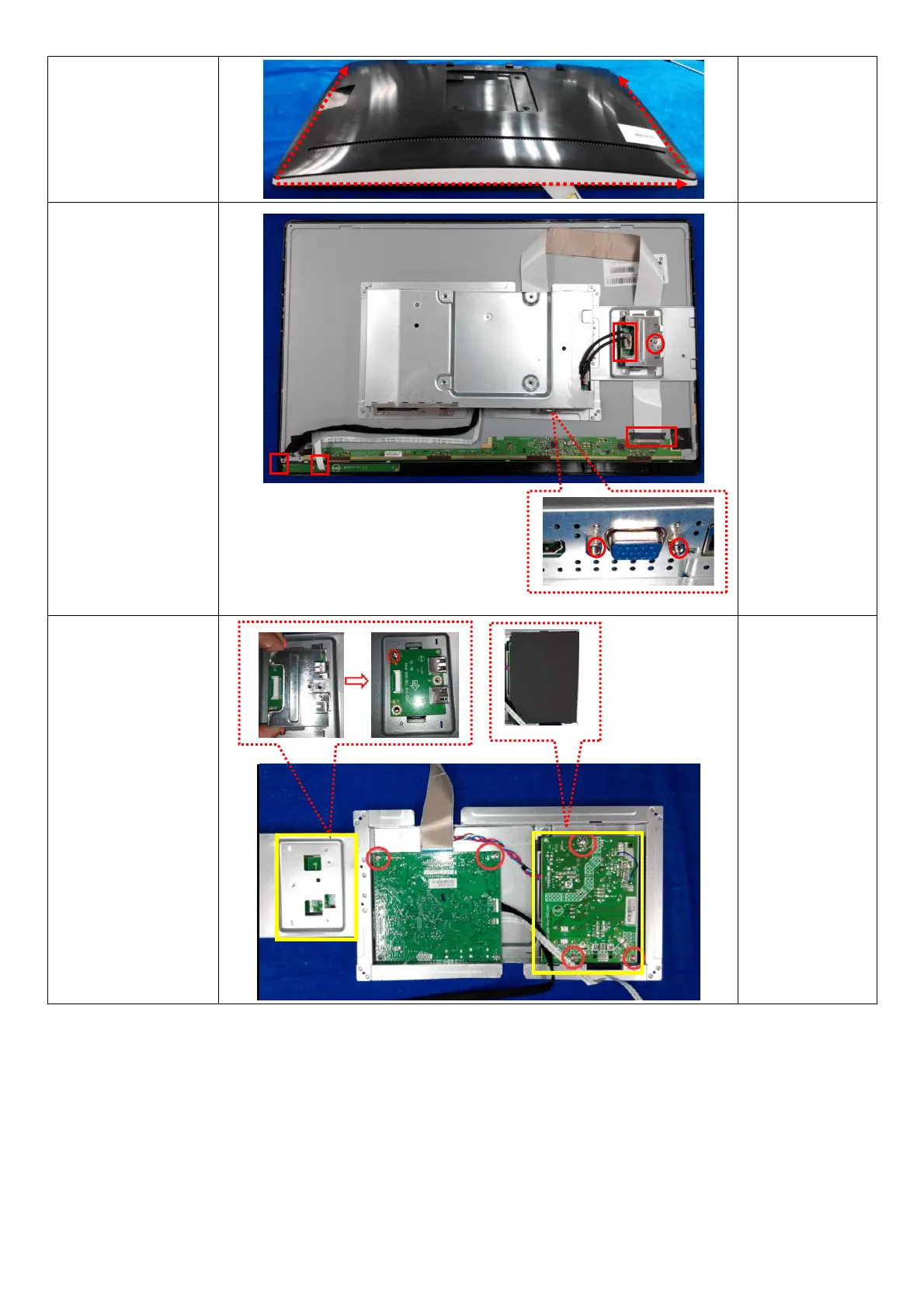

Remove the
REAR_COVER
Use the tool to
remove the Rear
cover
Separate the
MAINFRAME
and PANEL
Tear out all
tapes.
Remove the
screws and
disconnect the
connectors
to separate the
MAINFRAME
and PANEL.
Remove the
MAIN BOARD
and POWER
BOARD
Remove the
MAYLR &
screws and
disconnect the
connectors to
remove the
MAIN BOARD
Power board and
USB board


HP EliteDisplay E222 Specifications

General

3D	No
Pixel pitch	0.248 x 0.248 mm
Screen shape	Flat
Display diagonal	21.5 \
Display technology	LED
Vertical scan range	50 - 75 Hz
Horizontal scan range	30 - 80 kHz
Viewable size, vertical	267.786 mm
Contrast ratio (dynamic)	5000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	476.064 mm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900, 1600 x 900, 1680 x 1050 (WSXGA+)
On/off switch	Yes
Product color	Black, Silver
Country of origin	China
Market positioning	Business
Pivot angle	0 - 90 °
Tilt angle range	-5 - 25 °
Height adjustment	150.92 mm
Panel mounting interface	100 x 100 mm
USB hub version	2.0
USB Type-A downstream ports quantity	2
Sustainability certificates	EPEAT Silver, ENERGY STAR
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	35 W
Power consumption (off)	0.3 W
Annual energy consumption	29 kWh
Power consumption (standby)	0.5 W
Power consumption (typical)	25 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
NVIDIA G-SYNC	-

Weight and Dimensions

Depth (with stand)	189 mm
Height (with stand)	333.5 mm
Weight (with stand)	5270 g
Depth (without stand)	49.8 mm
Width (without stand)	513.7 mm
Height (without stand)	316.9 mm
Weight (without stand)	3260 g
