HP EliteDisplay E223 User Manual

EL-MF877-00 Page 2
Template Revision B
PSG instructions for this template are available at EL-MF877-01
refractory ceramic fibers
Components, parts and materials containing
radioactive substances
0
2.0 Tools Required
List the type and size of the tools that would typically be used to disassemble the product to a point where components
and materials requiring selective treatment can be removed.
Tool Description
Tool Size (if
applicable)
Description #1 SCREW DRIVER(Plum flower head)
Description #2 screwdriver
PH2
Description #3 Hex nut screwdriver
M5
Description #4
Description #5
3.0 Product Disassembly Process
3.1 List the basic steps that should typically be followed to remove components and materials requiring selective treatment:
1.
Quick release Base stand
2. Strip the screws from rear cover so that the rear metal cover can be removed , after be turn back
3. Strip the keypad line and led line and all tapes
4. Strip the screws so that the speaker can be removed
5. To remove the shielding(contain the other material )
6. Strip the screws from PCBA
7. Release all materials
3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items
contained in the product that require selective treatment (with descriptions and arrows identifying locations).

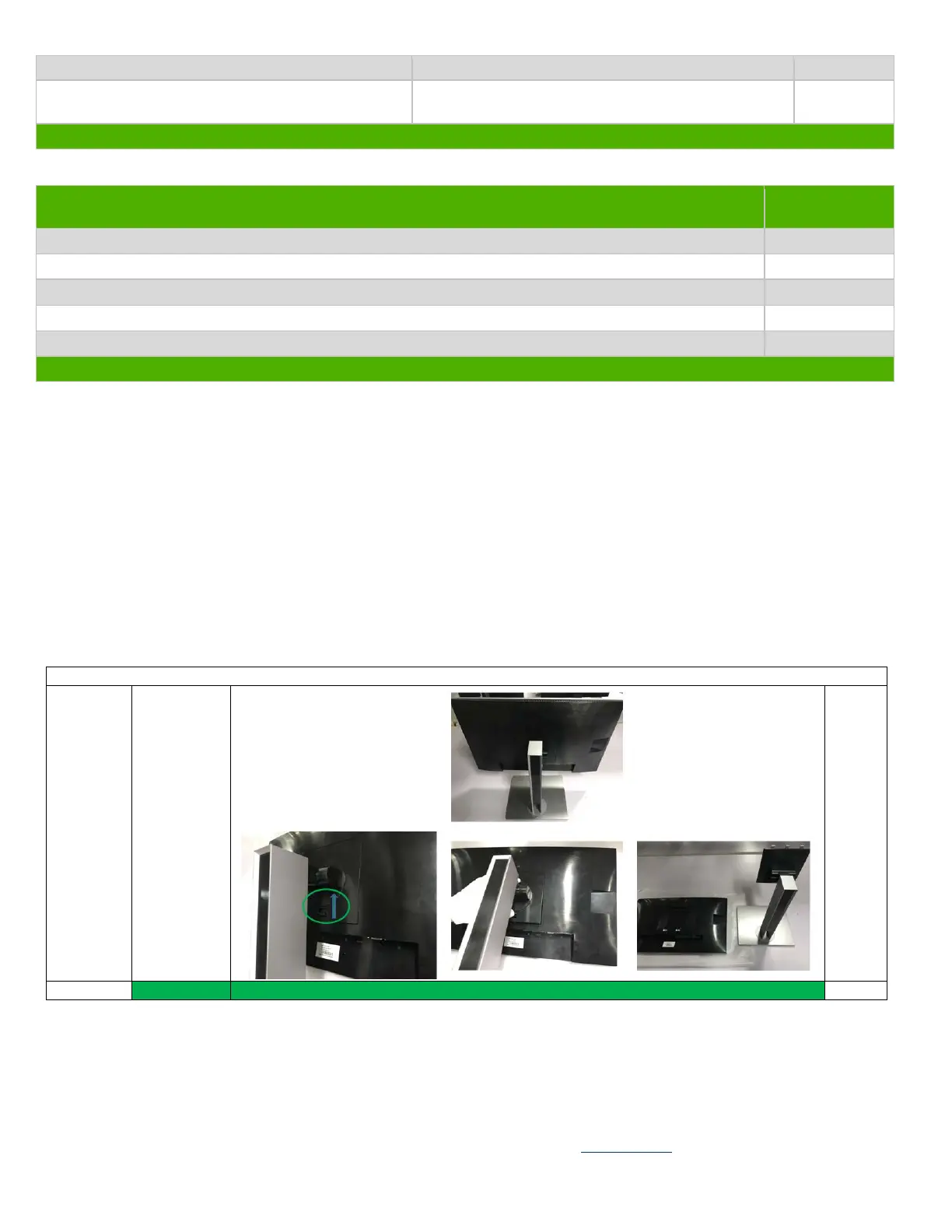

Below action which may easily damage product .please notice it
Take out
the
monitor
and
external
cable from
carton,
then put
them onto
the desk
horizontall
y, separate
stand from
monitor as
picture.
N/A

HP EliteDisplay E223 Specifications

General

3D	No
Pixel pitch	0.274 x 0.274 mm
Screen shape	Flat
Display diagonal	21.5 \
Display technology	LED
Native aspect ratio	16:9
Vertical scan range	50 - 60 Hz
Horizontal scan range	30 - 80 kHz
Viewable size, vertical	267.7 mm
Contrast ratio (dynamic)	5000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	476 mm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+)
Pivot angle	0 - 90 °
Tilt angle range	-5 - 23 °
Number of OSD languages	10
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DEU, DUT, ENG, ESP, FRE, ITA, JPN, POR
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB Type-A downstream ports quantity	2
AC input voltage	100 - 240 V
Power consumption (max)	36 W
Power consumption (off)	0.3 W
Annual energy consumption	25 kWh
Power consumption (standby)	0.5 W
Power consumption (typical)	18 W
Sustainability certificates	EPEAT Gold, ENERGY STAR
Product color	Silver
Country of origin	China
Market positioning	Business
Cables included	AC, DisplayPort, HDMI, VGA
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	205 mm
Height (with stand)	463.7 mm
Weight (with stand)	5260 g
Depth (without stand)	44.6 mm
Width (without stand)	488.3 mm
Height (without stand)	293.3 mm
Weight (without stand)	2750 g
