EL-MF877-00 Page 4
Template Revision B
PSG instructions for this template are available at EL-MF877-01

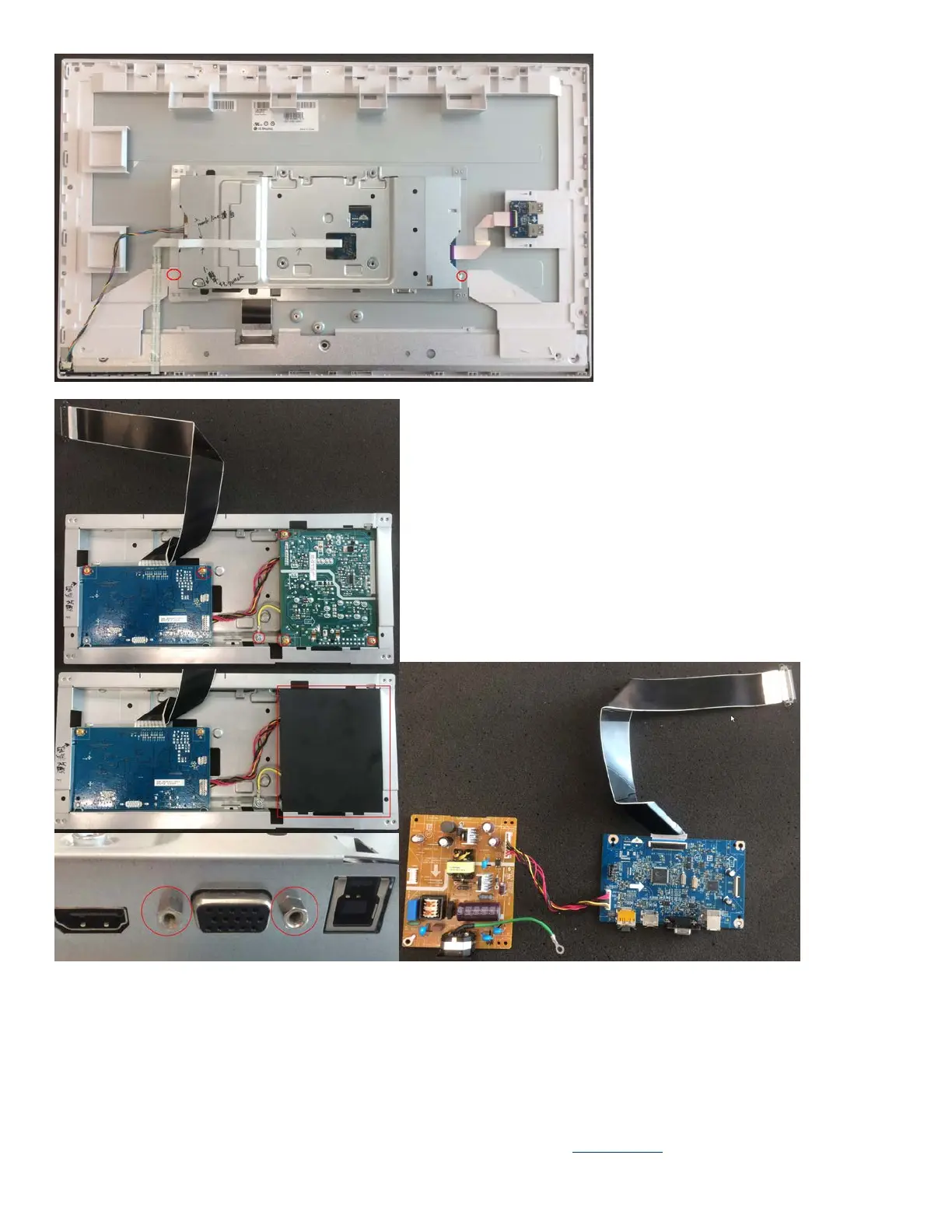

Step 4 : Use tool to release screws on PCBs. Then tear down the gaskets on main chassis and separate all connector on PCBs
Step 5: Use tool to release screws on CTRL BD and take Ctrl BD off from assy-BZL.
