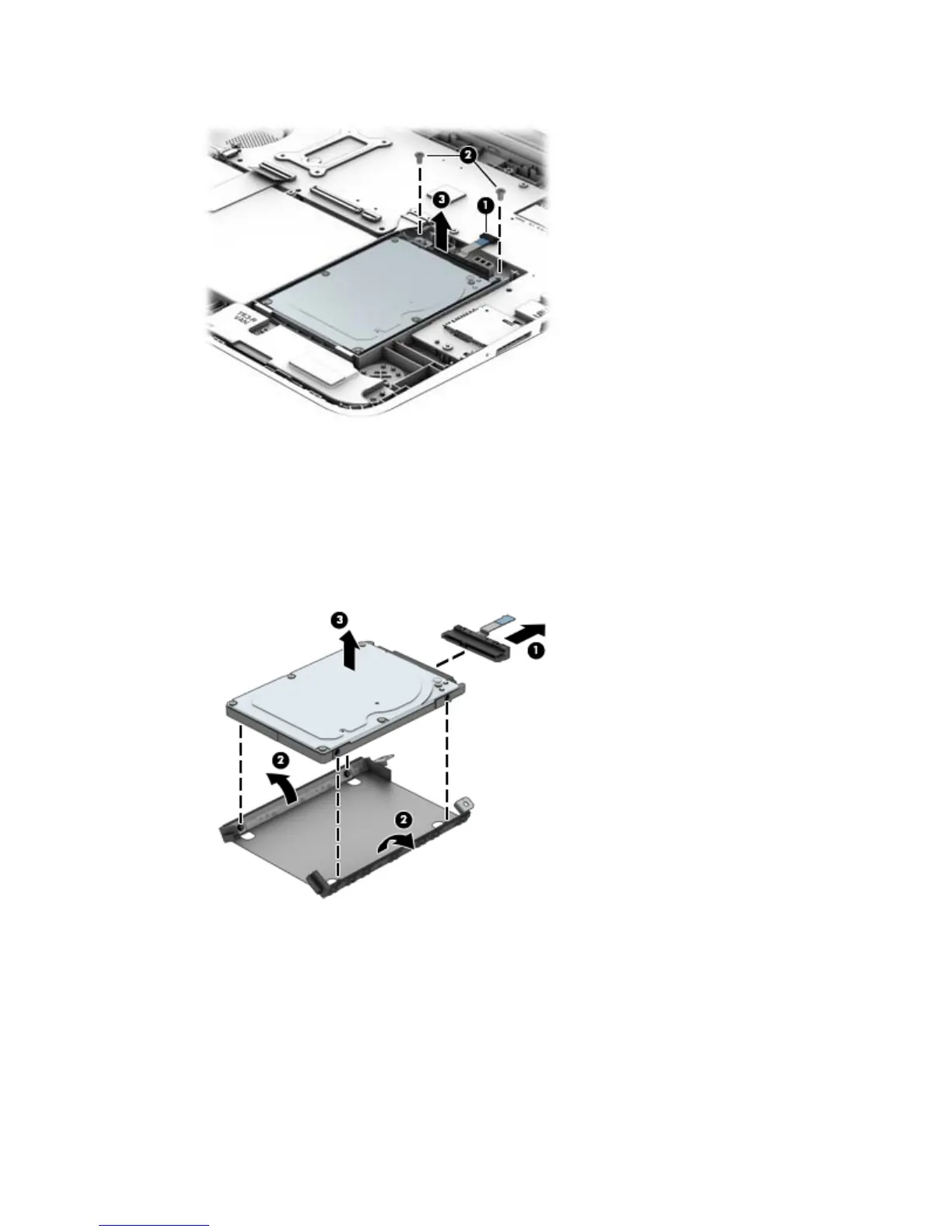

3. Lift the hard drive out of the computer (3).
4. If it is necessary to disassemble the hard drive, perform the following steps:
a. Disconnect the hard drive connector cable (1) from the hard drive.
b. Flex the sides of the bracket to remove the pegs from the holes in the hard drive (2).
c. Remove the hard drive bracket (3) from the hard drive.
The hard drive bracket and hard drive connector cable are available in the Hard Drive Hardware Kit,
spare part number 768020-001.
Reverse this procedure to install the hard drive.
Component replacement procedures 35
