HP Kayak XU Technical Reference Manual

49
3 Interface Boards and Mass-Storage Drives
Connectors and Sockets

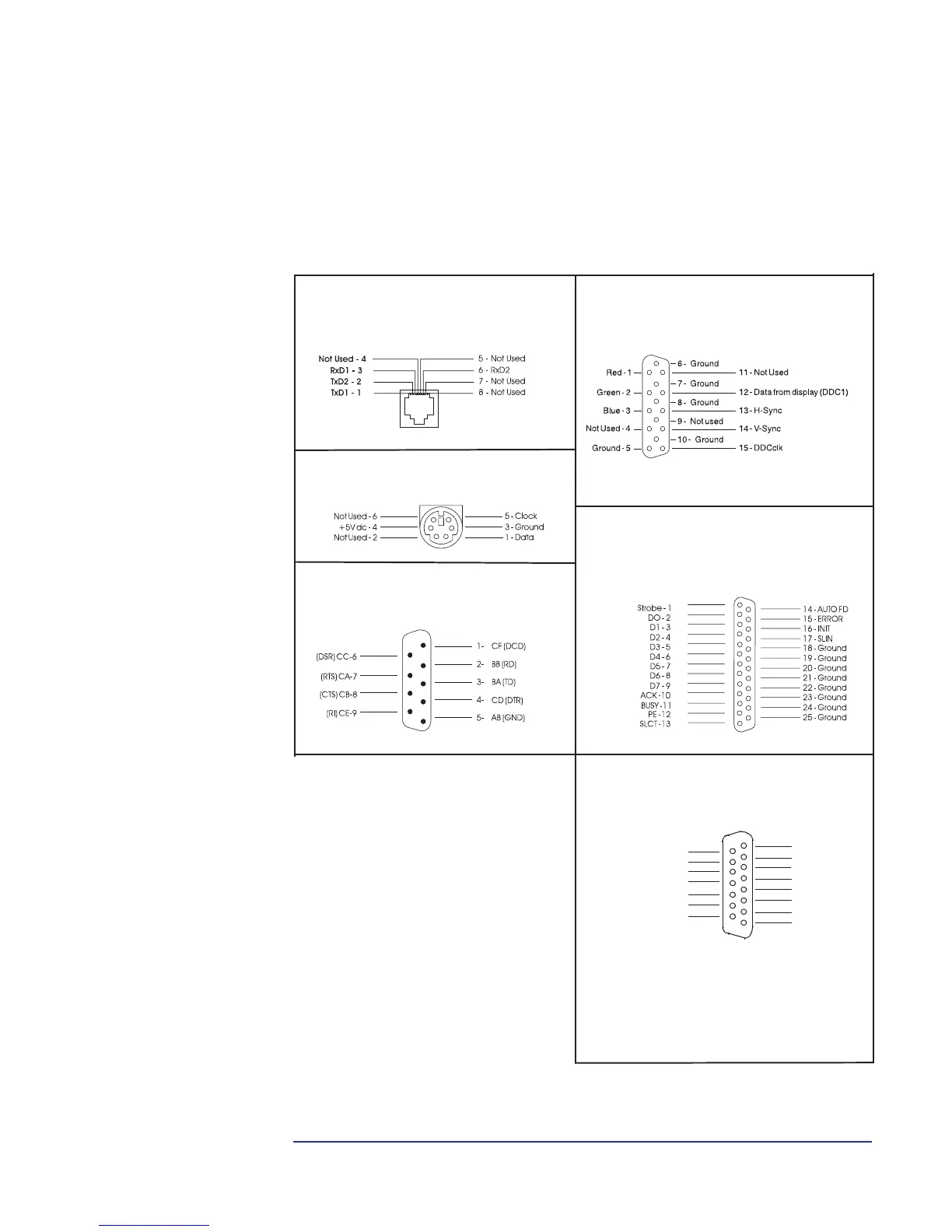

Socket Pin Layouts
Ethernet UTP Connector
Keyboard and Mouse Connector
Serial Port Connector
VGA Connector
Parallel Port Connector
MIDI/Joystick Connector
8- +5V
7- A-2
6- A-Y
5- GND
1-+5V
2-A-1
3-A-X
4- GND
+5V -9
B-1 - 10
B-X-11
MIDI-OUT-12
B-2 - 14
B-Y - 13
MIDI-IN-15
