2 How to Install Accessories Inside Your PC Workstation
Installing Mass Storage Devices
40 English

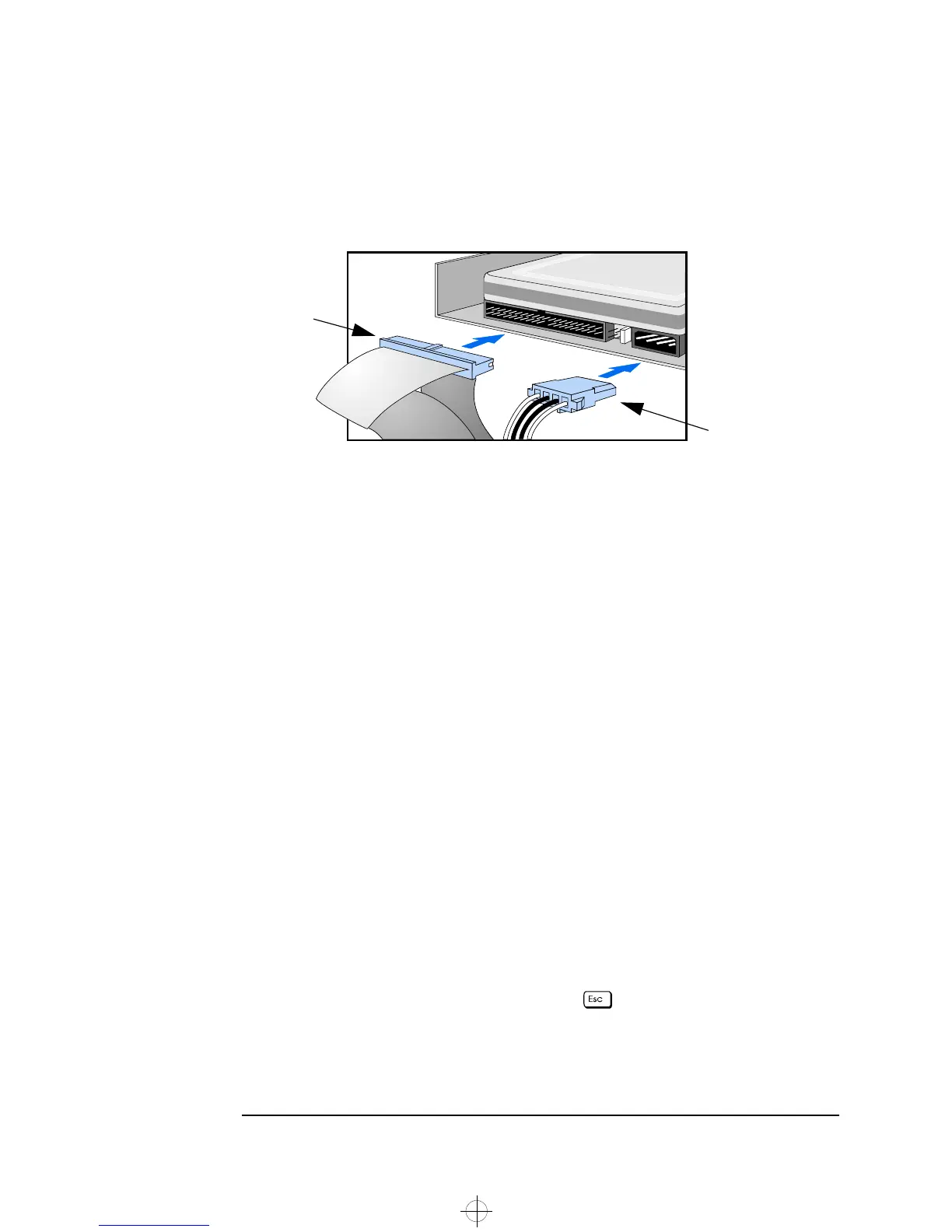

10 Connect the data and power cables to the rear of the device. (The
connectors are shaped to go in one way only.)
11 Slide the power supply back into position, and tighten the four self-
retaining screws (see page 25).
12 Replace the HP UltraFlow airflow guide and reconnect the fan to the
system board (see the illustration on page 24).
13 Install any other accessories before replacing the cover and
completing the installation.
14 Follow the instructions below to complete the installation.
Completing the Installation of a Hard Disk Drive
When a SCSI Hard Disk
Drive Is Installed
1 Switch on the computer.
2 To ensure compatibility, use the FDISK utility to delete any
partitions on the new hard disk.
3 Reboot the computer.
Refer to the operating system documentation for information on
formatting a drive.
When an IDE Drive
Is Installed
1 Switch on the computer.
2 To display the device in POST, press while the PC Workstation
reboots.
Power Cable
Data Cable
napa.bk : napa-ug2.fb4 Page 40 Monday, August 4, 1997 7:20 PM
