HP L1906 Service Manual

19" LCD Color Monitor HP L1906
46

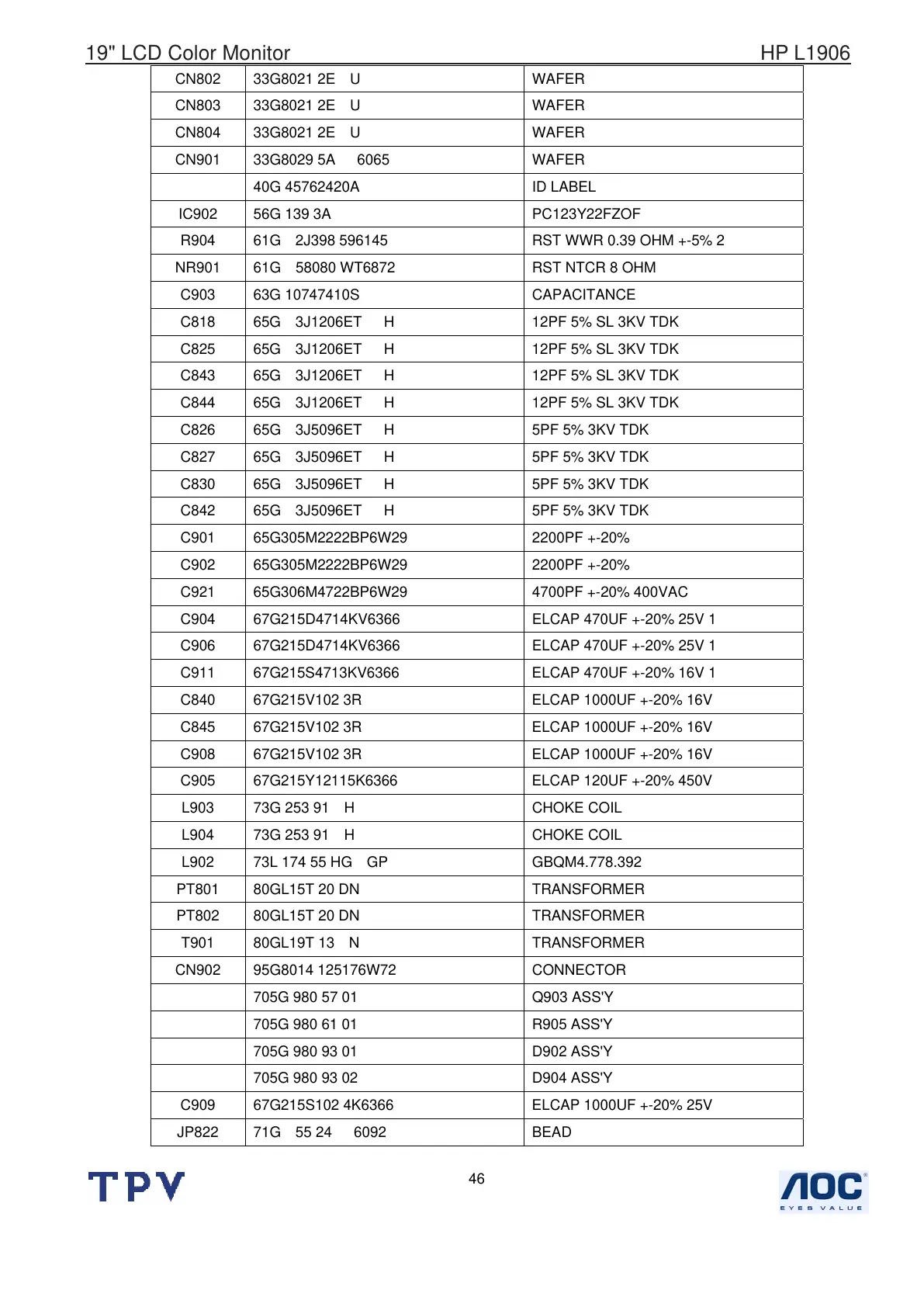

CN802 33G8021 2E U WAFER
CN803 33G8021 2E U WAFER
CN804 33G8021 2E U WAFER
CN901 33G8029 5A 6065 WAFER
40G 45762420A ID LABEL
IC902 56G 139 3A PC123Y22FZOF
R904 61G 2J398 596145 RST WWR 0.39 OHM +-5% 2
NR901 61G 58080 WT6872 RST NTCR 8 OHM
C903 63G 10747410S CAPACITANCE
C818 65G 3J1206ET H 12PF 5% SL 3KV TDK
C825 65G 3J1206ET H 12PF 5% SL 3KV TDK
C843 65G 3J1206ET H 12PF 5% SL 3KV TDK
C844 65G 3J1206ET H 12PF 5% SL 3KV TDK
C826 65G 3J5096ET H 5PF 5% 3KV TDK
C827 65G 3J5096ET H 5PF 5% 3KV TDK
C830 65G 3J5096ET H 5PF 5% 3KV TDK
C842 65G 3J5096ET H 5PF 5% 3KV TDK
C901 65G305M2222BP6W29 2200PF +-20%
C902 65G305M2222BP6W29 2200PF +-20%
C921 65G306M4722BP6W29 4700PF +-20% 400VAC
C904 67G215D4714KV6366 ELCAP 470UF +-20% 25V 1
C906 67G215D4714KV6366 ELCAP 470UF +-20% 25V 1
C911 67G215S4713KV6366 ELCAP 470UF +-20% 16V 1
C840 67G215V102 3R ELCAP 1000UF +-20% 16V
C845 67G215V102 3R ELCAP 1000UF +-20% 16V
C908 67G215V102 3R ELCAP 1000UF +-20% 16V
C905 67G215Y12115K6366 ELCAP 120UF +-20% 450V
L903 73G 253 91 H CHOKE COIL
L904 73G 253 91 H CHOKE COIL
L902 73L 174 55 HG GP GBQM4.778.392
PT801 80GL15T 20 DN TRANSFORMER
PT802 80GL15T 20 DN TRANSFORMER
T901 80GL19T 13 N TRANSFORMER
CN902 95G8014 125176W72 CONNECTOR
705G 980 57 01 Q903 ASS'Y
705G 980 61 01 R905 ASS'Y
705G 980 93 01 D902 ASS'Y
705G 980 93 02 D904 ASS'Y
C909 67G215S102 4K6366 ELCAP 1000UF +-20% 25V
JP822 71G 55 24 6092 BEAD

HP L1906 Specifications

General

3D	No
Pixel pitch	0.294 x 0.294 mm
Display diagonal	19 \
Display resolution	1280 x 1024 pixels
Vertical scan range	50 - 76 Hz
Horizontal scan range	30 - 83 kHz
Viewing angle, vertical	130 °
Contrast ratio (dynamic)	-
Contrast ratio (typical)	500:1
Display number of colors	16.78 million colors
Viewing angle, horizontal	140 °
Display brightness (typical)	270 cd/m²
Supported graphics resolutions	1280 x 1024 (SXGA)
On/off switch	Yes
DVI-D ports quantity	0
Tilt angle range	0 - 15 °
Panel mounting interface	100 x 100 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	37 W
Power consumption (standby)	2 W
Power consumption (typical)	33 W
Certification	CISPR, VCCI, CSA, TUV, GS, CCC, MIC, FCC, UL, GOST, SASO
Product color	Black, Silver
Country of origin	China
Market positioning	Business
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Package weight	7000 g
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	203 mm
Height (with stand)	427 mm
Weight (with stand)	5300 g
Depth (without stand)	59 mm
Width (without stand)	422 mm
Height (without stand)	362 mm
Weight (without stand)	- g
