2. Slide the top cover plate on the back of the monitor up approximately 12mm (1/2 inch) to access
two of the rear panel screws. Remove the cable connection cover plate by pressing the two
ribbed areas at the top of the cover (1) and pulling the cover straight down and off the monitor
(2) to access two more of the rear panel screws.

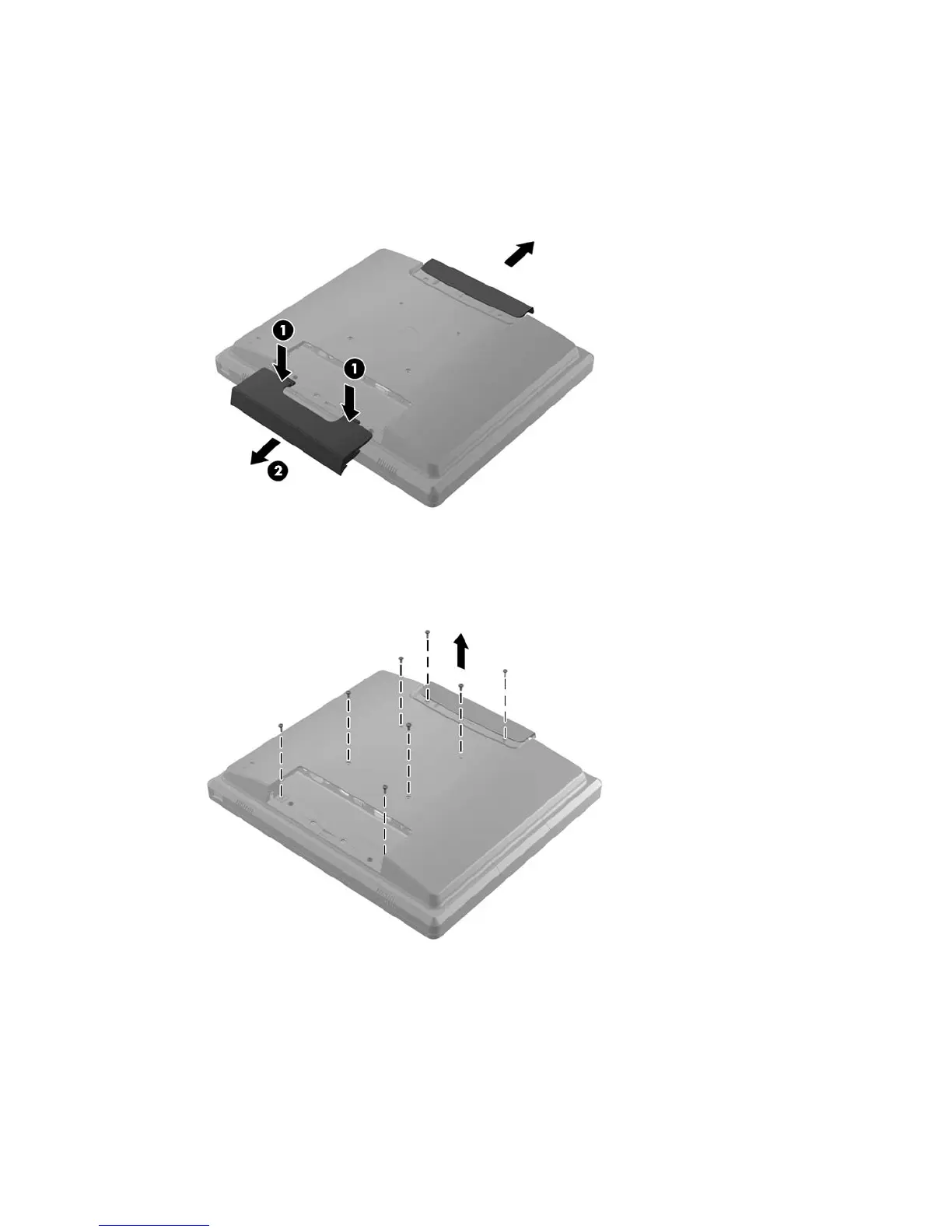

Figure 2-4 Removing the Top and Bottom Cover Plates
3. Remove the eight screws that attach the rear panel to the monitor.
Figure 2-5 Removing the Rear Panel Screws
Installing Optional USB Modules 5
