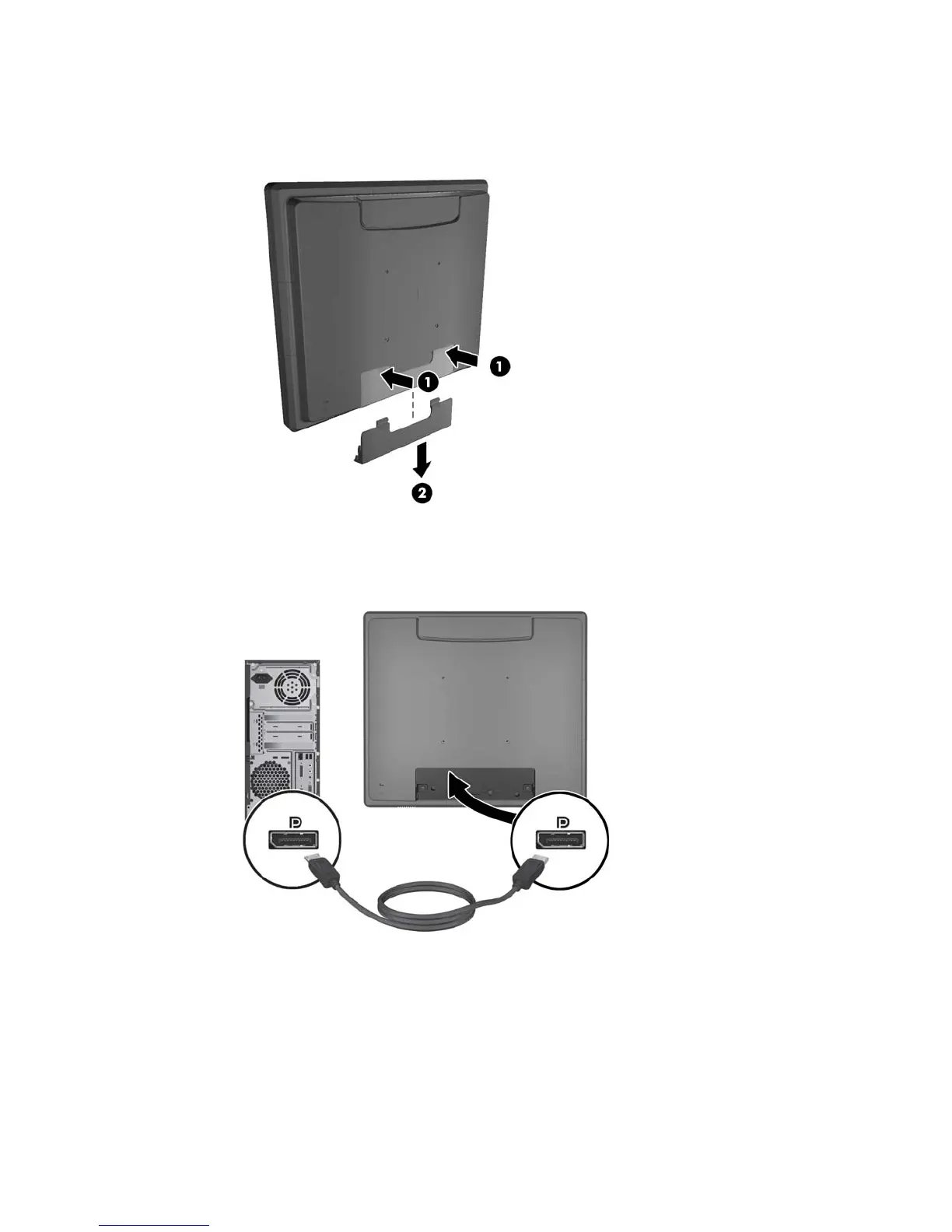

2. Remove the cable connection cover on the rear of the monitor by pressing the two ribbed areas
at the top of the cover (1) and pulling the cover straight down and off the monitor (2).
Figure 2-20 Removing the Cable Connection Cover Plate
3. Depending on your configuration, connect either the DisplayPort, DVI, or VGA video cable
between the PC and the monitor.
●
Figure 2-21 Connecting the DisplayPort Video Cable
14 Chapter 2 Setting Up the Monitor
